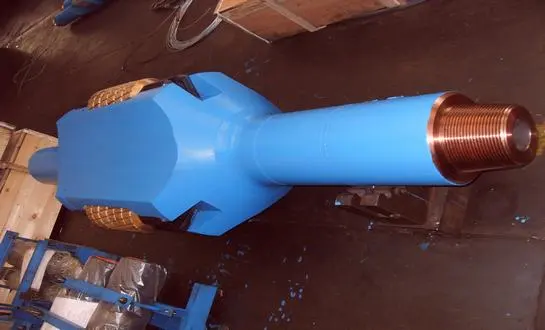

Essential Maintenance Tips for Roller Reamers
A roller reamer should be checked after every run, not just when a problem is visible. Small changes in the condition of the cutter, bearing movement, body wear or connecting surfaces might be important indicators of how the tool performed downhole.
Cleaning and Inspection Protocols
Clean the roller reamer as soon as practicable once it is pulled out of the hole. Clean body, cutter zones, retention elements and interface surfaces to remove drilling mud, cuttings and other residues Watch particularly for places where debris might build up around bolts, pins, cutting blocks, or other retaining elements.
Public roller reamer maintenance guidelines also encourages cleaning the tool before to disassembly and inspection, particularly in the vicinity of fasteners and difficult-to-reach places.
After cleaning, check the instrument thoroughly. Check cutters for broken teeth, excessive wear, damaged inserts or loss of gage. Inspect the cutter retention system, bearing regions, body and threaded connections for obvious damage. Cracks, distortion, severe erosion or broken threads must not be viewed as a minor cosmetic problem.
Where possible keep a record of the examination of each tool. Recording cutter status, observed damage, and repair or replacement work may help detect recurrent wear patterns and determine if the tool is appropriate for another run.
Bearing Maintenance
The condition of the bearings directly affects the cutter rotation and reaming performance. But the bearing design of the roller reamer influences maintenance needs.
Some roller reamers include sealed or pressure-equalized lubricated bearing systems that maintain lubrication but do not allow drilling fluid and cuttings to come in contact with the bearing surfaces. Other designs may have various bearing and lubrication setups.
So don’t automatically assume every roller reamer has to be opened and re-greased the same manner. See the manufacturer’s maintenance instructions for the individual tool and cutter assembly.
During inspection, check for anomalous cutter movement, rough spinning, excessive play, broken seals, or other signs of bearing wear. If the bearing assembly is beyond the manufacturer's reuse standards, it is better to redress or replace the component rather than restore it to service.
Also keep spare cutter or bearing assemblies clean and dry. Manufacturer maintenance guidelines suggests that reusable components be stored in a protected environment and that used cutter assemblies be properly preserved before to storage.
Cutter Rotation and Replacement
Cutter wear should be assessed based on actual tool condition, not on a pre-determined life cycle. The optimal strategy relies on the cutter design, formation, drilling circumstances, and inspection standards of the manufacturer.
Examine cutting surfaces for uneven wear, broken teeth, damaged inserts, or other variations that might influence hole gage and cutting action. Formation-matched cutter designs are often utilized since soft, medium-hard and hard formations impose varied demands on the cutting structure.
When a cutter or cutter assembly exceeds its service limit, the cutter or cutter assembly must be replaced or redressed in accordance with the authorized process. Some kinds of roller reamers include replacement cutters or cartridges, which may be repaired on the rig site. Other designs have unique retention systems with dedicated processes.
Proper installation is as important as the replacement. Use the appropriate components, follow the manufacturer's order for assembly, and apply the necessary torque to any bolts or connections. Do not use jury-rigged repairs that may impact cutter retention or tool integrity.
Common Wear Patterns: Early Detection and Prevention
The roller reamer will always wear since it is working against the formation, but one can typically recognize aberrant wear before it becomes a major tool issue. Comparing cutter condition, bearing performance, body wear and drilling performance may assist identify whether the wear is attributable to the formation or operating circumstances.
Identifying Wear Indicators
Watch for these frequent symptoms of wear in your roller reamer:
- Rapid or wear of the cutter, uneven
- Damaged or chipped cutting parts
- Uneven cutter action or bearing play
- Erosion or washing away of the body
- Components of retention damaged
- Lowered cutter gage
- Contact surfaces damaged or worn
One wear indication may not necessarily point to the reason. For example, formation features may affect cutter wear and vibration or side loading may contribute to mechanical stress. Therefore, the examination should be performed on the whole tool and not on one single component.
Preventing Accelerated Wear
Tailoring operating techniques to the particular roller reamer and drilling application.
First, maintain the weight on the reamer and the rotational speed within the working range advised by the manufacturer. Do not use a general RPM or load restriction for all tools since specifications are different for different designs and sizes. For example, commercial roller reamer devices provide model-specific speed, temperature and cutter rotation restrictions.
Second, observe drilling behavior for indicators of excessive vibration, stick-slip, torque variation, or unstable cutter engagement. Roller reamers are commonly used to help in borehole conditioning and to minimize torque or vibration but their success will still be dependent on the overall BHA and drilling parameters.
Finally, verify proper drilling fluid conditions for the application. Excessive solids, inefficient cuttings movement or incorrect fluid characteristics might result in increased contamination and wear on parts exposed to downhole conditions. Fluid needs should be considered in the light of the particular reamer and bearing design.
Adapting to Formation Changes
The wear of the cutter is greatly influenced by formation variations. A cutter arrangement that is ideal for a softer formation may not be ideal when the assembly encounters harder or more abrasive rock.
Typical commercial roller reamer designs have numerous cutter types for various formation ranges. For example, the manufacturer material details distinct cutter settings for soft forms, medium to hard formations, and extremely hard or abrasive formations.
If the formation changes in a section, check the cutter condition and the drilling reaction but do not continue with the same assumptions. Signs indicating the tool setup or operating conditions should be reviewed include higher torque, less effective reaming, more rapid cutter wear, or vibration variations.
Selecting the Right Lubricants for Optimal Performance
Lubrication is vital, but the first thing to ask is whether that particular roller reamer design needs field lubrication at all. Lubricant selection and maintenance methods should be based on the manufacturer’s pertinent documentation. Sealed-bearing and pressure-equalized systems are designed differently from serviceable bearing arrangements.
Understanding Lubricant Properties
If your roller reamer calls for lubrication, consider the bearing system and the downhole environment rather than just viscosity when you pick a lubricant.
Important factors may include:
- Compatibility with bearing and sealing materials
- Range of Temperature
- Load bearing capacity
- Contamination resistance
Compatibility with the appropriate drilling environment
Rather than a general lubricant advice, the manufacturer’s specification should be the primary consideration in lubricant selection. If you use the wrong product or mix incompatible lubricants, or change the lubrication process without permission, you will cause issues, not increase component life.
Application-Specific Lubricant Selection
Some high temperature or severe drilling settings might add some extra demands to lubricants, seals and bearing systems. The right answer relies nevertheless on the structure of the gadget.
For sealed-bearing roller reamers, the sealing and pressure-equalization system is one aspect of the whole bearing-life strategy. It is designed to minimize the ingress of drilling fluid and debris and yet hold the lubrication necessary to the bearing assembly.
For serviceable designs utilize only the lubricant and manner of application recommended for the tool. Don’t think that the more lubrication you use, the better. What is necessary and when, should be defined in the maintenance method.
Implementing a Lubrication Schedule
The lubrication plan should be based on the actual roller reamer design and the maintenance recommendations of the manufacturer.
Maintain records of lubrication work together with inspection and redress records for tools having repairable lubrication systems. For sealed or pressure equalized assemblies, emphasis instead on verifying the condition of the seals, bearing behavior, and other components as provided for in the corresponding maintenance method.
After cleaning and inspection, reusable components should be safeguarded from moisture, dirt and other contamination during storage. Manufacturer maintenance documents give particular examples of cleaning, drying, preservation and storage techniques for cutter assemblies.
Conclusion
You can prolong the life of a roller reamer largely by preventing unnecessary wear and by making maintenance choices based on the actual state of the instrument. Clean the reamer after each run and examine the cutters and retention components closely. Assess the condition of the bearings based on the tool design. Replace or redress worn components before they start to affect reaming performance.
Operating parameters matter too. The general limitations should be examined in conjunction with the manufacturer’s requirements, as well as weight, rotation speed, vibration, formation characteristics, and drilling-fluid conditions.
It is just as crucial for operators and drilling contractors to choose the right roller reamer. Factors to consider before deployment include cutter design, BHA location, hole size, formation characteristics and maintenance needs.
