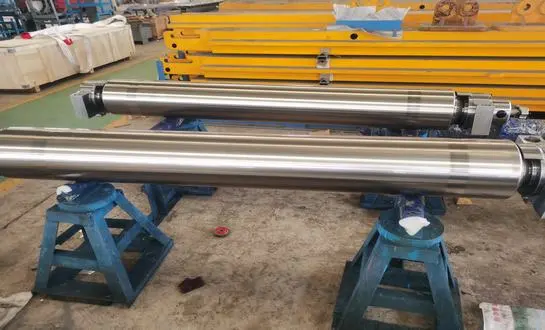

From Raw Material to Precision Machining: The Work Roll Journey
The creation of a predominant work roll starts with cautious fabric choice. High-quality amalgam steels are ordinarily chosen for their strength and execution characteristics. These materials experience a arrangement of changes some time recently getting to be the wrapped up product.
Raw Material Selection and Initial Forging
The process starts with selecting premium-grade steel ingots or billets. These are heated to high temperatures in furnaces, making them malleable for the initial forging process. Forging helps to improve the material's grain structure, enhancing its strength and resilience.
Heat Treatment for Optimal Properties
After manufacturing, the item experiences a significant warm treatment prepare. This step includes carefully controlled warming and cooling cycles to accomplish the wanted hardness, durability, and microstructure. The particular warm treatment parameters are custom-made to the roll's aiming application, whether it's for hot rolling or cold rolling operations.
Rough Machining and Contouring
Once heat-treated, the work roll is subjected to initial machining operations. This stage involves removing excess material and creating the basic shape of the roll. Advanced CNC lathes and milling machines are employed to ensure precise dimensional control.
Precision Grinding and Surface Finishing
The final machining stage involves precision grinding to achieve the exact dimensions and surface finish required for optimal performance. Specialized grinding machines with micron-level accuracy are used to create the perfect cylindrical shape and surface texture needed for efficient rolling operations.
Surface Treatments and Coatings
Some work rolls may receive additional surface treatments or coatings to enhance their wear resistance, corrosion protection, or friction characteristics. These treatments can significantly extend the operational life of the roll and improve the quality of the rolled products.
Quality Control Checks in Work Roll Manufacturing
Rigorous quality control is essential throughout the work roll manufacturing process to ensure that each roll meets the exacting standards required for efficient and precise metal rolling operations.
Material Composition Analysis
The journey of quality control begins with a thorough analysis of the raw material's chemical composition. Advanced spectrometers are used to verify that the alloy meets the specified requirements, ensuring the foundation for a high-performance product.
Non-Destructive Testing (NDT)
Throughout the manufacturing process, various non-destructive testing methods are employed to detect any internal flaws or inconsistencies in the work roll. These may include:
- Ultrasonic Testing (UT): To identify internal defects or discontinuities
- Magnetic Particle Inspection (MPI): For detecting surface and near-surface flaws
- Eddy Current Testing: To check for surface imperfections and material properties
Dimensional and Geometric Inspections
Precision measurements are taken at multiple stages of production to ensure that the product meets the specified dimensions and geometric tolerances. Advanced metrology equipment, including coordinate measuring machines (CMMs) and laser scanners, are utilized for these critical checks.
Hardness and Microstructure Evaluation
The hardness profile of the product is carefully measured to verify that it meets the required specifications. Additionally, metallographic examinations are conducted to assess the microstructure of the material, ensuring that the heat treatment process has achieved the desired results.
Surface Roughness and Texture Analysis
The surface finish of the product is crucial for its performance in the rolling mill. Sophisticated surface profilometers are used to measure and analyze the surface roughness and texture, ensuring that it falls within the specified parameters for optimal rolling results.
Dynamic Balance Testing
Before final approval, each work roll undergoes dynamic balance testing. This crucial step ensures that the roll will operate smoothly at high speeds without vibration, which could affect the quality of the rolled product or cause premature wear of the roll.
Balancing Hardness and Toughness in Work Roll Design
One of the most challenging aspects of work roll manufacturing is achieving the optimal balance between hardness and toughness. This balance is critical for ensuring both the performance and longevity of the roll in demanding rolling mill environments.
The Hardness-Toughness Trade-off
Hardness is essential for wear resistance and maintaining the roll's surface quality over extended periods of use. However, excessive hardness can lead to brittleness, making the roll susceptible to cracking or chipping under the high stresses of rolling operations. Conversely, while toughness helps prevent catastrophic failure, too much toughness can result in rapid wear and deformation of the roll surface.
Tailored Alloy Compositions
Metallurgists and materials engineers work diligently to develop alloy compositions that provide the ideal combination of properties for specific rolling applications. These may include:
- High-chromium steels for enhanced wear resistance
- Molybdenum additions for improved high-temperature strength
- Vanadium for grain refinement and increased toughness
Advanced Heat Treatment Techniques
Sophisticated heat treatment processes are employed to create optimal microstructures within the work roll. These may include:
- Differential hardening to create a hard surface with a tougher core
- Controlled cooling rates to achieve specific phase transformations
- Tempering cycles to fine-tune the balance between hardness and toughness
Surface Engineering Solutions
In some cases, surface engineering techniques are used to enhance the work roll's performance without compromising its overall toughness. These may include:
- Nitriding or carburizing for increased surface hardness
- Application of wear-resistant coatings
- Texturing of the roll surface for improved lubrication retention
Continuous Improvement and Research
The quest for the perfect balance between hardness and toughness is an ongoing process. Manufacturers continually invest in research and development to improve work roll performance and durability. This includes:
- Collaboration with academic institutions for fundamental materials research
- Field testing and analysis of roll performance in actual mill conditions
- Development of new alloys and heat treatment processes
Conclusion
In conclusion, the fabricating of work rolls for rolling plants is a advanced handle that combines metallurgical ability, accuracy designing, and thorough quality control. From the starting determination of crude materials to the last adjusting of hardness and durability, each step is significant in creating rolls that can withstand the requesting conditions of cutting edge rolling plants whereas conveying prevalent item quality. As innovation proceeds to development, we can anticipate encourage advancements in work roll plan and fabricating, driving to indeed more productive and beneficial rolling operations over different metal handling businesses.
