Types of Hole Openers: Choosing the Right Tool
Selecting the appropriate hole opener is paramount to the success of any HDD project. The choice depends on several factors, including soil conditions, desired hole diameter, and project requirements. Let's explore the main types of hole openers and their applications:
Barrel Reamers
Barrel reamers are versatile tools suitable for a wide range of soil conditions. They feature a cylindrical body with cutting teeth or blades arranged in a spiral pattern. This design allows for efficient removal of cuttings and helps maintain hole stability. Barrel reamers are particularly effective in soft to medium formations and can be used in both forward and reverse directions.
Fly Cutters
Fly cutters, also known as wing reamers, are designed for use in softer formations. They consist of a central body with extending arms or wings that can be adjusted to achieve the desired hole diameter. Fly cutters excel in clay, sand, and other loose soils, offering high cutting speeds and efficient material removal.
Rock Reamers

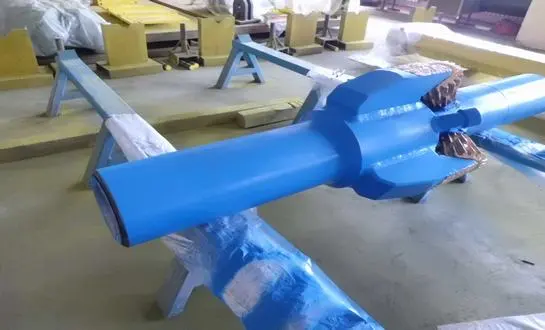

For hard rock formations, rock reamers are the tool of choice. These robust hole openers feature tungsten carbide inserts or roller cones designed to withstand the rigors of cutting through tough rock. Rock reamers come in various configurations, including tri-cone and PDC (Polycrystalline Diamond Compact) designs, each optimized for specific rock types and drilling conditions.
Combination Reamers
Combination reamers incorporate features from multiple reamer types, offering versatility in mixed soil conditions. These hole openers can handle transitions between soft and hard formations without the need for tool changes, improving overall drilling efficiency.
When selecting a hole opener, consider the following factors:
- Soil composition and hardness
- Required hole diameter
- Available torque and pullback force of the HDD rig
- Project timeline and budget constraints
By carefully evaluating these aspects and choosing the appropriate hole opener, drillers can significantly enhance their HDD operations and achieve optimal results.
Optimizing Drilling Fluid for Effective Hole Opening
The success of hole opening operations in HDD projects relies heavily on the proper use of drilling fluid, also known as mud. An optimized drilling fluid system not only facilitates the cutting process but also helps maintain hole stability, remove cuttings, and cool the hole opener. Here are key considerations for optimizing your drilling fluid:
Mud Composition
The composition of your drilling fluid should be tailored to the specific soil conditions and hole opener type. Key components typically include:
- Bentonite: Provides viscosity and helps create a filter cake on the borehole wall
- Polymers: Enhance hole stability and improve cuttings transport
- Lubricants: Reduce friction between the hole opener and borehole wall
- Weighting agents: Adjust mud density to counterbalance formation pressures
Regularly test and adjust your mud properties to maintain optimal performance throughout the hole opening process.
Flow Rate and Pressure
Maintaining the right balance of flow rate and pressure is crucial for effective hole opening. Sufficient flow ensures proper cooling of the hole opener and efficient removal of cuttings, while appropriate pressure helps maintain borehole stability and prevents fluid loss to the formation.
Consider the following guidelines:
- Monitor and adjust flow rates based on hole opener size and soil conditions
- Maintain adequate annular velocity to transport cuttings effectively
- Use pressure gauges to monitor and control drilling fluid pressure
- Implement a proper filtration system to remove cuttings and recycle drilling fluid
Cuttings Management
Efficient removal of cuttings is essential for maintaining drilling progress and preventing stuck pipe situations. Implement the following practices:
- Use a shaker system to separate cuttings from the drilling fluid
- Regularly inspect cuttings to gauge hole opener performance and identify potential issues
- Adjust drilling parameters (rotation speed, pullback force) based on cuttings analysis
- Implement proper disposal methods for cuttings in compliance with environmental regulations
By optimizing your drilling fluid system, you can significantly enhance the performance of your hole opener and improve overall HDD project outcomes.
Monitoring and Adjusting Hole Opener Performance
Continuous monitoring and adjustment of hole opener performance are crucial for maintaining drilling efficiency and ensuring project success. By closely observing key parameters and making timely adjustments, operators can optimize the hole opening process and address potential issues before they escalate. Here are essential aspects to consider:
Torque and Rotation Speed
Monitoring torque and rotation speed provides valuable insights into the hole opener's performance and the resistance encountered during drilling. Consider the following guidelines:
- Maintain a consistent rotation speed appropriate for the soil conditions and hole opener type
- Monitor torque readings to detect changes in formation hardness or potential obstructions
- Adjust rotation speed and pullback force to optimize cutting efficiency and minimize wear
- Use torque limiters to prevent equipment damage in case of sudden increases in resistance
Pullback Force and Rate of Penetration
Proper management of pullback force and rate of penetration (ROP) is essential for efficient hole opening and minimizing the risk of stuck pipe situations. Follow these best practices:
- Maintain a steady pullback force appropriate for the soil conditions and hole opener design
- Monitor ROP to ensure consistent progress and detect potential drilling issues
- Adjust pullback force and rotation speed to optimize ROP while maintaining hole stability
- Implement proper reaming techniques, such as forward and backward passes, to ensure hole quality
Wear Monitoring and Tool Replacement
Regular inspection and timely replacement of worn components are crucial for maintaining hole opener performance and preventing unexpected downtime. Consider the following practices:
- Establish a routine inspection schedule for hole openers and related equipment
- Monitor wear patterns on cutting elements and replace them before they impact performance
- Keep detailed records of tool usage and performance to optimize maintenance schedules
- Use wear-resistant materials and coatings to extend the life of hole opener components
Data Logging and Analysis
Implementing a comprehensive data logging and analysis system can provide valuable insights for optimizing hole opener performance. Consider the following approaches:
- Use advanced drilling data acquisition systems to record key parameters in real-time
- Analyze historical data to identify trends and optimize drilling strategies
- Implement predictive maintenance techniques based on performance data analysis
- Share best practices and lessons learned across drilling teams to improve overall performance
By diligently monitoring and adjusting hole opener performance, drilling professionals can maximize efficiency, reduce downtime, and achieve superior results in their HDD projects.
Conclusion
In conclusion, mastering the use of hole openers in HDD drilling requires a comprehensive approach that encompasses proper tool selection, drilling fluid optimization, and continuous performance monitoring. By implementing these best practices, drilling professionals can enhance their operations, overcome challenging soil conditions, and deliver successful HDD projects. As the industry continues to evolve, staying informed about the latest advancements in hole opener technology and drilling techniques will be crucial for maintaining a competitive edge. For more information on high-quality hole openers and expert guidance on their application, please contact us at oiltools15@welongpost.com.
