Key Factors in Geothermal Hole Opener Selection
The most practical way to choose a hole opener for a geothermal project is to begin by assessing the real downhole circumstances and work back to the tool configuration.
Formation Characteristics
One of the first factors to take into account are formation qualities. The geothermal reservoirs may include tough and fractured rock which may impose higher demands on the cutting structure and durability of the instrument. “One of the major challenges in accessing geothermal subsurface involves fractured hard rock,” says the DOE.
The drilling crew will need to consider:
- Hardness and compressive strength of a rock
- Texture
- Fracture intensity and variations
- Lithology changes throughout the portion of the hole
The wear pattern in one formation may be significantly different for a cutting structure that works well in another formation. Therefore, tool selection should be based on the formation interval to be anticipated and not solely on the nominal hole diameter.
Desired Hole Size
Another main selection criterion is the ultimate hole diameter needed. The geothermal well designs may have quite large diameters and more extensive well building needs than many other subterranean applications.
When ordering a hole opener, the drilling crew has to decide:
- Diameter of old hole
- Hole diameter of target
- Required magnification ratio
- Casing or liner size
- Whether the operation needs a fixed or extendable diameter
The present hole and the goal diameter are related in an effort to evaluate if a fixed diameter tool or an expandable design is more suited for the intended operation.
Drilling Fluid Properties
The drilling fluid conditions may affect cutting removal, hydraulics and thermal environment of the drilling assembly. Thus, the fluid program should be seen in conjunction with the hole opener, not in isolation from it.
Fluid density, viscosity, flow rate, solids control and predicted temperature range are some of the key considerations. High temperature conditions in geothermal wells may also restrict the functioning range of certain downhole components.
Tool and nozzle configuration selection should be suitable with the proposed drilling program and with the circulation system.
Depth and Temperature
Temperature is very essential in geothermal drilling. The geothermal drilling equipment may be exposed to circumstances much hotter than those seen in many conventional drilling locations. Historical research on geothermal well building has focused on drilling at temperatures greater than 250°C. DOE projects have also concentrated on equipment that are capable of functioning in high-temperature, hard-rock conditions.
Temperature assessment should include the whole tool assembly including such components as bearings, seals and other temperature sensitive components if relevant. The tools that may perform mechanically under surface circumstances may not operate the same downhole.
Project Timeline and Budget
Tool cost is only one part of the economic calculation. A lower purchase price may not be beneficial if the selected hole opener causes excessive trips, slower drilling, premature cutter wear, or avoidable downtime.
A more useful comparison considers the expected effect on:
- Run life
- ROP
- Tripping frequency
- Maintenance requirements
- Overall drilling time
DOE geothermal drilling programs continue to emphasize drilling rate and total cycle time because reducing drilling cost remains a major development objective.
Comparing Hole Opener Types for Geothermal Drilling
There is no ideal one hole opener arrangement for all geothermal wells. The correct option is dependent upon formation, necessary enlargement, BHA, operating temperature and tool design.

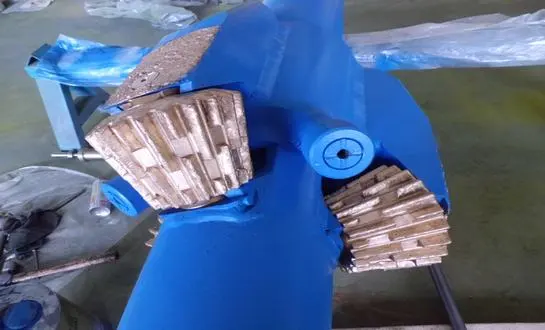

Roller Cone Hole Openers
Roller cone hole openers use revolving cones fitted with cutting devices, which may include tungsten carbide inserts or machined teeth. Roller-based cutting structures are still a key technique for hard-rock drilling, and hard-rock geothermal wells have historically depended primarily on roller bits, the DOE said.
In the case of appropriate applications, a roller cone design may allow controlled rock breakage in challenging formations.
Advantages:
- Suitable for a variety of hard rock drilling situations
- Proven cutting approach for difficult formations
- Can offer steady rock breaking motion if properly suited to the formation
Limitations:
- Moving parts introduce extra mechanical considerations
- Bearing and seal performance evaluation for high temperature service
- The performance may vary widely with the hardness and abrasiveness of the formation and the operating conditions
Drag-Type Hole Openers
Drag-type hole openers employ stationary cutting parts, rather than revolving cones. They are suitable for use in formations where the fixed-cutter action provides a proper balance between cutting effectiveness and durability depending on design and cutter technology.
Advantages:
- Fixed cutting structure eliminating cone rotation and related bearing components
- Can efficiently cut in formations suited for the chosen cutter design
- May be a really basic mechanical arrangement
Limitations:
- Cutter wear may be a significant problem in abrasive forms
- Strongly influenced by cutter selection and formation compatibility performance
- A design which works well in one lithology may be not appropriate for very varied or very hard intervals
Hybrid Hole Openers
Hybrid hole openers use various cutting mechanisms or kinds of cutters in the same instrument. They may be considered if the drilling interval has varying lithologies and a cutting idea may not deliver consistent performance.
Advantages:
- Provides flexibility for mixed formation situations
- Can combine multiple rock cutting mechanisms in one tool
- May be beneficial when formation properties vary within the specified interval
Limitations:
- More sophisticated designs may need more extensive application engineering.
- Initial Tool Cost May be Higher depending on setup
- The actual performance is highly dependent on the sequence of formation and the operational factors
Expandable Hole Openers
Expandable hole openers are intended to pass via a smaller part of the well and then expand to a wider diameter once deployed. They may be used if the well design has limits that make a fixed full-gauge tool unfeasible.
Advantages:
- Can accommodate certain multi-diameter well designs.
- May decrease need for separate journeys in appropriate situations
- Might assist meet certain wellbore access or clearance requirements
Limitations:
- More complex mechanisms require careful application review
- Expansion range is determined by the specific tool design
- Temperature, deployment method, and downhole conditions must be checked before selection
Expandable or underreaming technologies currently exist in drilling applications, but their applicability to a geothermal project is dependent on whether the overall design of the tool is able to operate under the needed high temperature and formation conditions. DOE has explicitly recognized the necessity for specialist instruments for geothermal high temperature and hard rock conditions.
Maximizing Efficiency: Hole Opener Best Practices
Choosing the right tool is just half the battle. Performance is also a function of how the hole opener is designed, operated, monitored and maintained.
Proper Tool Selection and Configuration
The tool should be chosen based on the actual drilling data available for the target interval.
Think:
- Hardness and abrasive nature of formation
- Current and necessary hole sizes
- Expected hole-expansion
- Conditions of temperature and pressure
- Compatibility with BHA
- Requirements for hydraulic and drilling fluid
If feasible, assess these issues before to procurement, rather than after the tool has arrived at the rig. Having a good understanding of the operating envelope may assist to avoid the danger of picking a mechanically sound tool that is a poor fit to the formation.
Optimization of Drilling Parameters
Drilling parameters need to be defined keeping the tool design and formation in mind. The purpose is not to enhance WOB or RPM but to effectively reduce and manage vibration, wear, torque and hydraulic performance.
Important parameters are:
- Weight on bit (WOB) Use weight to the cutting structure and formation reaction, not to the greatest load allowed.
- Rotational Speed: Select an RPM range that provides efficient cutting without causing excessive cutter or component wear.
- Hydraulics: Ensure enough circulation for cuttings removal and proper nozzle performance.
- Torque and Drag: Look for variations that may signal formation shifts, hole cleaning issues or rising resistance.
The actual working limitations should always be per the tool manufacturer and drilling program.
Regular Maintenance and Inspection
A maintenance software may detect the tool damage before it impacts a next run.
Good practices are:
- Checking the tool before and after each run.
- Inspection of cutters, cones, bearings, seals and other important components, if appropriate
- Cleaning the Tool Prior to Inspection
- Recording wear patterns and components that have been damaged
- Storage and transportation of the tool to prevent unwanted mechanical damage
The post-run assessment is particularly useful in identifying wear patterns that might help choose the next tool choice.
Continuous Monitoring and Data Analysis
Real-time drilling data provides the opportunity to see variations in tool behavior throughout the run. Useful data points include but are not limited to WOB, RPM, Torque, Flow rate, Penetration rate, and other parameters accessible from the drilling system.
Actual performance may then be compared to the original drilling plan after run.
The systematic utilization of drilling data in geothermal drilling is of particular value since reduction of drilling time and improvement of tool performance are still major industry goals. The present geothermal drilling efforts at DOE still focus on enhanced drilling rates and greater knowledge of drilling performance
Training and Crew Competency
Poor performance may result from mishandling or misoperation of even the best engineered hole opener.
The drill team should be aware of:
- Correct assembly and handling methods
- Tool operating restrictions
- Changes in torque, vibration or penetration that may indicate aberrant conduct
- Inspection required between runs
- Protocols for communication between rig crew, drilling engineers and tool provider
Open communication becomes even more critical when downhole circumstances vary from the assumptions utilized for tool selection.
By using the right tools, together with regulated drilling parameters, inspection and data analysis, geothermal operators may increase the consistency of hole enlargement operations without having to use a one-size-fits-all tool approach.
Conclusion
Choosing the correct hole opener for a geothermal project is more than just matching a tool to the desired hole diameter. The final choice depends on the formation hardness, abrasiveness, cracks, temperature, drilling fluid conditions, BHA compatibility and the enlargement ratio needed.
The key task is to choose a tool with such a cutting structure and mechanical design as will be suitable for real circumstances of the downhole. There is a role for roller cone, drag-type, hybrid and expandable configurations in drilling but use relies on the particular well design and operating conditions.
The best selection method for the buyer is to provide to the tool supplier the formation information available, current and target hole diameters, temperature range, depth, BHA specifics and projected operation circumstances. This provides the provider with a working foundation on which to offer an appropriate configuration rather than only selecting on the basis of hole diameter.
Welong can support project discussions around hole opener selection based on the operating conditions and drilling requirements provided by the customer. For technical inquiries or tool selection assistance, contact oiltools15@welongpost.com.
