Common Uses of Casing Slips in Drilling

Casing slip equipment serves multiple critical functions in drilling operations, from securing pipe strings during connections to supporting heavy tubulars during well construction. These specialized tools handle various pipe diameters ranging from 4-1/2 inches to 30 inches, ensuring safe and efficient operations across shallow, medium, and deep drilling applications. Understanding their diverse applications helps drilling contractors optimize equipment selection and enhance operational safety throughout the drilling process.

Primary Functions of Casing Slip Equipment in Drilling Operations

Casing slip congregations are basic for suspending pipe strings in the wellbore amid penetrating and upkeep. The slip component safely grasps overwhelming pipe segments, anticipating them from falling into the gap. This suspension work is basic amid associations, where pipe weights can reach a few tons, guaranteeing secure and proficient operations for penetrating teams on the fix floor.

Multi-Segment Design and Rotational Control

Modern casing slip frameworks utilize multi-segment plans to disseminate holding powers equally around the pipe, avoiding harm and keeping up secure hold. Autonomous fragments oblige slight varieties in pipe distance across, whereas rotational control highlights permit exact introduction amid casing or cementing operations, giving administrators full hub and rotational control over pipe movement.

Casing Running Operations: The Foundation of Well Integrity

Casing running represents one of the most critical applications for slip equipment in drilling operations. During these operations, crews lower large-diameter steel pipes into the wellbore to line the hole and provide structural integrity.

Casing Slip Applications for Primary and Intermediate Operations

During essential casing establishment, slip frameworks handle channels from 8-5/8" to 30" in breadth. Sort UC-3 multi-segment slips convey holding powers equitably over three-inch decrease sections, keeping up pipe roundness and giving secure grasp for overwhelming strings. Middle of the road casing operations require exact control; slips permit smooth plummet and the capacity to suspend the pipe in tight spots or unpredictable wellbores, guaranteeing secure and effective handling.

Production Casing Deployment and Reliability

Production casing speaks to the last obstruction between the wellbore and encompassing arrangements. Slip frameworks in these operations must provide extraordinary grasp unwavering quality, as generation casing regularly remains in put for decades. High-quality slip plans give indeed drive conveyance, securing strings and the pipe body from harm amid establishment, guaranteeing long-term well keenness and operational safety.

Drill Pipe Handling: Maximizing Operational Efficiency

Drill pipe handling operations consume significant rig time, making efficient slip systems crucial for overall drilling economics. Modern slip designs accommodate drill pipes ranging from 2-3/8 inches to 5-1/2 inches in outer diameter.

Connection Operations

During penetrate pipe associations, slip hardware holds the pipe string whereas teams include modern joints. The Brief (SDS) slip variation works superbly for shallow penetrating applications where pipe weights stay direct. These slips give fast engagement and discharge, minimizing association times and progressing penetrating efficiency.

Pipe Trips and Maintenance

When pulling penetrate pipe for bit changes or upkeep, Casing Slip frameworks give controlled pipe dealing with. The Medium (SDML) slip plan offers ideal execution for standard penetrating profundities, adjusting hold quality with operational speed. The holding length gives adequate contact range for secure pipe suspension without over the top engagement time.

Deep Drilling Applications

Deep penetrating operations require Additional Long (SDXL) slip setups to handle extraordinary pipe weights and challenging wellbore conditions. These slips include expanded grasping surfaces that convey loads over bigger contact zones, anticipating pipe harm whereas keeping up solid suspension capabilities.

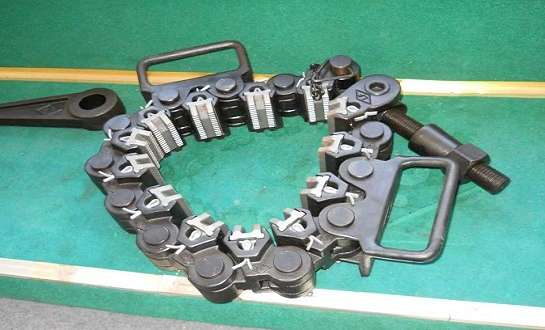

Safety Clamp Applications: Protecting Personnel and Equipment

Safety clamp systems represent specialized slip applications designed for handling flush joint pipes and drill collars. These applications present unique challenges due to the absence of tool joints or upset areas for conventional gripping.

Drill Collar Handling

Drill collars need the disturbed segments found on standard bore pipe, making ordinary slip frameworks incapable. Security clamps outlined particularly for penetrate collar applications utilize specialized holding surfaces that lock in the smooth collar body without causing harm. Sort MP security clamps exceed expectations in these applications, giving secure grasp on collars extending from 4-1/2 inches to 9-7/8 inches.

Flush Joint Pipe Operations

Flush joint pipe presents comparable challenges to bore collar taking care of. The Sort WA-T and WA-C security clamp variations address these challenges through specialized jaw plans that hold smooth pipe surfaces securely. These clamps avoid pipe slippage whereas dodging harm to the pipe body or connections.

Emergency Pipe Recovery

Safety clamps serve pivotal parts in crisis pipe recuperation operations. When routine slip frameworks cannot lock in appropriately due to pipe harm or bizarre arrangements, security clamps give elective holding strategies. Their flexible jaw plans adjust to different pipe conditions, empowering recuperation operations that might something else demonstrate impossible.

Pneumatic Slip Systems: Advanced Automation and Control

Pneumatic slip technology represents the latest advancement in drilling automation. These systems use compressed air to actuate slip mechanisms, providing consistent and repeatable performance.

Automated Operations

Pneumatic slip frameworks coordinated with boring robotization bundles to give hands-off pipe taking care of. Administrators can lock in and separate slips remotely, diminishing faculty presentation to dangerous regions around the fix floor. The measure extend from 4-1/2 inches to 9-7/8 inches covers most common pipe applications.

Consistent Performance

Air-powered activation disposes of human inconstancy in slip engagement. Each operation applies indistinguishable holding constrain, guaranteeing steady pipe treatment and diminishing the chance of harm from over-tightening or under-engagement. This consistency demonstrates especially important in basic operations where pipe judgment cannot be compromised.

Integration Benefits

Modern pneumatic slip systems communicate with rig control systems, providing real-time feedback on slip status and gripping force. This integration enables advanced safety features such as automatic slip engagement when pipe load exceeds preset limits, preventing accidental pipe drops.

Specialized Applications in Well Construction

Beyond standard pipe handling, casing slip equipment serves numerous specialized functions throughout well construction phases.

Cementing Operations

During cementing operations, slip systems maintain precise pipe positioning while cement pumping occurs. The ability to lock pipe position prevents unwanted movement that could compromise cement job quality. Slip systems must maintain their grip despite vibration from pumping operations and pressure fluctuations.

Liner Running

Liner installations require specialized slip configurations that accommodate the reduced clearances around liner tops. Custom slip designs often feature modified jaw profiles that engage liner pipes without interfering with liner hangers or other downhole equipment.

Wellhead Integration

During wellhead installation, slip systems support casing strings while crews make critical connections. The precise positioning capability of quality slip equipment ensures proper wellhead alignment and prevents stress on critical connections that must maintain integrity throughout the well's producing life.

Economic Benefits and Operational Advantages

Investing in quality casing slip equipment delivers substantial economic benefits through improved operational efficiency and reduced equipment damage.

Reduced Connection Times

Efficient slip designs minimize the time required for pipe connections, directly improving drilling economics. Quick engagement and release mechanisms reduce non-productive time while maintaining operational safety standards.

Equipment Protection

Proper slip design protects expensive pipe assets from damage during handling operations. The even force distribution characteristic of multi-segment designs prevents pipe deformation while providing adequate grip strength.

Safety Improvements

Modern slip systems incorporate numerous safety features that protect personnel while improving operational reliability. Positive engagement indicators, fail-safe mechanisms, and ergonomic designs all contribute to safer drilling operations.

Conclusion

Casing slip equipment serves essential roles throughout drilling operations, from basic pipe suspension to complex automated handling systems. The diverse applications span shallow to deep drilling environments, each requiring specific slip configurations optimized for particular operational demands. Quality slip systems deliver economic benefits through improved efficiency, equipment protection, and enhanced safety performance. As drilling operations continue evolving toward greater automation and deeper targets, casing slip technology will advance to meet these challenges while maintaining the fundamental reliability that drilling operations demand. Understanding these applications enables informed equipment selection that optimizes both operational performance and economic returns.

FAQ

1. What determines the correct casing slip size for specific applications?

The correct slip size depends on the outer diameter of the pipe being handled and the expected load conditions. For casing applications, pipe diameters ranging from 6-5/8 inches to 30 inches require corresponding slip sizes. Load calculations must consider the total string weight plus any dynamic forces from pipe movement or wellbore conditions.

2. How do multi-segment slip designs improve performance compared to conventional slips?

Multi-segment designs distribute gripping forces more evenly around the pipe circumference, reducing stress concentrations that could damage the pipe. Each segment adjusts independently to accommodate slight variations in pipe diameter, ensuring consistent contact across the entire gripping surface. This design maintains better pipe roundness during gripping operations.

3. What maintenance requirements apply to casing slip equipment?

Regular maintenance includes inspection of gripping surfaces for wear, verification of proper segment alignment, and lubrication of moving components. Jaw surfaces should be examined for proper tooth condition and replaced when wear limits are exceeded. Hydraulic components require regular fluid changes and seal inspections to maintain reliable operation.

Choose WELONG as Your Trusted Casing Slip Manufacturer for Reliable Drilling Solutions

WELONG combines over 20 years of manufacturing excellence with comprehensive quality control processes to deliver casing slip solutions that meet the demanding requirements of modern drilling operations. Our ISO 9001-2015 and API 7-1 certifications ensure consistent product quality, while our experienced production team guarantees timely delivery through flexible shipping options including FOB, CIF, DDP, and DDU terms. Contact our team at oiltools15@welongpost.com to discuss your specific requirements and discover how our customized slip solutions can enhance your drilling efficiency and safety standards.
