Common Uses of Drill Pipe Screens in Drilling

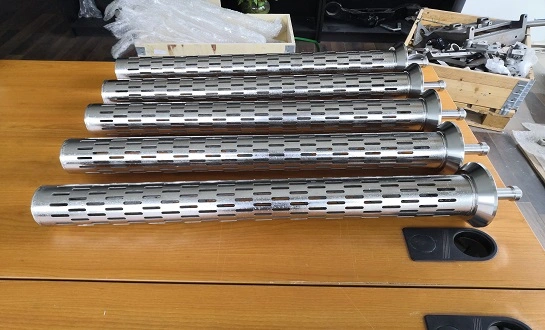

Drill pipe screens serve as basic filtration components in advanced boring operations, protecting important downhole hardware from harmful flotsam and jetsam and particles showing in penetrating liquids. These specialized screening gadgets channel strong contaminants from mud frameworks, avoiding harm to touchy estimation, whereas boring (MWD) instruments and other costly downhole devices are disobedient. The essential applications span over directional penetrating, flat penetrating, and complex wellbore development, where keeping up clean boring liquid circulation gets to be basic for operational success.

​​​​​​​

Protecting MWD and LWD Equipment During Operations

Modern boring operations depend intensely on advanced estimation, whereas boring and logging depend on penetrating gear. These apparatuses give real-time information around arrangement characteristics, wellbore direction, and penetrating parameters. In any case, their touchy electronic components and exactness stay disobedient and powerless to strong particles circulating in boring fluids.

Protective Work and Establishment Principles

Drill pipe screens act as a defensive boundary, preventing expansive flotsam and jetsam from coming to touchy downhole instruments. The screen gathering is regularly introduced inside the penetrating pipe string, fair over the MWD hardware. As boring mud circulates, the screen captures arrangement cuttings, misplaced circulation materials, and other strong particles that seem to harm sensors or limit inside sections. This straightforward but viable setup makes a difference, keeps up steady instrument execution, and diminishes the hazard of expensive failures.

Screen Choice and Execution Considerations

Successful usage depends on selecting the right screen plan for the particular penetrating conditions. Administrators select between opened and punctured setups, with opening sizes for the most part extending from 0.5 mm to 3 mm based on anticipated molecule estimate and mud characteristics. A 33% open-area aperture plan equalizes filtration effectiveness with adequate stream capacity. Screens are particularly important in unsteady arrangements or when misplaced circulation materials are presented into the mud framework, as they offer assistance in keeping up a clean liquid stream and amplify the benefit life of basic equipment.

Maintaining Drilling Fluid Quality in Complex Wells

Complex wellbore geometries display interesting challenges for keeping up penetrating liquid quality all through the circulation framework. Amplified reach wells, high-angle areas, and level penetrating applications frequently involve destitute gap cleaning effectiveness, leading to expanded solids stacking in the mud system.

Localized Filtration and Key Placement

Drill pipe screens illuminate debris-related issues by focusing on filtration at basic focuses inside the penetration string. By expelling solids some time recently, they settle in even segments or confine streams in tight annular spaces; the screens offer assistance to keep up steady mud circulation and steady liquid properties. This localized cleaning, moreover, decreases the chance of proportionate circulating thickness changes, which can influence well control and, in general, boring stability.

Effective usage frequently incorporates introducing different screen congregations at key areas. Engineers regularly put them over critical apparatus congregations and close drill pipe associations, where cuttings and flotsam and jetsam are more likely to gather. The expansion of an inside wear dissemination sleeve ensures the screen amid the turn and minimizes harm caused by drill pipe wear, amplifying benefit life and keeping up filtration efficiency.

Operational Proficiency and Framework Longevity

The points of interest of drill pipe screens go past securing downhole devices. Cleaner penetrating liquids promote water-powered execution, supporting speedier infiltration rates and more exact arrangement assessment. By decreasing solid substances in the mud framework, screens also constrain wear on surface hardware and amplify the life expectancy of pumps and other components. Together, these benefits offer assistance to diminish non-productive time and progress generally, penetrating efficiency.

Filtering Formation Cuttings and Debris

Formation cuttings speak to the most common source of strong defilement in penetrating operations. These shale parts, produced by bit activity, change altogether in estimate and characteristics depending on arrangement, lithology, and penetrating parameters. Without legitimate filtration, bigger cuttings can amass in the drill string and cause operational problems.

Filtration Instrument and Screen Design

Drill pipe screens capture curiously large cuttings; sometime recently they meddled with downhole instruments or limited the liquid stream. The filtration handle depends on accurately outlined openings that permit boring liquid to pass while holding destructive solids. Opened arrangements are well suited for precise cuttings, whereas punctured plans perform superior with adjusted particles. Choosing the right design guarantees successful filtration without compromising circulation efficiency.

Placement Methodology and Retrievable Features

Proper situation is basic for greatest execution. Screens are as a rule introduced in the lower area of the penetrating string, near to the bit, where cuttings concentration is most elevated. Numerous plans are retrievable, permitting administrators to evacuate and assess them amid trips. This not only reestablishes filtration capacity but also gives valuable knowledge into arrangement characteristics and wellbore conditions.

Performance in Challenging Formations

Screens are especially profitable in arrangements that deliver huge or unpredictable cuttings. Shale interims, ineffectively solidified sandstones, and broken carbonates frequently produce flotsam and jetsam capable of sticking to apparatuses or blocking entries. By expelling these particles early in the circulation framework, penetrating pipe screens diminish collection, secure hardware, and offer assistance to keep up relentless boring performance.

Lost Circulation Material Recovery Applications

Lost circulation occasions require the expansion of different stopping materials to seal arrangement breaks and avoid mud misfortunes. These materials, including nut bodies, mica pieces, cellophane, and manufactured filaments, can pose noteworthy dangers to downhole hardware if not appropriately managed.

Protecting Devices Amid Misplaced Circulation Treatments

Drill pipe screens offer assistance in anticipating misplaced circulation materials from harming delicate downhole devices while still permitting these materials to seal arrangement breaks as planned. After performing their fixing work, a few larger-than-usual stopping materials start circulating back through the framework. Screens capture these returning solids; some time recently they reach pumps or estimation instruments, diminishing the chance of blockage or mechanical damage.

Screen Choice and Adaptable Configuration

Effective utilization of drill pipe screens requires selecting opening sizes that coordinate with the sort of misplaced circulation fabric in use. Bigger openings are appropriate for stringy added substances, whereas smaller apertures work better for granular materials. Conversely, ring ribs make it conceivable to alter screen setups in the field, giving administrators adaptability as treatment plans alter or unused materials are introduced.

Improving Liquid Quality and Treatment Efficiency

By expelling circulated stopping materials in the right arrangement, screens offer assistance in keeping up penetrating liquid quality and steady framework execution. This recuperation prepares and guarantees that misplaced circulation materials reach their target zones without causing downstream issues. As a result, administrators accomplish more productive medicines, decrease fabric squander, and minimize the chance of equipment-related downtime.

Preventing Tool String Damage and Wear

Drill string components involved in noteworthy wear amid typical operations, with strong particles in penetrating liquids quickening this corruption, prepare. Rough cuttings, arrangements of flotsam and jetsam, and metallic particles created by bit wear can cause untimely disappointment of costly downhole tools.

Reducing Rough Wear on Basic Components

Drill pipe screens offer assistance to ensure the instrument string by expelling rough particles some time recently they reached touchy surfaces. By bringing down the concentration of solids around apparatus joints, stabilizer edges, and other key components, the screens diminish wear and expand hardware life. Their stainless steel development gives the quality required for downhole conditions while keeping up solid resistance to corrosion.

Strategic Situation and Secure Design

Effective security depends on putting screens at the right focuses in the drill string. Engineers commonly introduce them over high-value apparatuses, close to penetrating pipe associations, and in regions where particles tend to gather. A full-length security holding pole avoids coincidental misfortune amid operations and guarantees the screen remains safely in place all through drilling.

Material Choice and Long-Term Reliability

Material choice is basic to by and large execution. Grades such as 304 and 316 stainless steel offer an adjusted combination of quality, erosion resistance, and wear strength. Uncommon surface medicines encourage upgraded benefits in life and unwavering quality in requesting situations. This solidness diminishes upkeep necessities and underpins more steady, cost-effective boring operations.

Optimizing Hydraulic Performance and Flow Efficiency

Drilling power through pressure depends on keeping up steady stream designs and minimizing weight misfortunes all through the circulation framework. Strong particles in boring liquids can disturb stream designs, make weight limitations, and diminish by and large water-powered efficiency.

Improving Stream Proficiency Through Filtration

Drill pipe screens improve water-powered execution by expelling particles that disturb liquid streams in basic ranges. Their high-flow-capacity plan keeps up weight proficiency while still giving solid filtration. The arranged fabric design increases resistance to washout and diminishes the hazard of stopping, indeed amid high-rate circulation.

Balancing Filtration and Weight Control

Successful application requires selecting opening sizes that accomplish compelling filtration without making intemperate weight misfortune. A 33% open-area puncturing plan offers a viable adjustment between stream capacity and molecule maintenance. This arrangement makes a difference in avoiding pointless weight drops that seem to adversely influence boring speed or general performance.

Supporting Bit Execution and Gear Longevity

Cleaner penetrating liquids lead to superior water-powered conditions at the bit. Steady stream designs and legitimate spout speeds move forward gap cleaning and arrangement assessment. At the same time, diminished solid substance brings down pump wear and expands surface hardware life. Together, these benefits contribute to smoother operations and forward-moving penetrating efficiency.

Supporting Wellbore Stability and Hole Quality

Wellbore solidness depends on keeping up appropriate penetrating liquid properties and minimizing mechanical harm to arrangement surfaces. Strong particles circulating in penetrating liquids can disintegrate powerless arrangements, extend gap areas, and contribute to flimsiness problems.

Enhancing Wellbore Steadiness Through Molecule Control

Drill pipe screens offer assistance in keeping up wellbore solidness by evacuating arrangement particles that seem to cause erosional harm amid circulation. By anticipating cuttings from recycling, they diminish the mechanically scraped spot along the borehole divider. This work is particularly critical in unconsolidated arrangements and exhausted supplies, where the wellbore is more defenseless to instability.

By capturing solids some time recently, they gather in annular spaces; screens, moreover, lower the chance of differential staying. Cleaner boring liquids keep up more uniform contact with the arrangement and permit steadier weight transmission. This made strides in liquid interaction, bolstering a more steady and unsurprising boring environment.

Improving Gap Quality and Completion Results

Consistent filtration contributes to much better general wellbore quality. Decreased molecule stacking makes a difference; keep up appropriate gap gauge and minimize washout zones. These enhancements lead to a more viable cement arrangement and more grounded zonal segregation. By keeping the circulation framework clean, bore pipe screens decrease completion dangers and bolster long-term well astuteness.

Conclusion

Drill pipe screens serve multiple critical functions in modern drilling operations, from protecting expensive MWD equipment to maintaining drilling fluid quality and supporting wellbore stability. These versatile filtration devices offer proven solutions for managing solid contamination challenges across various drilling applications. The benefits extend beyond equipment protection to include improved hydraulic efficiency, reduced operational costs, and enhanced drilling performance. Selecting the appropriate screen configuration and implementing proper operational procedures ensures optimal results and maximizes return on investment.

FAQ

1. What materials are drill pipe screens typically made from?

Most drill pipe screens use 304 or 316 stainless steel construction to provide optimal corrosion resistance and durability in harsh downhole environments. The stainless steel material undergoes special surface treatment to extend service life and improve performance characteristics. Some applications may require specialized alloys for extreme temperature or corrosive conditions.

2. How do you determine the proper screen opening size for specific applications?

Screen opening size selection depends on several factors including expected particle sizes, drilling fluid properties, and tool protection requirements. Generally, openings should be large enough to maintain adequate flow capacity while small enough to capture harmful particles. Typical sizes range from 0.5mm to 3mm, with larger openings used for lost circulation applications.

3. Can drill pipe screens be reused after retrieval?

Yes, quality drill pipe screens can often be reused multiple times if properly maintained and inspected. The retrievable design allows removal using standard overshot tools for cleaning, inspection, and refurbishment. However, screens showing signs of damage, excessive wear, or plugging should be replaced to ensure continued performance.

4. What maintenance procedures are recommended for drill pipe screens?

Regular inspection during trips provides opportunities to assess screen condition and performance. Maintenance procedures include cleaning accumulated debris, checking for damage or wear, and verifying connection integrity. Proper handling during installation and retrieval prevents damage and extends service life.

Partner with WELONG for Premium Drill Pipe Screen Solutions

WELONG stands as your trusted drill pipe screen manufacturer, delivering superior filtration solutions backed by over 20 years of oilfield expertise. Our comprehensive quality control processes ensure reliable performance while our skilled production teams guarantee timely delivery worldwide. Contact our experienced team at oiltools15@welongpost.com to discuss your specific screening requirements and discover how our proven solutions can enhance your drilling operations.
