Key Components: Drill Pipe vs. Drill String
Drill pipe and drill string are terminology used to describe distinct components of the drilling mechanism. Drill pipe is one component of the drill string which is made up of assembled tubulars and downhole components that carry out the drilling process.
This difference becomes crucial in designing equipment, since the load and function of the overall drill string rely on how the separate components perform together.
Drill Pipe: The Core of Rotary Drilling
A drill pipe is a tubular element, which transmits torque and circulates drilling fluid between the surface and the BHA. A typical drill pipe assembly contains the pipe body and tool joints that provide the threaded connection needed to link individual joints.
Typical drill pipe specifications are:
- Pipe diameters chosen based on well design and drilling needs
- Material Grades E75 X95 G105 S135
- Tool joint connections that work with the drilling system
- Applicable applications include internal coatings such as TK34 or TK34P
- Hardbanding choices Arnco 100XT, Arnco 300XT for wear protection

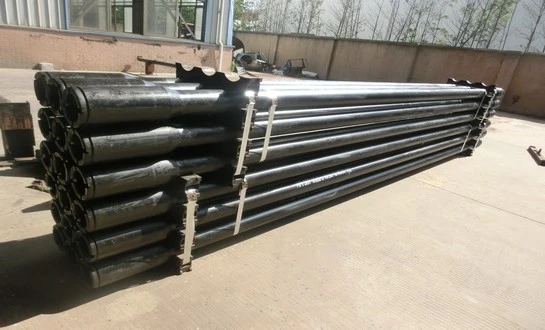

Welong presently stocks drillpipe from 2 3/8” to 6 5/8” in E75, X95, G105 and S135 grades with TK34/TK34P coatings and Arnco 100XT/300XT hardbanding. Specific dimensions and connector combinations are subject to product specification.
Drill String: The Complete Assembly
The drill string is the complete downhole drilling assembly rather than a single tubular product. Depending on the drilling program, it may include:
- Drill pipe
- Heavy-weight drill pipe
- Drill collars
- Stabilizers
- Other downhole drilling tools
The parts each do distinct things. The drill pipe is the principal channel for drilling fluid and provides rotation while the heavier components offer bottomhole loads and directional stability. The last arrangement should be thought of as a system, as a change to one element can alter the mechanical requirements of the others.
Material Science Behind Drill Pipe Durability
The material and manufacturing method of a drill pipe dictates how it will hold up to the cyclic stress it experiences during drilling. Buyers should concentrate on the combination of material grade, heat treatment, connection design, surface protection and the predicted operating circumstances instead of only the nominal strength.
Alloy Composition and Heat Treatment
Steel drill pipe is made to the mechanical qualities necessary for drilling operations. The choice of grade impacts qualities like yield strength and tensile strength, and heat treatment is used to get the desired microstructure and mechanical performance.
In challenging drilling circumstances, the link between grade and operating load is very critical. A higher-strength grade may be acceptable if the drilling program presents greater tensile or mechanical demands, but grade selection should be based on the whole well design, not just strength.
API Spec 5DP includes grades of steel drill pipe and defines technical delivery criteria for the goods included. References to the standard today should be understood to include the 2025 revisions and the errata to the 2020 version.
And management of manufacturing is vital. The drill pipe is made of alloy steel and heat-treated under regulated conditions, Welong says. The tool joints are friction-welded and machined with accuracy. The firm also specifies dimensional control for wall thickness, concentricity and straightness.
Corrosion Resistance and Protective Coatings
Drill pipe is subject to exposure to drilling fluids, formation fluids, mechanical wear, and other factors which may lead to surface deterioration. The right protection thus relies on the real working environment and the most exposed sections to wear or corrosion.
Where necessary, internal coatings may be provided to give extra protection to the surface. Hardbanding is applied to the regions that may experience external wear, such as around the surfaces of the tool joint that may touch the casing or wellbore environment.
Welong’s drill pipe products are available in TK34 and TK34P coating variants and Arnco 100XT and Arnco 300XT hardbanding options. These alternatives should be chosen according to the drilling application and technical specification and not as a general necessity.
“Inspection and maintenance are important too,” he says. Regular assessment will assist in identifying damage, excessive wear, connection difficulties or other situations that may impede continuous service. The method of inspection and acceptance criteria should be consistent with the appropriate operating and inspection standards for the equipment."
Optimizing Drill Pipe Selection for Efficiency
Drill pipe selection should start with the drilling program and not a particular spec. The design of the well and anticipated loads dictate the necessary pipe size, grade, connection, coating, and other characteristics.
A comprehensive technical specification also decreases the risk for the procurement team of buying a product that does not fit the current drill string.
Factors Influencing Drill Pipe Selection
When selecting drill pipe, engineers and buyers should consider:
- Well depth and trajectory
- Required pipe size and wall thickness
- Formation and drilling conditions
- Expected tensile, torsional, and other mechanical loads
- Drilling fluid characteristics
- Temperature and pressure conditions
- Tool joint connection requirements
- Coating and hardbanding requirements
- Applicable technical and inspection specifications
The grade should not be chosen in a vacuum. For example, E75, X95, G105 and S135 are various strength levels, thus the right one to choose depends on the stresses and needs of the drilling program. Welong now has the following grades in its drill pipe selection .
Another practical element is connection compatibility. The tool joint must fit with the current drill string and the drilling equipment. Therefore dimensions, type of connection and joint length should be checked before placing an order.
Advanced Technologies in Drill Pipe Design
Modern drill pipe development focuses on improving performance for specific drilling requirements rather than applying one design to every well.
Examples include:
- High-torque connections for applications requiring greater torque capacity
- Higher-strength drill pipe grades for demanding load conditions
- Specialized coatings for applications where internal surface protection is required
- Hardbanding systems designed to reduce external mechanical wear
- Application-specific drill pipe configurations for directional and extended-reach drilling
These possibilities should be considered in light of the drilling program. For example, just because the material is made stronger does not immediately address the connection, wear or compatibility problems. A balanced specification between the pipe body, tool joints, surface protection and inspection requirements is of greater value for procurement choices.
Manufacturers also consider manufacturing consistency to be part of product performance. Welong’s drill pipe production capabilities include regulated dimensional tolerances, precision machined tool joints, internal coating and exterior hardbanding.
Conclusion
The drill string contains the drill pipe which is a significant load carrying and fluid circulation component. Its performance relies on the relationship between pipe grade, dimensions, tool joint connections, manufacturing quality, surface protection and actual drilling circumstances.
For customers, it is advisable to first determine the drilling needs and then check the related drill pipe parameters. Review procurement criteria for review size, grade, connection, coating, hardbanding and related inspection standards.
Welong supplies drill pipe in multiple sizes and grades and lists options including API SPEC 5DP, TK34/TK34P coating, and Arnco 100XT/300XT hardbanding. If you are sourcing drill pipe for a specific drilling application, you can contact Welong at oiltools15@welongpost.com with your required size, grade, connection, and application details for further product discussion.
