For directional drilling, then, collar location should be evaluated along with stabilizer position, hole size, bit characteristics, formation behaviour and desired trajectory. A modification in one component could influence the mechanical performance of the whole assembly.
Knowing these correlations allows the drilling engineer to design BHAs with more predictable build, hold or drop tendencies and to make more educated modifications as drilling circumstances change.
Key Factors in Drill Collar Positioning
Besides weight distribution, the drill collar arrangement in the BHA is more than just that. The location of the stabilizers and other BHA components has a great impact on the rigidity and the mechanical responsiveness of the lower assembly.
Weight Distribution and Stability
A drill collar’s primary purpose is to provide weight to the drilling assembly to achieve the desired weight on bit (WOB).
The location of this mass inside the BHA may influence how the assembly reacts to axial stress and its interaction with the wellbore. The outcome may impact the directional behaviour of the BHA, but the actual reaction is dependent on the whole assembly and drilling environment.
Therefore, engineers should assess collar location in combination with weight on bit, stabilizer arrangement, hole diameter, well inclination and formation parameters. Changing the distance between components or moving a collar might affect the mechanical behaviour of the BHA.
Stiffness and Flex Point
The BHA behaviour is strongly connected to the drill collar stiffness. Because collars are heavier and stiffer than ordinary drill pipe, their location might affect where bending and contact occurs in the bottom assembly.
The phrase "flex point" is commonly used to refer to a spot where a large amount of bending behaviour occurs. But the behaviour is not just a function of the position of the collar. The BHA reaction is a function of collar sizes, stabilizer positions, hole shape, axial stress, and formation interaction.
Engineers may thus modify collar and stabilizer patterns when constructing an assembly for a specific directional tendency. The whole BHA may be modelled to provide a stronger foundation for these judgments than any one collar in isolation.
Stabilizer Placement
Drill collars and stabilizers work together to define how the BHA reacts to the wellbore. Stabilizers offer points of contact that may impact lateral movement and the response of the assembly to applied stresses.
Hence, the distance between the bit, stabilizers and collar sections might influence the tendency of an assembly to build, retain, or decrease inclination. The real tendency is a function of the whole geometry and the drilling environment.
When examining a BHA design it is helpful to analyze the collar size and stabilizer arrangement as a system. This enables engineers to get an understanding of how a modification to one component may impact the behaviour of the assembly as a whole.
Optimizing BHA Design for Precise Wellbore Trajectories
A proper drill bit does not in itself guarantee a predictable wellbore trajectory. Directional behaviour is influenced by BHA geometry, collar stiffness, stabilizer location, formation response, and operating settings.
Balancing Build and Drop Tendencies
Different BHA configurations can be designed to produce different directional tendencies. For example a pendulum type assembly may be employed if a decreasing tendency is needed while other arrangements can be built to assist building or retaining inclination.
This design is based on the size of the drill collar and its relationship to the stabilizers. But the ultimate tendency is a function of total BHA and formation being drilled.
Engineers should not see any one collar configuration as a universal answer. The configuration must be fit for the target trajectory, hole size, formation behaviour and operational circumstances.
Considering Formation Characteristics
Formation features influence BHA behaviour during drilling. Variations in rock strength, abrasiveness, bedding and formation dip may affect bit-rock contact and directional response of the assembly.
A BHA that is stable in one configuration may react differently if the configuration changes. Don’t only choose a conventional design when choosing the position of the drill collar, consider the predicted geological conditions.
Where information on formations is available this may be used by engineers in conjunction with past drilling data to establish whether the proposed BHA is likely to give the needed directional response.
Utilizing Advanced Modeling Tools
Engineers may use BHA modelling to determine the potential effects of various collar and stabilizer configurations before the assembly is run in the well.
Depending on the program and the input data provided, modelling may look at things like stiffness, bending behaviour, contact sites and directional inclinations. This enables engineers to evaluate alternate BHA setups without depending only on trial and error in the field.
But modelling is an engineer's tool, not a replacement for field data. The formation behaviour and operation circumstances in the real world may not be the same as the assumptions in a model.
Successful Directional Drilling Techniques
The right measuring, steering and operating procedures along with good BHA design provide for effective directional drilling. One aspect of this procedure is the location of the drill collar and this should be examined in conjunction with the equipment and methods used to monitor the wellbore.
Rotary Steerable Systems Integration
Rotary steerable systems (RSS) are able to steer the drill bit as it is continuously rotated and are helpful for applications where accurate trajectory control is needed.
When an RSS is employed the BHA must be tailored to the system’s mechanical and operational requirements. The behaviour of the overall assembly may be affected by the drill collar size, stabilizer location, bit selection and other components.
The aim is that the BHA offers the mechanical conditions needed by the steering system and is at the same time acceptable for the desired wellbore trajectory.
Real-Time Monitoring and Adjustment
MWD/LWD equipment may offer information on wellbore trajectory and downhole conditions during drilling.
The data enables drilling teams to compare actual wellbore behaviour to the predicted wellbore path and make operational decisions as needed. If the directional response is not as expected engineers may look back at the drilling settings and, if required, reconsider the BHA design for future runs.
The utilization of real-time data, along with historical BHA performance and formation information, is quite valuable. This closes a feedback loop between field findings and future BHA design.
Material Selection and Maintenance

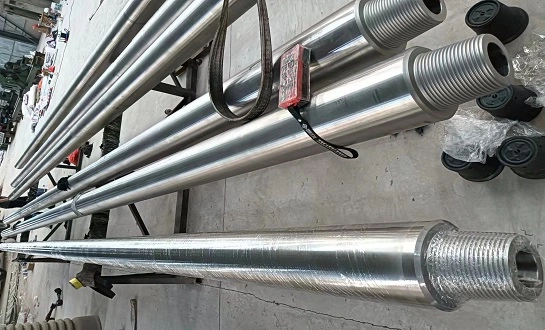

The material and size of the drill collar must be suitable for the drilling application for which it is designed. Depending on your operating requirements, you may decide between standard steel collars and non-magnetic collar choices.
Material selection has to take into account the mechanical and operational demands of the component and be compatible with the remainder of the BHA.
Also key to the job is inspection and upkeep. Regular inspections may assist to discover wear, damage, connection difficulties or other situations that may effect the functioning of the component. Keeping the drill collar in good shape means more predictable BHA behaviour when drilling.
Conclusion
The positioning of drill collars may alter directional control by changing the weight and stiffness distribution of the BHA . However, collar position should never be considered as an independent aspect.
The last directional reaction is a function of stabilizer spacing, collar size, bit characteristics, hole geometry, formation behaviour, WOB, and the desired trajectory. A good BHA design combines these features and refines the configuration using modelling and field data when possible.
In directional drilling projects the practical aim is not to only insert the drill collar at a certain position. It is to create a full BHA that will deliver a predictable reaction under the projected drilling circumstances.
