Leveling rolls are precision-engineered components outlined to rectify shape surrenders in steel strips, such as waviness, edge swells, and center buckles. By applying controlled weight and bowing powers, these rolls successfully redistribute inner stresses inside the metal, coming about in surprisingly level and dimensionally exact steel strips. The prepare not as it were progresses the tasteful request of the last item but too improves its mechanical properties and processability in downstream applications.
How Do Leveling Rolls Work to Eliminate Steel Strip Defects?
The operation of leveling roll is based on a modern interaction of mechanical strengths and fabric properties. As the steel strip passes through a arrangement of carefully organized rolls, it experiences rehashed cycles of bowing and inflexible. This prepare, known as pressure leveling, successfully redistributes the inner stresses inside the metal structure.
The Mechanics of Stress Redistribution
When a steel strip with shape abandons enters the leveling framework, it experiences substituting upper and lower rolls. These rolls are situated to make a wave-like way for the strip. As the metal voyages through this undulating course, it encounters controlled plastic distortion. The ranges of the strip that were at first beneath pressure are compressed, whereas the compressed locales are stretched.
This rehashed flexing activity serves to equalize the stretch dissemination over the whole width and length of the strip. By doing so, it viably kills remaining stresses that cause levelness surrenders. The result is a steel strip with altogether moved forward planarity and dimensional steadiness.
Precision Control and Adjustability
One of the key advantages of modern leveling rolls is their high degree of adjustability. Advanced systems allow operators to fine-tune various parameters, including:
- Roll gap: The distance between upper and lower rolls can be adjusted to accommodate different strip thicknesses and material properties.
- Roll tilt: Slight angular adjustments to the rolls can address edge wave defects.
- Intermesh: The depth of penetration between upper and lower rolls can be modified to control the intensity of the leveling action.
- Strip tension: Proper tension control throughout the leveling process ensures optimal results.
These adjustable features enable manufacturers to achieve precise flatness control across a wide range of steel grades and thicknesses, making leveling rolls an incredibly versatile solution for modern steel production lines.
Leveling Roll Technology: Key Components and Their Impact on Flatness
The effectiveness of leveling rolls in improving steel strip flatness is largely attributed to their sophisticated design and the quality of their components. Understanding these key elements provides insight into how leveling technology achieves such remarkable results.
Roll Material and Surface Treatment

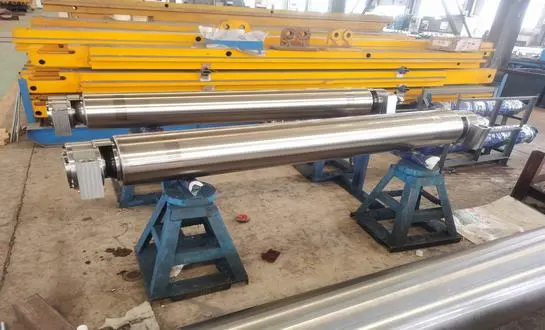

The rolls themselves are typically manufactured from high-quality alloy steel, chosen for its excellent wear resistance and dimensional stability. The surface of these rolls undergoes precision grinding and, in many cases, specialized hardening treatments. These processes ensure:
- Consistent contact with the steel strip
- Minimal wear over extended production runs
- Ability to withstand high loads without deformation
The surface finish of the rolls is crucial, as it directly impacts the quality of the leveled strip. A finely polished surface helps prevent marking or scratching of the steel during the leveling process.
Bearing Systems and Roll Support
High-precision bearings are essential for maintaining accurate roll positioning and smooth operation. These bearings must withstand significant loads while allowing for minute adjustments. The roll support structure is equally important, providing:
- Rigid foundation to minimize vibration
- Precise alignment of rolls across the width of the strip
- Capability for quick roll changes to minimize downtime
Advanced leveling systems often incorporate hydraulic or electromechanical actuators for real-time adjustment of roll positions, enabling dynamic response to variations in strip properties or flatness requirements.
Sensing and Control Systems
Modern leveling roll installations are equipped with sophisticated sensing and control systems. These may include:
- Laser-based flatness measurement devices
- Tension sensors to monitor strip stress
- Thickness gauges for precise material tracking
- Advanced control algorithms for real-time process optimization
These systems work in concert to provide continuous feedback and adjustment, ensuring that the leveling process adapts to subtle variations in the incoming material properties or desired output specifications.
Leveling Rolls vs. Tension Leveling: Which Method Delivers Better Results?
While both leveling rolls and tension leveling aim to improve steel strip flatness, they operate on different principles and offer distinct advantages in various scenarios. Understanding the differences between these methods can help manufacturers choose the most appropriate technology for their specific requirements.
Principles of Operation
Leveling rolls, as discussed earlier, rely on repeated bending and unbending of the strip to redistribute internal stresses. Tension leveling, on the other hand, primarily uses longitudinal tension to stretch the material beyond its yield point, effectively "ironing out" shape defects.
Advantages of Leveling Rolls
- Greater versatility in handling a wide range of material thicknesses
- More effective for correcting severe shape defects, including crossbow and coilset
- Better suited for processing high-strength steels
- Can achieve higher levels of flatness in a single pass
- Less risk of surface marking, especially for sensitive materials
Advantages of Tension Leveling
- Generally requires less floor space
- Can be more energy-efficient for certain applications
- May offer better control over residual stresses in thin strips
- Often preferred for very thin gauge materials
In practice, many advanced steel processing lines incorporate both technologies, leveraging the strengths of each method to achieve optimal results across a diverse range of products. The choice between leveling rolls and tension leveling often depends on factors such as:
- Material properties (thickness, strength, surface sensitivity)
- Types of shape defects commonly encountered
- Production volume and variety
- Space constraints and energy considerations
- Specific quality requirements of end-use applications
By carefully evaluating these factors, manufacturers can select the most appropriate flatness correction technology to meet their production goals and customer demands.
Conclusion
In conclusion, leveling rolls have revolutionized the steel industry's capacity to create level, high-quality strips with exceptional accuracy. Their modern plan, coupled with progressed control frameworks, permits for unparalleled levelness adjustment over a wide range of steel grades and thicknesses. As the request for prevalent steel items proceeds to develop in businesses extending from car to development, the part of leveling roll innovation in guaranteeing steady quality and execution gets to be progressively crucial.
For more information on how leveling rolls can enhance your steel production capabilities or to explore custom solutions tailored to your specific needs, please don't hesitate to contact us at oiltools15@welongpost.com. Our team of experts at Welong is ready to assist you in optimizing your steel processing operations for maximum efficiency and quality.
