How Shaft Forging Meets Global Railway Safety Standards?

Which ISO Standards Apply to Forged Railway Shafts?

Manufacturing of railway shafts requires strict control of the properties of materials used, manufacturing process and inspection procedures. International standards differ, but they all guide makers of railway components to ensure that the same level of quality and safety is maintained.

While exact criteria may vary based on railway systems, geographies and client demands, a number of generally recognised standards are often referred to throughout the fabrication and assessment of forged components.

ISO 13261: Railway applications - Wheelsets and bogies - Axles

Railway axles and shafts are safety crucial items since they are subjected to cyclic mechanical stresses over their service life. Manufacturers shall ensure that forged shafts meet requirements relating to:

• Quality of materials and traceability
• Dimension accuracy
• Mechanical characteristics
• Surface finish
• Internal flaw inspection
• Inspection procedures

Standards for railway applications give technical guidance to manufacturers of wheelset components, such as EN 13261 for railway axles. These standards allow to reach adequate strength and dependability of the railway shafts for the operating circumstances.

ISO 9001: Quality Management Systems

ISO 9001 is not only for railway shafts but is a key tool in developing robust industrial processes.

A certified quality management system assists manufacturers in controlling:

• Manufacturing Processes
• Supplier management
• Systems of documentation
• Inspection history
• Continuous improvement initiatives

For firms buying forged shafts, reviewing a supplier’s quality management processes may provide great insight into consistency and dependability in production.

ISO 6892: Metallic materials - Tensile testing

Mechanical testing is an important aspect to confirm the performance of forged shafts . ISO 6892 is a standard for tensile testing of metallic materials that helps producers determine critical features such as:

• Tensile strength
• Yield stress
• Material ductility Elongation

These test findings enable producers and customers to ensure the forged shafts fulfil the specified mechanical performance criteria before entering service.

With the use of proper standards and stringent production control, shaft forging providers may manufacture railway components with enhanced dependability and uniform quality.

Fatigue Resistance: Why Forged Shafts Excel in Rail Applications

Railways’ shafts are under continual cyclic loading. Through service, they are subjected to repetitive stresses from train weight, acceleration, braking, vibration and track conditions. Therefore, fatigue resistance is one of the most significant performance criteria for the railway components.

Forged Shafts Forged shafts have the benefit in terms of structural integrity and long term endurance over various other production processes . The forging process increases the internal features of the metal.

Enhanced Grain Structure

The major benefit of shaft forging is the formation of a polished, continuous grain structure.

When forging , the metal is pushed and formed under regulated circumstances . This method helps to match the grain flow with the geometry of the shaft and reduces weak areas that occur during operation.

The consistent grain structure allows the shaft to resist repeated stress and also leads to enhanced resistance to fatigue damage.

This structural advantage helps extend service life and enhance operational reliability for railway applications where components may experience millions of loading cycles.

Improved Mechanical Properties

The forging process can improve several mechanical properties which are important for railway shafts.

By controlled heating, shaping and further processing, forged shafts may attain:

• More strength
• Increased toughness
• Enhanced impact load resistance
• Lower chance of internal defects

Unlike certain production methods that may leave the material with porosity or irregular internal structures, correctly managed forging helps develop a denser material structure.

These are crucial traits for railway operators and equipment manufacturers since shaft failures may lead to serious safety concerns, downtime and maintenance costs.

Resistance to Crack Propagation

The formation of cracks is a key problem for components subjected to repetitive stress. Forged shafts have a finer interior structure giving better resistance against fracture propagation.

The presence of a highly regulated grain structure may assist slow down the formation of fractures when minor faults arise compared to materials with bigger internal discontinuities.

But forging alone does not mean defect-free performance. The shaft quality must be assured by appropriate inspection procedures including ultrasonic testing and other non-destructive testing methods.

When combined with excellent forging methods and efficient inspection, manufacturers may make railway shafts that provide reliable performance throughout their working life.

Choosing a producer with a good track record and robust process controls is vital when buying forged railway components. Welong is a manufacturer of forged parts, capable of creating dependable parts according to customer’s need with tight quality control.

How NDT (Non-Destructive Testing) Ensures Railway Shaft Reliability

Non-Destructive Testing (NDT) is an important phase in the quality control of ferric railway shaft production. These inspection techniques enable producers to spot possible faults without destroying the part, helping to verify shafts satisfy safety and performance specifications before shipment.

NDT gives added assurance for safety-critical railway components by identifying internal and surface-related problems that can affect long-term operation.

The inspection methods are adapted to the material properties, the design of shaft and the customer requirements.

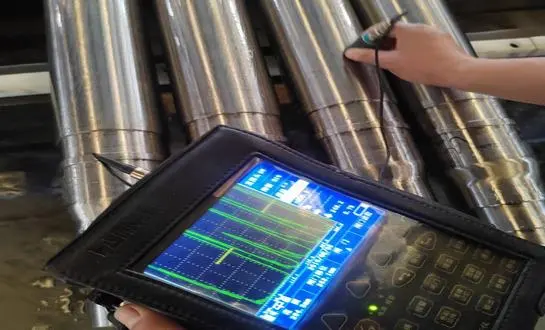

Ultrasonic Testing (UT)

Visual examination does not reveal the interior state of the forged shaft . Therefore , Ultrasonic Testing is widely utilised for inspection of forged shafts .

The UT examination high frequency sound waves are sent into the material. Differences in the signals reflected might suggest possible problems such as:

• Internal cracks
• Appendices
• Material breaks
• Irregularities in internal structure

Ultrasonic testing provides producers with useful data on the interior quality of big forged components and helps verify the uniformity of the forging process.

UT is a significant technique for enhancing the dependability of components in railway applications, where internal flaws may have an impact on fatigue performance over lengthy service periods.

Magnetic Particle Inspection (MPI)

MPI is mostly used for locating surface and near-surface discontinuities in ferromagnetic materials.

During the inspection procedure, the forged shaft is magnetised and magnetic particles are applied to the surface. Discontinuities that break the magnetic field might provide apparent signals for inspectors.

MPI is very effective for finding:

• Cracks on surface
• Defects Caused by Grinding
• Signs of being tired out

Early detection of these problems may help avoid putting potentially harmful components into operation.

Eddy Current Testing (ECT)

Further inspection technology for conducting materials is Eddy Current Testing.

The approach is based on detection of surface and near-surface abnormalities using electromagnetic waves. It might be beneficial in identifying:

• Some surface cracking
• Changes to material
• Conditions related to corrosion

ECT is often valued for its rapidity and capacity to perform multiple inspections during manufacturing or maintenance processes.

Why NDT Matters for Railway Shaft Manufacturing

A successful shaft forging process is more than just forging the metal to the correct specifications. Quality assurance must continue throughout the production process, including material inspection, machining, heat treatment verification, and final testing.

This paper discusses how, with the use of forging skills and proper NDT processes, producers can:

• Lower the chances of sudden breakdowns
• Enhance product consistency
• Enable longer service intervals
• Build more confidence for customers of railways

When a company buys forged railway shafts it is necessary to know the inspection capabilities of a supplier as part of the supplier assessment process. Structured quality control systems enable manufacturers to better handle demanding applications where dependability and safety are critical.

Conclusion

Shaft forging is a critical process in the manufacture of railway parts offering high strength, durability and consistent performance. Controlled manufacturing processes, material selection, mechanical testing and inspection methods of the highest standards enable forged shafts to meet the demanding requirements of modern railway applications.

International quality practices and testing procedures help manufacturers maintain reliable production standards and fatigue-resistant forged structures help extend service life and improve operational safety.

Choosing the right forging partner is a key factor for railway equipment manufacturers and industrial buyers to achieve consistent component quality. A good supplier should provide not just production skills but also excellent process control and inspection capabilities.

Welong offers forged components solutions, which comply with the rigorous industrial applications. Welong cooperates with clients to produce dependable goods according to needs via quality management and customised production assistance.

For more information about forged shafts and other industrial forging products, please contact us at oiltools15@welongpost.com.
