Key inspection points for drilling hose integrity
Visual examination of the outer cover

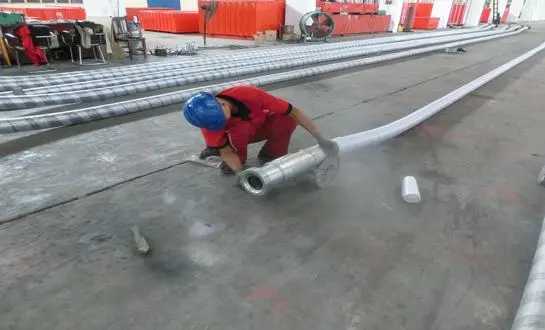

A practical initial step when examining Drilling Hoses before usage is a visual examination of the outside cover. Check all exposed surface for cuts, abrasion, cracks, blisters, exposed reinforcement, strange bulges or other apparent changes.
Special care should be given to regions subjected to frequent bending, contact with equipment and movement around connection points. Don’t dismiss a bulge or other deformation in a localised area, it may be a sign of a problem under the outer layer.
When needed, inspection results must be included in the site maintenance protocol. If the damage has a detrimental effect on the pressure containment structure of the hose, or if the service condition of the hose is suspect, the hose should be taken out of service until thoroughly examined.
Checking for end fitting security
End fittings are essential to the pressure integrity of Drilling Hoses. Check the connecting area for signs of corrosion, fractures, deformation, looseness, leaking, or other abnormal circumstances.
Also inspect the hose-to-fitting connection for any evidence of movement or separation. other obvious displacement, damage to connecting components or other indication that the fitting is no longer secure must be carefully evaluated. Before operation,
The right inspection approach will depend on the hose assembly and the fitting design. Operators should not depend just on visual checks, but should follow appropriate manufacturer instructions and site protocols.
Internal inspection using specialized equipment
It might be difficult to see from the exterior what condition the inner lining is in. If the design of the hose, its service history or the inspection technique necessitate interior investigation, then appropriate equipment may offer further information.
A borescope may be used to inspect accessible interior surfaces for issues such as blisters, punctures, liner damage or other irregularities. API material on rotary hoses used with pressurised gases further requires the use of a fiber-optic borescope to check the inner surface of the liner and that liner breaches such as bulges, blisters, or punctures be rejected from continued use.
The method of inspection should be chosen according to the hose construction, service circumstances and appropriate inspection standards. Internal examination is especially helpful when the hose’s outward appearance doesn’t provide a clear picture of its integrity.
Proper maintenance practices to extend hose lifespan
Implementing a regular cleaning regimen
Drilling Hoses are exposed to drilling mud, dirt, chemicals and other pollutants during regular operation. Cleaning the hose makes it easy to assess for surface damage and minimises unwanted contamination.
Cleaning procedures must be suitable for the hose materials and the manufacturer’s recommendations. Do not clean with substances or methods which may harm the outer cover, fittings or other part of the hose.
After cleaning, examine the hose again for cuts, abrasion, leaking, distortion or other alteration. Cleaning should help inspection and maintenance, not take their place.
Proper storage and handling techniques
Proper storage helps to avoid damage to Drilling Hoses while not in operation. Hoses should be kept to prevent undue kinking, crushing, severe bends and contact with anything likely to harm the cover.
Protect stored hoses from high heat, direct sunshine, ozone generating equipment, chemicals and other environmental conditions that may harm hose material, if appropriate. Storage procedures should also guaranty that the hose is not exposed to loads which it was not intended for.
Do not pull hose over sharp or abrasive surfaces during shipping, installation or removal. Bending must be within the limits stated by the manufacturer. Hose should not be pushed into a narrower bend radius to accommodate a specific installation.
Scheduled replacement and rotation
Do not keep Drilling Hoses in use continuously just because no visible exterior damage may be seen. Decisions to replace should be based on inspection findings, service history, pressure exposure, operating circumstances, manufacturer recommendations and appropriate site procedures.
Hose having any structural damage, leakage, abnormal deformation or other issues above its stipulated service limitations should be examined before to any further use.
In operations where various hoses are used under varied degrees of mechanical or pressure loading, keeping service records may also allow operators to identify equipment that is subject to greater levels of usage and to schedule inspections or replacement more efficiently. Any rotation programme used should be based on real working circumstances, not the assumption that all hoses have the same service history.
Industry standards: Compliance for optimal safety
Understanding API Specification 7K
API Specification 7K is a key industry reference for suitable drilling and well-servicing equipment. Spec 7K’s specified scope for API’s comprises high pressure mud and cement hoses and contains requirements relating to the design, production and testing of suitable new equipment.
Operators and procurement teams should confirm the edition and relevant requirements before specifying Drilling Hoses. The API’s current standards information indicates Spec 7K as the 6th Edition with errata released, and the API standards roadmap also shows further work planned on the specification.
Do not assume one standard applies to every installation, but check the requirements against the hose specification, manufacturer documentation, project requirements and relevant legislation. This helps guarantee that the chosen hose is compatible with the service it will be subjected to.
Implementing ISO 9001 quality management principles
ISO 9001 is a Quality Management System standard, not a product specific Drilling Hose safety standard. Its usefulness to hose management consequently lies primarily in the area of process control, documentation, competence, monitoring and ongoing development.
For example, a quality management system may help ensure consistent processes for hose procurement, incoming inspection, hose identification, hose maintenance records, hose nonconformance handling, and hose supplier assessment.
The current ISO information says the published version is ISO 9001:2015 and a new edition is to be published in 2026. So while considering ISO 9001 organisations should check the edition and certification criteria.
Regular training and certification for personnel
Personnel engaged in inspection, installation, operation or maintenance of Drilling Hoses should be familiar with the intended service conditions of the hose and the appropriate procedures for the equipment.
Training should include hose identification, proper handling, inspection sites, connecting methods, operational constraints, abnormal situations and actions to be taken if damage is identified.
Training needs should be based on the organization's processes, relevant legislation, equipment requirements, and the duties given to each position. If a project or employer requires formal qualifications or third-party training, staff should possess the appropriate credentials and documents.
The IADC Drilling Manual also provides an industry standard reference for drilling operations, training, maintenance and troubleshooting. The 13th edition, issued in 2025, has a chapter devoted to high pressure drilling hoses.
Conclusion
To use Drilling Hoses safely you need the right equipment, the right working circumstances, a systematic inspection regime, correct handling and documented maintenance methods. Many faults may be detected visually, and many others may need extra inspection procedures if the interior state of the hose cannot be verified from the exterior.
Standards such as API Specification 7K may prescribe significant technical requirements for appropriate equipment, and quality management methods can assist organisations in establishing uniform inspection, documentation and supplier-control procedures. Always refer to the appropriate current standard, manufacturer instructions and project or site procedures for specific requirements.
FAQ
1. How often should Drilling Hoses be inspected?
Drilling hoses should be examined before use and at intervals specified by the manufacturer and relevant standards and the site maintenance programme. If hoses are subjected to demanding circumstances, frequent movement or pressure cycling, or exhibit indicators of rapid wear, the inspection frequency may have to be increased.
Not all hoses should be set to an interval. The inspection programme should be representative of the actual service circumstances and recorded equipment requirements.
2. What are the signs that a Drilling Hose needs replacement?
Significant cuts or abrasion, exposed reinforcement, fractures, blisters, abnormal bulging, permanent deformation, leaking, broken end fittings, or other changes which suggest the hose may no longer be suitable for the service for which it was designed.
Also, a hose should be considered if the service history, inspection findings or operational exposure suggest continuous usage may not be suitable. If a defect is discovered the hose should not be reintroduced to high-pressure service until properly evaluated.
3. Can Drilling Hoses be repaired if damaged?
The structure of the Drilling Hose, the kind of damage, the manufacturer’s standards, the regulations that apply and the capability of the repair facility all determine whether a Drilling Hose can be fixed.
Operators should not make unauthorised repairs to high pressure hose assemblies. Hoses that are damaged or questioned as to their integrity under pressure should be withdrawn from service and assessed in accordance with the appropriate process. If the damage cannot be successfully repaired or if the hose does not satisfy the acceptable service conditions, replacement may be needed.
