Integral vs. Welded: Key Structural Differences

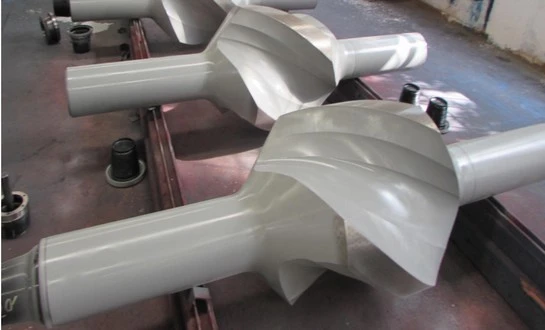

The fundamental difference between integral and welded blade stabilizers lies in their construction method. An Integral Blade Stabilizer is machined from a single piece of high-strength alloy steel, resulting in a seamless, one-piece design. This manufacturing process eliminates weak points and potential failure areas associated with welded joints.
Material Composition and Strength
Integral blade stabilizers are typically made from premium grade materials such as AISI 4145H, 4145H MOD, or 4330V alloy steel. These materials offer exceptional strength-to-weight ratios and superior resistance to abrasion and impact. The homogeneous structure of the integral design ensures uniform load distribution across the entire tool, enhancing its overall durability.
Blade Configuration and Stability
The blades on an integral stabilizer are machined directly from the body material, creating a more rigid and stable structure. This configuration provides better gauge protection and maintains tool diameter more effectively over time. In contrast, welded stabilizers may experience blade loosening or separation under extreme drilling conditions, compromising tool performance and potentially leading to costly downtime.
Performance in High-Stress Drilling Environments
Extended reach drilling presents numerous challenges, including high temperatures, extreme pressures, and abrasive formations. In these demanding conditions, the performance gap between integral and welded stabilizers becomes more pronounced.
Vibration Dampening and Directional Control
The solid construction of an Integral Blade Stabilizer provides superior vibration dampening properties. This reduction in vibration translates to improved directional control, smoother drilling operations, and reduced wear on other bottomhole assembly (BHA) components. The enhanced stability offered by integral stabilizers is particularly beneficial in maintaining wellbore trajectory in extended reach applications.
Wear Resistance and Longevity
Integral blade stabilizers exhibit exceptional wear resistance due to their seamless design and advanced hardfacing options. Manufacturers offer various hardfacing materials, such as HF1000 to HF5000, tailored to specific formation characteristics. This customization allows for optimized wear resistance and extended tool life, crucial factors in the cost-effectiveness of ERD operations.
Cost-Benefit Analysis: Long-Term Investment Perspective
While the initial cost of an Integral Blade Stabilizer may be higher than that of a welded stabilizer, the long-term benefits often outweigh the upfront investment.
Reduced Downtime and Operational Efficiency
The superior reliability of integral stabilizers translates to fewer trips and less downtime for tool replacement or repair. This increased operational efficiency can result in significant cost savings over the course of a drilling project, particularly in offshore or remote locations where rig time is at a premium.
Maintenance and Refurbishment Considerations
Integral blade stabilizers generally require less frequent maintenance and have a longer service life compared to welded stabilizers. When refurbishment is necessary, the solid construction of integral stabilizers allows for more comprehensive restoration, often enabling multiple cycles of use before replacement is required. This extended lifespan contributes to a lower total cost of ownership over time.
Conclusion
In the context of extended reach drilling, the Integral Blade Stabilizer emerges as the superior choice when compared to welded alternatives. Its robust construction, enhanced performance in high-stress environments, and long-term cost-effectiveness make it an invaluable tool for modern drilling operations. As the oil and gas industry continues to push the boundaries of extended reach drilling, the reliability and efficiency offered by integral blade stabilizers will play an increasingly critical role in successful project execution.
For more information about our high-quality Integral Blade Stabilizers and how they can improve your extended reach drilling operations, please contact us at oiltools15@welongpost.com.
FAQ
1. What are the main advantages of using an Integral Blade Stabilizer in extended reach drilling?
The main advantages include improved structural integrity, better vibration dampening, enhanced directional control, and increased wear resistance. These factors contribute to more efficient drilling operations and reduced risk of equipment failure in challenging extended reach drilling environments.
2. How does the manufacturing process of an Integral Blade Stabilizer differ from that of a welded stabilizer?
An Integral Blade Stabilizer is machined from a single piece of high-strength alloy steel, resulting in a seamless, one-piece design. This eliminates weak points associated with welded joints. Welded stabilizers, on the other hand, involve attaching separate blade components to the body through welding processes.
3. Are Integral Blade Stabilizers suitable for all types of drilling operations?
While Integral Blade Stabilizers excel in high-stress environments like extended reach drilling, they can be beneficial in various drilling operations. However, the choice between integral and welded stabilizers should be based on specific project requirements, formation characteristics, and economic considerations.
