Drilling Precision: RSS vs Mud Motor Accuracy
When it comes to drilling precision, the battle between Rotary Steerable Systems (RSS) and Drilling Mud Motors is intense. Each system brings unique advantages to the table, influencing the accuracy and efficiency of directional drilling operations.
RSS: The Precision Powerhouse
By allowing the drill string to remain continuously rotating while steering, Rotary Steerable Systems completely transformed directional drilling. Here are a few advantages of this continuous rotation:
- Enhanced borehole quality due to reduced friction and stick-slip
- Improved hole cleaning, leading to better weight transfer to the bit
- More accurate well placement, crucial for maximizing reservoir contact
Improved wellbore smoothness and trajectory control are outcomes of the RSS's on-the-fly changes made possible by its high-tech sensors and real-time communication capabilities. When digging extended reach wells or through complicated geological formations, this degree of precision is invaluable.

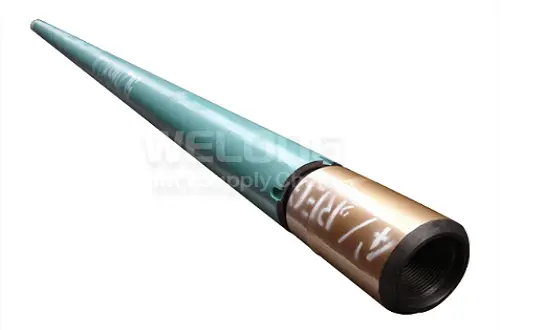

Mud Motor: The Reliable Workhorse
The Drilling Mud Motor, while less sophisticated than RSS, offers its own set of advantages:
- Simpler operation and lower initial costs
- Effective in shorter, less complex well designs
- Capable of achieving high build rates in certain formations
Mud motors excel in situations where rapid changes in direction are needed, such as in horizontal drilling sections or when navigating through challenging formations. Their simplicity also means fewer potential points of failure, which can be crucial in remote or harsh environments.
Accuracy Comparison in Various Drilling Scenarios
The choice between RSS and Drilling Mud Motor often depends on the specific drilling scenario:
- For extended reach drilling, RSS typically outperforms mud motors due to its ability to maintain a consistent trajectory over long distances.
- In formations with interbedded hard and soft layers, RSS provides more consistent performance and better steerability.
- For shorter, less complex wells, mud motors can achieve comparable results at a lower cost.
It's important to note that advancements in mud motor technology, such as adjustable bent housing and improved power sections, have narrowed the gap in accuracy between the two systems in certain applications.
Long-Term ROI: Analyzing Equipment Lifespan
When evaluating the cost-performance ratio of Rotary Steerable Systems (RSS) and Drilling Mud Motors, it's crucial to consider the long-term return on investment (ROI). This analysis extends beyond the initial purchase price to encompass factors such as equipment lifespan, maintenance requirements, and overall operational efficiency.
Durability and Maintenance: RSS vs Mud Motor
Rotary Steerable Systems, with their complex electronic components and sophisticated mechanics, generally have a higher upfront cost. However, their design often leads to:
- Extended operational lifespan due to reduced wear from continuous rotation
- Lower frequency of tripping operations, reducing overall wear and tear
- More predictable maintenance schedules, allowing for better planning and cost management
In contrast, Drilling Mud Motors are known for their robustness and simpler construction. This translates to:
- Lower initial investment costs
- Easier on-site repairs and maintenance
- Greater resilience in harsh drilling environments
However, mud motors may require more frequent replacements or repairs, especially in challenging drilling conditions or when pushed to their operational limits.
Operational Efficiency and Downtime Reduction
The impact of equipment choice on operational efficiency is a significant factor in long-term ROI:
- RSS typically results in faster overall drilling rates due to continuous rotation and real-time steering capabilities
- Reduced tripping time with RSS can lead to substantial cost savings on large projects
- Drilling Mud Motors may require more frequent bit changes or adjustments, potentially increasing non-productive time
It's important to note that the efficiency gains of RSS can often offset its higher initial cost, especially in long or complex well designs.
Cost Analysis Over Time
To accurately assess the long-term ROI, operators must consider:
- Initial equipment costs
- Expected lifespan under specific operating conditions
- Maintenance and repair costs over the life of the equipment
- Potential cost savings from improved drilling efficiency and reduced downtime
While RSS may have a higher upfront cost, its ability to drill faster and more accurately can result in significant savings over the life of a project. Conversely, the lower initial cost of Drilling Mud Motors can be attractive for shorter-term projects or in situations where budget constraints are a primary concern.
Optimizing Well Trajectories: Which System Excels?
The ability to optimize well trajectories is a critical factor in modern drilling operations, directly impacting production rates, reservoir access, and overall project economics. Both Rotary Steerable Systems (RSS) and Drilling Mud Motors offer unique capabilities in this arena, each excelling in different aspects of trajectory control and optimization.
RSS: Precision in Complex Trajectories
Rotary Steerable Systems shine in scenarios requiring complex well paths:
- Ability to drill smoother, more consistent wellbores
- Superior control in 3D well profiles, including S-shaped and horizontal sections
- Real-time trajectory adjustments based on downhole measurements
These capabilities make RSS particularly effective in:
- Multilateral well designs
- Extended reach drilling
- Navigating through narrow pay zones
The precision of RSS allows for optimized well placement, maximizing reservoir contact and potentially increasing production rates.
Mud Motor: Flexibility in Trajectory Changes
While Drilling Mud Motors may lack the sophistication of RSS, they offer advantages in certain trajectory scenarios:
- Capability to achieve high build rates for quick directional changes
- Effective in shorter horizontal sections
- Suitable for simpler well designs with fewer directional challenges
Mud motors excel in situations where:
- Rapid course corrections are needed
- Drilling through formations with varying hardness
- Cost-effective solutions are required for less complex well profiles
Comparative Performance in Different Well Types
The choice between RSS and Drilling Mud Motor often depends on the specific well type and trajectory requirements:
- For long horizontal wells, RSS typically provides better trajectory control and hole quality
- In vertical or slightly deviated wells, mud motors can be more cost-effective while maintaining adequate directional control
- For wells with multiple targets or complex geological structures, RSS offers superior navigation capabilities
It's worth noting that advancements in mud motor technology, such as adjustable bend angles and improved power sections, have expanded their capabilities in certain trajectory optimization scenarios.
Impact on Overall Project Economics
When evaluating trajectory optimization capabilities, consider:
- Potential production gains from improved well placement
- Reduced drilling time and associated costs
- Lower risk of wellbore instability issues
While RSS may offer superior trajectory control, the cost-benefit analysis must account for the specific project requirements and budget constraints. In some cases, a well-designed Drilling Mud Motor system can achieve satisfactory results at a lower overall cost.
Conclusion
There are a lot of things to think about when choosing between a Rotary Steerable System and a Drilling Mud Motor. Some of them are drilling accuracy, long-term return on investment (ROI), and the ability to make the route better. It costs more up front, but RSS is more accurate and works well with complicated well designs. If it leads to higher efficiency and output, that cost might be worth it. Drilling Mud Motors are still a cheap choice for well plans that aren't too complicated or when you need to change direction quickly.
Even though drilling technology is always getting better, these two technologies will probably always be different, with their own pros and cons. Drilling workers and oil companies need to carefully think about their project needs, budgets, and long-term goals before making this important equipment choice.
