Optimised Backup Roll designs improve roll support and reduce deformation under load to assist manufacturers achieve more dependable levelling performance. The benefits are especially important in sectors such as automotive, construction and precision metal fabrication where material consistency and dimensional accuracy are vital.
The new improved Backup Roll technology is used to solve typical cold rolling problems such as uneven strip profile, residual stress and form flaws. Manufacturers may increase the quality of the product while retaining the manufacturing processes efficient by improving the distribution of the force and controlling the roll system better.
Tension levelling principles in cold rolling
Cold rolling uses an essential technique known as tension levelling to enhance the flatness and mechanical performance of metal sheets and strips. As it travels through a sequence of rollers, the strip is subjected to regulated tension and bending forces which serve to eliminate residual stresses and rectify form flaws.
The primary idea behind tension levelling is controlled plastic deformation. The use of suitable tension and bending conditions enables the stepwise correction of parts of the strip with non-uniform stress distribution, thereby providing better flatness and dimensional stability.
The efficiency of tension levelling relies on the interplay of material qualities, equipment setup and operational factors. By properly controlling these elements, producers may optimise the levelling process for diverse materials and manufacturing needs.
Mechanics of tension levelling
During the tension levelling procedure the metal strip is subjected to a mixture of tension and bending pressures. The distortion is alternately in the strip thickness as the strip passes through the roll arrangement.
This controlled deformation allows the redistribution of internal tensions and minimises shape flaws induced by prior rolling processes. The applied strip tension is such that diverse portions of the material are deformed enough to make the internal stress state tend towards being more uniform.
The efficacy of tension levelling depends on a few critical criteria such as:
- Applied tension: Shows the amount of tension applied to the strip during processing.
- Roll diameter: Influences the bending circumstances and deformation behaviour.
- Roll spacing: Affects the contact interaction between the strip and rollers.
- Number of rolls: defines the entire deformation route and levelling effectivity.
- Thickness of strip and material properties: Effects on needed tension and bending conditions.
By manipulating these factors operators may enhance flatness control while retaining the desired mechanical qualities of the treated material.
Benefits of tension levelling in cold rolling
There are several ways in which tension levelling may benefit contemporary cold rolling operations:
1. Enhanced flatness: The method eliminates residual stresses and form flaws, resulting in flatter sheets with higher dimensional consistency.
2. Improved mechanical properties: Controlled deformation leads to a more consistent behaviour of the material and decreases fluctuations due to unequal internal stress.
3. Improved dimensional stability: Levelled sheets are less prone to undesired deformations during additional processing and/or final application.
4. Better surface quality: Stable deformation conditions lead to the reduction of surface imperfections and a better look of the final goods.
5. Reduced Springback: The use of tension levelling may enhance the forming performance and the predictability of the behaviour of the processed materials in downstream processes.
These benefits make tension levelling a vital technique for applications that need high-precision and constant sheet performance.

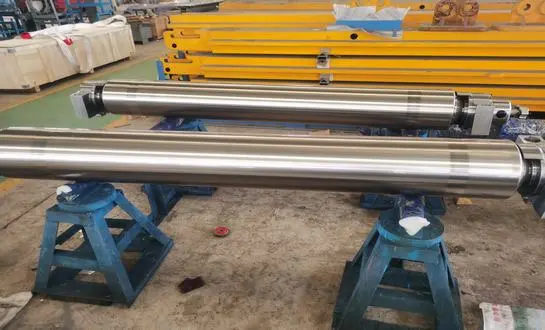

Backup rolls' contribution to sheet flatness
The Backup Roll elements are vital to the attainment of sustained sheet flatness in cold rolling and tension levelling processes. Backup rolls are used simultaneously with work rolls to give mechanical assistance and to help maintain a more constant roll gap when heavy processing loads are encountered.
If work rollers are not properly supported they tend to deflect too much in operation. This deformation causes an uneven pressure distribution, which may cause difficulties with the fluctuation of thickness and strip shape.
Backup Rolls enhance the rigidity of the roll system, leading to less work roll bending and improved rolling process stability. This means improved control over strip profile, thickness accuracy and overall product quality for the makers.
Pressure distribution and roll deflection
The main purpose of a Backup Roll is to limit work roll deflections under high rolling forces. The work rollers are subjected to high mechanical stresses in the cold rolling and tension levelling processes. In case of inadequate support these pressures might bend the work rollers and produce unequal distribution of pressure over the width of the strip.
Such unequal pressure may lead to common form flaws, including:
- Excessive deformation at strip edges generates edge waves
- Middle buckling with inadequate support in the middle area
- Quarter buckle induced by unequal distortion throughout strip width
Backup Rolls may assist solve these problems by increasing the total stiffness of the roll set. Their wider diameter and supporting role allow for a more uniform distribution of rolling forces, hence minimising the stress concentration at certain locations.
A well designed Backup Roll system leads to a more stable roll gap which is necessary for strip thickness and flatness management. This becomes especially significant in cold rolling applications where slight profile deviations might influence subsequent forming, coating, or assembly operations.
Thermal management and crown control
Another key aspect impacting sheet flatness during rolling operations is the thermal conditions. Friction between the rollers and strip material, and deformation heat created during processing may cause temperature variations throughout the roll surface.
Thermal expansion may be caused by temperature differences, leading to changes in the roll profile and the final form of the strip The need for effective heat control is to ensure the uniform rolling performance.
The Backup Rolls are positioned distant from the direct contact region of the work roll and strip thus the heat effect on the Backup Rolls is less than that on the work roll. This in turn improves the thermal stability of the whole roll stack.
Other control mechanisms may also be used in modern rolling systems, such as:
- Enhanced cooling systems for temperature distribution control
- Better roll surface designs for profile stability
- Monitoring technology for assessing operation conditions
Backup Rolls support the sheet better than the working rolls and help to keep the sheet flat during the process because of improved temperature management and mechanical support.
Implementing backup rolls in existing levellers
The use of Backup Roll systems in current tension levellers may enhance the functionality of the equipment and also provide greater management of the strip flatness. However, effective implementation demands comprehensive examination of the equipment structure, the operating circumstances and the production requirements.
Factors such as available installation space, mechanical capacity, roll arrangement and compatibility with existing control systems should be considered by manufacturers wishing to modify existing levellers.
A well designed integration procedure ensures that Backup Rolls will provide the anticipated gains and will not significantly impact current manufacturing processes.
Design considerations for retrofit
When adding Backup Rolls to existing tension levellers a number of critical design issues should be considered:
1. room conditions: The present leveller structures have to provide enough room for the new roll components and have to provide easy access for operation and maintenance.
2. Load capacity: The frame structure, bearings and drive components should be checked to guarantee their ability to sustain the higher mechanical loads imposed by the enhanced roll system.
3. Roll configuration: The number, size and arrangement of Backup Rolls should be chosen based on the desired flatness improvement, material properties and manufacturing circumstances.
4. material compatibility. The material of the roll and its surface treatment should be compatible with the material of the strip being processed and the operating environment to ensure its dependable performance.
5. Control system integration: The monitoring and adjustment functions should be well integrated so that operators can control the roll condition and keep the operation steady.
To work on these design issues, equipment engineers, roll makers and maintenance teams need to collaborate. A methodical engineering strategy will guarantee that the Backup Roll enhancements provide long-term operating advantages.
Performance optimization and maintenance
Proper operation and maintenance are needed to ensure constant functioning of Backup Rolls after they are installed in the tension levellers.
Major maintenance techniques are:
A1. ignment and setup: The Backup Rolls must be correctly aligned with work rolls to provide even pressure distribution and effective flatness control. Regular examination keeps them in their places.
2. Mnitoring and feedback : Sophisticated monitoring systems can measure Backup Roll working characteristics, such as load distribution, temperature variations, and wear trends. This information may be used to assist process improvement and maintenance planning.
3. Lubrication systems: Adequate lubrication of bearings and contact surfaces helps to decrease friction and wear and extends the useful life of components.
4. Preventive maintenance: Routine inspections, surface condition checks and required reconditioning assist preserve Backup Roll performance and minimise unexpected downtime.
5. Operator training: Operators need to comprehend the operating concept of Backup Roll assisted levellers to operate and troubleshoot correctly.
Manufacturers may maximise the benefits of the Backup Roll technology and enjoy more stable cold rolling performance by emphasising these areas.
Conclusion
The use of Backup Roll technology in tension levellers is a significant enhancement in current cold rolling processes. Backup Rolls provide producers with an opportunity to improve sheet flatness, thickness uniformity and process stability by providing a stronger support for work rolls, thereby helping to improve force distribution and reduce deformation under load.
The performance of a tension levelling process relies on the interaction between equipment design, material properties and process parameters. Properly designed and maintained Backup Roll system may assist to decrease form errors, increase production dependability and fulfil the high quality standards of companies employing precision cold rolled materials.
With the development of metal processing technology, the performance of cold rolling equipment will be further improved with the development of roll design, monitoring systems and maintenance plans. For businesses looking for enhanced levelling performance, the right selection of Backup Roll solutions and the use of sound engineering techniques are still critical measures to attain steady and efficient production.
