Open-die vs. closed-die forging: Which is better for shaft production?
Selecting the appropriate forging technique is contingent upon the particular demands of the shaft application. Open-die forging and closed-die forging possess distinct benefits regarding size capacity, production efficiency, dimensional precision, and manufacturing adaptability.
Comprehending the distinctions between these two techniques aids engineers in choosing the most appropriate method for their manufacturing requirements.
Characteristics of Open-Die Forging
Open-die forging, referred to as free forging, moulds metal using flat or basic-shaped dies without fully encasing the product. This technique facilitates a more unrestricted flow of the material during deformation, rendering it appropriate for the fabrication of oversized shafts and bespoke components.
A primary benefit of open-die forging is its adaptability. Producers can fabricate shafts in various sizes and configurations without necessitating intricate tooling. This renders the procedure appropriate for substantial industrial elements and reduced production demands.
Nevertheless, as the workpiece is not entirely enclosed by the dies, attaining very precise dimensional control may necessitate supplementary machining or finishing operations. Consequently, open-die forging is frequently chosen when adaptability in size and structural integrity take precedence over high-volume consistency.
Advantages of Closed-Die Forging
Closed-die forging employs contoured dies that encase the workpiece during the shaping procedure. The regulated die cavity enables producers to fabricate shafts with intricate shapes and uniform measurements.
This technique is especially appropriate for applications that necessitate consistent manufacturing and accurate component geometries. The regulated material movement in closed-die forging can enhance structural uniformity and mechanical characteristics.
For small to medium shafts manufactured in bulk, closed-die forging offers effective production and dependable dimensional precision. Nonetheless, the tooling prerequisites are typically more intricate in comparison to open-die forging.
Choosing the Right Method
Choosing between open-die and closed-die forging necessitates the evaluation of various elements, such as shaft measurements, manufacturing quantity, part configuration, and desired performance attributes.
Open-die forging is typically regarded while manufacturing:
- Extensive-diameter shafts
- Bespoke components
- Reduced-quantity industrial components
Closed-die forging might be more appropriate for:
- Uniform shaft configurations
- Increased production capacity
- Elements necessitating uniform measurements
In certain production contexts, firms could integrate various forging techniques and finishing methods to attain the desired equilibrium of performance, efficiency, and cost management.
Key industries using forged shafts: Automotive, aerospace, and heavy machinery
Forged shafts are extensively utilised in sectors where parts need to endure mechanical strain, cyclical loading, and challenging operational conditions. The robustness and resilience attained via forging render these components appropriate for essential applications.
Automotive Applications
In the automobile sector, forged shafts are frequently utilised in power transmission and engine systems. Elements including crankshafts, camshafts, and driveshafts necessitate robust mechanical capabilities due to their exposure to incessant rotation, torque stresses, and recurrent operational cycles.
The regulated deformation technique employed in shaft forging enhances material composition and fatigue resistance. These attributes enable automotive parts to sustain dependable functionality over extended periods of use.
As automotive designs increasingly prioritise efficiency and resilience, producers necessitate shaft components that deliver reliable performance while adhering to contemporary technical standards.
Aerospace Demands
The aircraft sector imposes rigorous standards for the durability, dependability, and weight optimisation of components. Forged shafts are utilised in essential aviation systems due to their necessity to function dependably under rigorous settings, such as elevated mechanical stresses, temperature fluctuations, and extended operational durations.
Materials chosen for aerospace shaft applications often necessitate superior strength-to-weight ratios and resilience to environmental stressors. The shaft forging technique enhances material uniformity and structural robustness, which are critical elements for aircraft components where dependability is paramount.
Given the safety mandates of aerospace applications, producers must meticulously regulate forging techniques, material choices, and evaluation protocols to guarantee that forged shafts fulfil the anticipated performance criteria.
Heavy Machinery Requirements
Heavy equipment functions under some of the most demanding operational circumstances, encompassing substantial loads, incessant use, and severe surroundings. In sectors like construction machinery, mining equipment, and industrial systems, forged shafts must exhibit robust resistance to mechanical stress and abrasion.
The shaft forging technique enhances the internal composition of the material, assisting components in sustaining performance throughout cyclic loading scenarios. Extensive shafts created via forging are particularly advantageous in robust applications where durability and dependability are paramount.
For these sectors, choosing appropriate forging techniques and ensuring rigorous quality control are crucial measures for attaining durable component functionality.
Step-by-step breakdown of the shaft forging workflow
The procedure for shaft forging encompasses multiple meticulously regulated phases, ranging from material preparation to the ultimate examination. Every phase affects the ultimate mechanical characteristics, dimensional precision, and dependability of the forged part.
Comprehending the entire workflow enables engineers and manufacturers to assess production needs and enhance component efficacy.
Material Selection and Preparation
The initial phase of shaft forging involves choosing the suitable material according to the application specifications. Engineers generally take into account elements including mechanical integrity, durability, environmental conditions, and susceptibility to corrosion or abrasion.
Typical material selections for forged shafts encompass various steel grades, titanium alloys, and nickel-based alloys, contingent upon the specific use.
Subsequent to the selection of materials, the raw substance is processed to meet specified dimensions and subjected to heating at an appropriate forging temperature. Adequate heating guarantees that the material attains the requisite plasticity for regulated deformation while preserving its intended metallurgical properties.
Forging and Shaping
Upon attaining the necessary state, the forging process commences. The hot billet is formed by means of regulated mechanical pressure utilising appropriate forging apparatus.
In open-die forging, the substance is squeezed and moulded between basic dies. The workpiece can be turned and adjusted throughout the procedure to attain the desired dimensions and form.
In closed-die forging, the heated substance is shaped within a die cavity that dictates the ultimate configuration. This technique enables producers to attain more uniform forms and reliable manufacturing outcomes.
At this phase, regulating the forging parameters is crucial. Elements including deformation sequence, thermal regulation, and material movement affect the ultimate configuration and efficacy of the forged shaft.
Post-Forging Treatment
Upon the conclusion of the forging procedure, the shaft generally undergoes supplementary processing stages to get the desired performance attributes and final requirements.
Post-forging procedures may encompass:
- Controlled cooling
- Heat treatment
- Machining
- Surface finishing
- Quality inspection
Heat treatment methods like normalising, annealing, or tempering can be employed based on the desired mechanical characteristics.

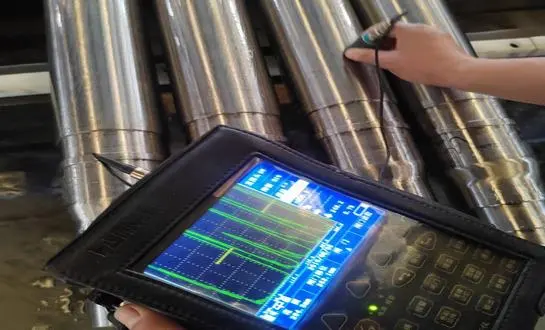

Machining techniques facilitate the attainment of final dimensions and surface specifications, whilst inspection procedures assist in confirming product quality and detecting possible internal or surface defects.
Meticulous post-forging processing guarantees that the finished shaft fulfils the performance criteria of its designated use.
Conclusion
Shaft forging continues to be a crucial production technique for creating robust and dependable shaft components utilised in automotive, aerospace, heavy machinery, and various industrial fields.
By choosing appropriate forging techniques, regulating production processes, and implementing effective post-forging treatments, producers can create shafts with enhanced mechanical properties and enduring dependability.
For enterprises assessing forged shaft alternatives, comprehending elements like material choice, forging techniques, application specifications, and quality aspects is crucial for manufacturing determinations.
