Evolution of Stabilizer Technology in Drilling
As the needs of drilling have evolved, so has the technology of stabilizers. The essential objective remains to assist in controlling the location and movement of the BHA in the borehole. However, manufacturers have improved stabilizer geometry, materials, blade combinations and wear protection to accommodate a variety of drilling circumstances.

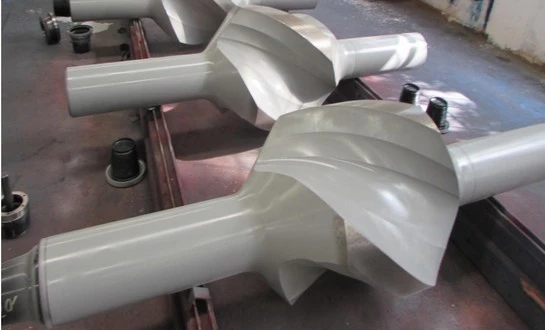

One traditional method is the Integral Blade Stabilizer, where the stabilizer body and blades are molded as one piece. Integral blade stabilizers are described by the leading drilling-tool producers as high-strength, one-piece instruments utilized in directional and straight-hole drilling operations.
From Conventional to Cutting-Edge
The first designs for stabilizers were predominantly mechanical. By managing the lateral movement of the drill collars and other BHA components, stabilizers may impact bit behavior, vibration, wellbore contact, and directional response.
The Integral Blade Stabilizer made this notion a reality in one-piece fabrication. Instead of connecting separate blades to the body, the blades are produced as part of the primary tool. SLB refers to their integrated blade stabilizer as a single-piece, high-strength alloy-steel tool. Other vendors in the industry also refer to integral blade designs as single-piece rotating stabilizers.
This architecture may offer a continuous load bearing structure and eliminates blade-to-body connections in the main structure. The actual performance of the stabilizer, however, still relies on aspects like as blade geometry, gauge, hardfacing, BHA location, formation, and drilling parameters.
Technological Advancements in Stabilizer Design
Recent improvements in stabilizer technology are not limited to electronics or artificial intelligence. Much of the development remains focused on mechanical design and manufacturing.
Key developments include:
- Material and wear protection: High-strength alloy steels and different hardfacing approaches can be selected according to the drilling environment and expected wear.
- Precision manufacturing: Modern manufacturing methods allow manufacturers to control blade geometry, dimensions, and connections more precisely.
- Blade configuration: Straight and spiral blade designs are available for different BHA and drilling requirements.
- Application flexibility: Integral blade stabilizers can be positioned near the bit or farther up the drillstring, depending on the BHA design.
- Hydraulic considerations: Blade geometry and flow area can be designed to support drilling-fluid circulation around the BHA.
These improvements make stabilizers more precisely engineered, but they should not automatically be described as AI-enabled. The "smart" aspect increasingly comes from how BHA tools are integrated with measurement, monitoring, and drilling-control systems.
How AI Enhances Integrated Stabilizer Performance?
Artificial intelligence may affect the way drilling teams assess behavior of BHA and improve drilling operation but the boundary between stabilizer and digital drilling system should be well defined.
A traditional Integral Blade Stabilizer may be valuable in a data-driven drilling operation without the inclusion of an AI system. Instead readings from systems like MWD/LWD and other drilling sensors may be examined together with surface drilling parameters. These data may aid in decision-making about BHA setup, drilling parameters, vibration mitigation, and future well planning.
Modern drilling automation systems already integrate real-time drilling data and machine-learning algorithms to assist operational choices. For example, Halliburton discusses automation solutions that combine real-time drilling parameters with machine learning and dynamic drilling parameter modifications.
Real-Time Data Analysis and Decision Making
A smarter drilling workflow can combine information from several sources, such as:
- Wellbore trajectory measurements
- Downhole pressure and temperature measurements
- Vibration and drilling-dynamics data
- Torque and drag information
- Weight on bit and rotary speed
- Formation and drilling-fluid information
These data may be used by engineers to analyze BHA performance and to decide whether a modification in drilling parameters or BHA design is necessary.
The crucial issue is that this analysis does not imply that a traditional Integral Blade Stabilizer is making choices by itself. The stabilizer is still a mechanical device, and the measurement and control system around it provide the data and decision support functions.
Predictive Maintenance and Failure Prevention
Also, data-driven drilling systems may enable condition monitoring and maintenance planning.
Trends in vibration, torque, temperature, or drilling performance, for example, offer engineers with information to detect aberrant operating situations. This might help in decision making about inspection, maintenance or modifications in BHA.
Nevertheless, predictive maintenance should not be seen as an intrinsic feature of all Integral Blade Stabilizers. Predictive analysis relies on the sensors, the data-acquisition system, the software, and the monitoring method utilized in the drilling operation.
For the stabilizer itself, mechanical examination is still necessary. The blade wear, hardfacing condition, dimensions, connectors and the overall tool condition must be assessed using inspection and maintenance techniques relevant.
Learning and Adaptation
The learning component of intelligent drilling belongs primarily to the digital system rather than to the mechanical stabilizer.
When drilling teams collect data from multiple wells, they can use historical information to refine:
- BHA configurations
- Stabilizer placement
- Drilling parameters
- Vibration-management strategies
- Directional drilling practices
- Maintenance and inspection planning
This creates a feedback loop in which lessons from previous drilling operations can influence future engineering decisions.
In this sense, the drilling system can become smarter over time while the Integral Blade Stabilizer continues to perform its fundamental mechanical role.
Cost-Efficiency: Smart Stabilizers vs. Traditional Tools
Economic comparisons between smart drilling processes and traditional operations must be done cautiously. It is impossible to say that a ‘smart stabilizer’ is inherently cheaper since the cost of drilling relies on the whole BHA, rig time, formation, tool life, maintenance needs and well goals.
A better strategy is to consider how to optimize the combination of digital drilling technology and stabilizer design to decrease operational difficulties.
Reduced Non-Productive Time (NPT)
An Integral Blade Stabilizer can contribute to BHA stability and wellbore control, while data-driven drilling systems can help engineers identify unfavorable operating conditions.
Potential contributors to lower NPT include:
- Better BHA planning before the run
- Earlier identification of abnormal drilling behavior
- More informed drilling-parameter adjustments
- Better monitoring of vibration and torque
- Improved planning of inspection and maintenance activities
These benefits should be treated as application-dependent rather than guaranteed results. The actual effect on NPT needs to be evaluated against the drilling program and operating data.
Improved Well Quality and Production
A well chosen stabilizer may help with BHA stability and with directional control, but should not get all the credit for improved productivity.
The performance of a stabilizer is affected by its location in the BHA, blade shape, gage, formation, bit type, drilling parameters and the rest of BHA design. According to public industry information, integrated blade stabilizers are designed to decrease torque, limit hole-wall damage and provide support for fluid circulation. Other stabilizer types are chosen based on the drilling application.
A more accurate chain of reasoning is therefore:
appropriate stabilizer design → improved BHA behavior → better control of drilling conditions → potential improvement in wellbore quality
Any effect on production requires additional well and reservoir factors and should not be attributed to the stabilizer alone.
Lifecycle Cost Analysis
When evaluating an Integral Blade Stabilizer, buyers should consider the complete lifecycle rather than focusing only on the purchase price.
Important factors include:
- Initial tool selection: The stabilizer should match the hole size, BHA position, blade configuration, connections, and drilling environment.
- Wear performance: Formation abrasiveness and drilling conditions affect the expected wear of the stabilizer and its hardfacing.
- Inspection and redressing: The condition of the blades, gauge, connections, and wear surfaces should be evaluated after use according to the applicable maintenance requirements.
- Operational performance: The effect of stabilizer configuration on BHA behavior should be evaluated using actual drilling data where available.
- BHA optimization: Historical drilling data can help engineers improve future stabilizer placement and BHA design.
For this reason, the economic value of an Integral Blade Stabilizer should be assessed together with the drilling system rather than by assuming that an electronically enhanced or AI-enabled version will automatically produce lower costs.
Conclusion
The fact that drilling technology has evolved doesn’t always imply every Integral Blade Stabilizer is an AI-enabled equipment. A more accurate development is the merging of established mechanical BHA components with ever more complex measurement, automation and data processing technologies.
Fundamentally, an Integral Blade Stabilizer is still a mechanical instrument. Its fundamental mechanical performance is determined by its one-piece construction, blade shape, material, hardfacing, gage and location in the BHA. These stabilizers are described in public industry standards as one-piece, high-strength instruments that may be employed in multiple BHA locations and drilling situations.
At the same time, contemporary drilling systems have the capacity to use real-time measurements, automation, and machine-learning technologies to evaluate drilling activity and help with choices about drilling parameters and BHA design.
So the answer to whether integrated stabilizers are becoming smarter is more nuanced: the stabilizer itself may remain a mechanical component, but the drilling system around it is becoming more data-driven and automated.
The practical takeaway for purchasers and drilling engineers should stay on choosing the appropriate stabilizer configuration for the application. Integral Blade Stabilizer should be specified with due consideration to hole size, BHA location, blade design, formation, drilling environment, connections and wear requirements.
If you are evaluating an Integral Blade Stabilizer for a specific BHA or drilling application, Welong can discuss the relevant requirements with you. You can contact oiltools15@welongpost.com with your hole size, stabilizer position, connection requirements, and application details.
FAQ
1. What are the main advantages of using an Integral Blade Stabilizer in drilling operations?
The main advantages of using an Integral Blade Stabilizer include enhanced durability due to its one-piece construction, improved load distribution, better resistance to wear and tear, and increased reliability in harsh drilling conditions. These stabilizers also offer better performance in maintaining wellbore stability and reducing vibration, which can lead to more efficient drilling operations and improved well quality.
2. How does AI contribute to the performance of smart integrated stabilizers?
AI contributes to smart integrated stabilizer performance by enabling real-time data analysis and decision-making. It processes information from downhole sensors to adjust stabilizer settings on-the-fly, predicts and prevents potential failures, and continuously learns from accumulated data to improve overall drilling efficiency. This results in optimized drilling parameters, reduced non-productive time, and enhanced well placement accuracy.
3. Are smart stabilizers cost-effective compared to traditional drilling tools?
While smart stabilizers may have a higher initial cost, they often prove more cost-effective in the long run. They reduce non-productive time, improve well quality, and extend well life, which can lead to significant cost savings over the entire drilling operation. Additionally, their predictive maintenance capabilities and longer service life can further reduce overall operational costs, making them a valuable investment, especially for complex drilling projects.
