How Tricone Bits Revolutionize Drilling Efficiency?
Tricone bits remain a significant roller-cone drilling technique because the three-cone design offers a practical means of spreading the rock-breaking action throughout the bottom of the hole. Modern designs have improved the cutting structure, bearing and seal systems and hydraulic arrangement to suit a range of drilling situations.
Innovative Design and Mechanics

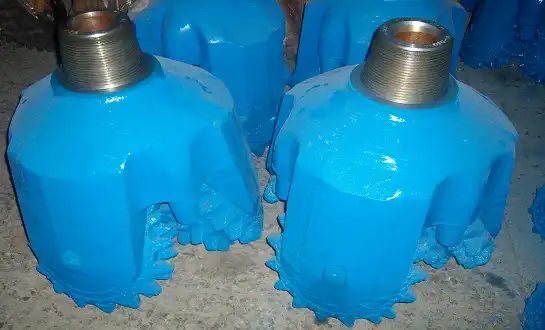

The distinctive characteristic of a tricone bit is its three-cone layout. As the bit spins , each cone rotates around its journal such that the teeth or inserts repeatedly engage the formation .
The cones' contact with the rock results in a mixture of crushing, chipping and scraping. The precise cutting action is a function of a number of characteristics such as cone geometry, cone offset, journal angle, cutting structure, formation properties, and drilling parameters.
This design may provide various practical advantages:
- Effective rock breaking under diverse formation circumstances
- A cutting structure spread at the bottom of the hole
- Adaptability of tooth or implant design to formation characteristics
- Mechanical design suitable for a wide range of drilling applications
Hydraulics are too critical. The bit nozzles also provide fluid to assist clean the cutting structure and to carry the rock cuttings away from the bottom of the hole. Good hole cleaning will limit the amount of cuttings built-up around the bit and will ensure contact between the cutting structure and formation.
Advanced Materials and Manufacturing
In the development of the Tricone Drill Bit developments have also been made in cutting structures, bearing systems, seals and production methods.
Two typical forms of cutting structure are milled tooth and tungsten carbide insert (TCI) designs. The right choice relies on the formation and the planned drilling operation. For example, SLB offers roller-cone products in both TCI and milled-tooth designs for applications ranging from soft to ultrahard formations.
Other essential elements include:
- loaded steel bit bodies and cone structures
- Milled teeth or tungsten carbide inserts chosen as per formation needs.
- Bearings for supporting rotation of cone under downhole stresses
- Sealing systems for protection of internal bearing elements
- nozzles and flow channels to facilitate bit cleaning and cuttings removal
These components have to function in concert. Even a long lasting cutting structure can not guarantee a satisfactory bit performance if bearing, seal, hydraulic or operational circumstances are not appropriate.
Adaptability to Drilling Conditions
One of the key advantages of tricone technology is the ability to configure the bit for different drilling environments.
Important design and selection factors include:
- Cone offset and geometry
- Tooth or insert configuration
- Bearing and seal arrangement
- Nozzle configuration
- Formation hardness and abrasiveness
- Expected WOB and rotary speed
For example, gentler forms may demand a cutting structure that permits good penetration, while harder or more abrasive formations may require a more strong insert or teeth arrangement. The choice should not depend on one general rule but on the particular formation.
This application-specific approach is consistent with the way the main drilling-bit manufacturers define roller-cone selection. Halliburton, for instance, prioritizes designing bits for the application in question, whether the issue is severe abrasion, hard rock or densely interbedded formations.
Comparing Tricone vs. Other Drill Bit Types
Tricone Drill Bits still work well for many drilling tasks, although they are not always the ideal option for every formation. A comparison of the rock breaking mechanisms and operational requirements of the various bit types might assist the drilling crews to make a better educated choice.
Tricone vs. PDC Bits
Polycrystalline diamond compact (PDC) bits and tricone bits use different rock-breaking mechanisms.
Tricone Bits:
- Use rotating cones with teeth or inserts to apply repeated mechanical loading to the formation
- Can be configured with milled teeth or TCI cutting structures
- Offer a rolling-cone design that can be adapted to different formation characteristics
- Include bearings, seals, and other moving components that require consideration during bit selection and operation
PDC Bits:
- Use fixed diamond cutters to shear the formation
- Have no rotating cones or internal cone bearings
- Can provide high penetration rates in suitable formations and operating conditions
- Are sensitive to formation changes, impact loading, vibration, and cutter wear depending on the application
The choice should therefore be based on formation characteristics, drilling objectives, BHA configuration, and operating parameters rather than assuming that one bit type is always superior. Modern drilling programs may also use hybrid technologies that combine roller-cone and fixed-cutter concepts for specific applications.
Tricone vs. Drag Bits
Drag bits use fixed cutting elements rather than rotating cones. Their relatively simple construction can make them suitable for particular soft-formation drilling applications.
Tricone Bits:
- Use rolling cones to break the formation
- Can be configured for a broader range of formation conditions
- Include mechanical components such as bearings and seals
- Require appropriate selection of cutting structure and operating parameters
Drag Bits:
- Use fixed blades or cutters
- Have no rotating cone assembly
- Can be effective in suitable soft or unconsolidated formations
- Are generally selected according to the specific drilling environment and cutting mechanism required
The appropriate choice depends on the formation, hole size, drilling method, and expected operating conditions.
Tricone vs. Diamond Impregnated Bits
Diamond impregnated bits are designed for applications where sustained diamond cutting action is advantageous, particularly in hard and abrasive formations.
Tricone Bits:
- Use mechanical crushing and cutting action from rotating cones
- Are available with different tooth and insert configurations
- Can be selected for a wide range of formation conditions
Diamond Impregnated Bits:
- Use diamond particles embedded within the cutting structure
- Are commonly associated with hard and abrasive drilling applications
- Develop their cutting surface progressively as the matrix wears
- Are selected according to formation characteristics and the requirements of the drilling operation
This comparison indicates that the selection of the bit should be based on the actual drilling environment rather than on the bit with the best theoretical performance. The formation qualities, drilling parameters, BHA design, hydraulics and predicted bit wear must all be considered.
Optimizing Tricone Bit Selection for Your Project
Choosing the proper Tricone Drill Bit is more than just picking a bit based on hole size. Bit performance is influenced by formation, cutting structure, drilling parameters, hydraulics and predicted operating circumstances.
Understanding Formation Characteristics
The first step is to understand the formation that the bit will drill.
Key factors include:
- Rock hardness and compressive strength
- Abrasiveness
- Interbedded or changing formations
- Fractured or unstable intervals
- Expected drilling depth and hole conditions
Offset-well data, geological information, and previous bit performance can provide useful input for this evaluation.
Checking the condition of the pieces after they have been removed out of the hole also helps in selecting the bits. A somewhat dull state may give information concerning formation contact, drilling dynamics, and associated operational problems. IADC dull grading is used in the drilling industry to characterize bit condition and to aid in bit design and drilling practice choices.
Matching Bit Features to Formation
Once the formation is understood, the next step is to select a suitable bit configuration.
Important factors include:
- Tooth or insert type and size
- Cutting-structure arrangement
- Cone offset
- Journal angle
- Cone profile
- Bearing and seal configuration
- Nozzle and hydraulic requirements
Milled-tooth and TCI bits should not be treated as interchangeable options. Their cutting structures behave differently and should be selected according to the formation and drilling objectives.
A suitable design should provide a practical balance between penetration, wear resistance, stability, and expected bit life.
Considering Operational Parameters
Bit selection must also match the drilling system.
Important operating parameters include:
- Weight on bit (WOB)
- Rotary speed (RPM)
- Hydraulic flow and pressure
- BHA configuration
- Directional drilling requirements
The chosen bit must function within a range suitable with the rig, BHA, drilling fluid system and geology.
Changing the WOB or the rotary speed may affect the mechanical stress on the cutting structure and cones. Thus, the bit performance should be considered in conjunction with the anticipated drilling parameters and not in isolation.
Evaluating Economic Factors
The economic evaluation of a tricone bit should consider more than the purchase price.
Relevant factors include:
- Expected footage per bit
- Rate of penetration
- Number of trips required
- Bit inspection and replacement requirements
- Effect on overall drilling time
Designs that better match the formation and operating circumstances may justify a higher initial purchase price for the bit. But this has to be viewed in the light of real application facts and not just a generic assumption.
Utilizing Manufacturer Expertise
Experienced Tricone Drill Bit manufacturers can provide useful technical input during bit selection. The most useful discussion usually starts with application information rather than a request for a generic bit.
When contacting a manufacturer, drilling teams can provide information such as:
- Hole diameter
- Formation type
- Expected hardness and abrasiveness
- Drilling depth or interval
- Available WOB and RPM
- Hydraulic conditions
- Previous bit performance, if available
This information helps the manufacturer to better analyze the application and to suggest a suitable bit design that better represents the real drilling circumstances.
For example, prominent roller-cone producers focus on the application-specific design and manufacturing of their products, rather than just providing one standard bit configuration for every well.
"Drilling teams can make better choices regarding cutting structure, hydraulics and projected bit performance by linking formation data to bit design and operating parameters."
Conclusion
The performance of a Tricone Drill Bit is not due to the three-cone structure alone, but to the interplay of multiple components. The downhole performance of bit is influenced by cone geometry, cutting structure, bearings, seals, hydraulics, formation qualities and drilling parameters.
Tricone bits are designed for various formation circumstances and have a unique rolling-cone rock-breaking process compared with fixed-cutter and other drilling methods. But no one kind of bit is right for every drilling job. The proper choice relies on formation, drilling target, BHA and operating window.
So, the selection of the Tricone Drill Bit should be based on the drilling circumstances, and then work backward to the bit design. Offset data, formation features, operational settings and past bit performance may be reviewed to allow drilling teams to make a more educated choice.
