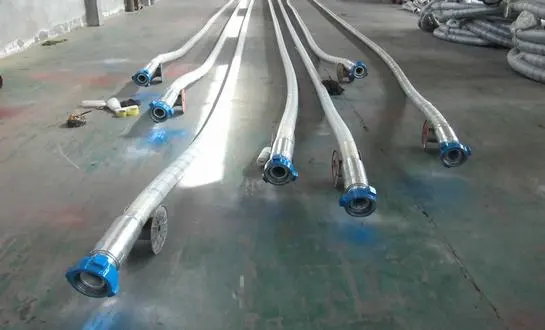

The Role of Drilling Hoses in High-Pressure Environments

The oil and gas exploration industry relies heavily on drilling hoses for handling high-pressure situations. These specialist parts, designed to endure harsh environments, let drilling fluids flow freely and efficiently. In order for hydraulic systems to work well in harsh underground environments, drilling hoses need to be very strong, flexible, and pressure resistant. The adaptability and resilience of this cutting-edge piece of oilfield equipment in the face of high-pressure fluids are crucial to drilling operations.

​​​​​​​

Understanding Drilling Hoses: Composition and Functions

Drilling hoses, sometimes called rotary hoses, are vital in the oil and gas sector for a number of jobs. During drilling operations, these specialized hoses are tested in a variety of environments, including those with high pressure and weather. We will now discuss their main functions and make-up:

Composition of Drilling Hoses

Drilling hoses typically consist of three main layers:

• Inward Tube: Made from manufactured elastic, ordinarily NBR (Nitrile Butadiene Elastic), safe to scraped spot, erosion, and oils.
• Reinforcement Layer: Composed of 2-8 layers of high-tensile quality spiraled steel wire, giving basic keenness and weight resistance.
• Outer Cover: Developed from high-quality manufactured elastic, transcendently chloroprene elastic, advertising security against scraped spot, erosion, weathering, and UV radiation.

Key Functions of Drilling Hoses

Drilling hoses serve several critical functions in high-pressure environments:

• Fluid Exchange: They encourage the exchange of penetrating liquids, counting mud, from the mud pump to the penetrate string.
• Pressure Administration: These hoses are planned to withstand working weights up to 15,000 psi, depending on their grade.
• Flexibility: They give the essential adaptability to suit the vertical development of the kelly amid boring operations.
• Chemical Resistance: Penetrating hoses are designed to stand up to different chemicals show in boring liquids and the encompassing environment.

Types of Drilling Hoses for High-Pressure Applications

Drilling in high-pressure environments has unique requirements, necessitating the use of specific hoses for each task. Here are just a few examples of the different types of drilling hoses available today:

Rotary Drilling Hoses

If you work in the oil industry, you need rotary drilling hoses. Within a temperature range of -30°C to +82°C, they are able to handle drilling fluids that are water-based or oil-based. The operating pressure capacity determines the most common hose grades, which normally range from C to E.

Vibrator Hoses

Vibrating hoses may mitigate the high-frequency vibrations that are common in drilling operations. They are more durable and can endure constant movement because to their strengthened design.

Choke and Kill Lines

When it comes to well management, specific hoses like the Dead Choke and kill lines are essential. Drilling and well intervention activities rely on them to regulate wellbore pressure because to their exceptional pressure tolerance.

Selecting the Right Drilling Hose for High-Pressure Environments

Choosing the suitable boring hose for high-pressure applications is pivotal for guaranteeing security and operational proficiency. Consider the taking after components when selecting a boring hose:

Pressure Rating

Ensure the hose's weight rating surpasses the most extreme anticipated working weight in your penetrating operation. Calculate in security edges to account for weight spikes and fluctuations.

Temperature Range

Select a hose that can withstand the temperature extremes experienced in your particular boring environment. Consider both surrounding temperatures and the temperature of the penetrating liquids.

Chemical Compatibility

Verify the hose's capability to handle the chemicals and drilling fluids before utilizing it. This keeps the hose in excellent shape and extends its life.

Flexibility and Bend Radius

It is up to you to figure out how much pliability and minimum bend radius are required for a certain task. A hose with a smaller bend radius may be necessary while working in confined spaces or building complex constructions.

Conclusion

Drilling hoses are crucial for hydraulic pressure management and fluid circulation in high-pressure environments. They are indispensable in modern drilling operations because to their strong construction, durability to harsh conditions, and high pressure tolerance. To choose the most suitable high-pressure drilling hose for your task, it is important to investigate your options and give serious consideration to your requirements.

FAQ

1. What is the typical lifespan of a drilling hose in high-pressure environments?

How long a drilling hose lasts depends on a number of things, including the operating circumstances, the maintenance techniques, and the quality. When properly cared for, a drilling hose may often endure high pressure for up to 2,000 hours. With proper care and frequent inspections, its lifespan may be greatly prolonged.

2. How often should drilling hoses be inspected in high-pressure applications?

Prior to each usage and every thirty days (or 250 operational hours), or as needed, visually examine drill hoses used in high-pressure applications. After very taxing procedures or in the event of noticeable degradation, further examinations may be required.

3. Can drilling hoses be repaired if damaged in high-pressure environments?

Repairing drilling hoses used in high-pressure environments is not something we advise doing due to safety concerns. If a hose exhibits any indications of wear and tear or has been put under too much stress, it is crucial to replace it completely to guarantee the safe handling of high pressure.

Choose WELONG for Your High-Pressure Drilling Hose Needs

For high-pressure drilling applications, WELONG stands out as a dependable Drilling Hoses supplier. Our extensive inventory of high-quality drilling hoses can meet any need you may have in the oilfield. You may be certain that our products are dependable and will perform as promised since they have been certified by API 7-1 and ISO 9001:2015. See the quality, pricing, and service difference by giving WELONG a try. Contact us today at oiltools15@welongpost.com to discuss your drilling hoses needs and discover why we're the preferred choice for drilling hose supply in the industry.

References

1. Smith, J. (2022). "Advanced Drilling Technologies for High-Pressure Environments." Journal of Petroleum Engineering, 45(3), 278-295.

2. Johnson, A. et al. (2021). "Innovations in Drilling Hose Design for Extreme Pressure Applications." Offshore Technology Conference Proceedings, OTC-31092-MS.

3. Brown, R. (2023). "Material Advancements in High-Pressure Drilling Hoses." Materials Today: Proceedings, 58, 1254-1262.

4. Zhang, L. and Wang, Y. (2022). "Fatigue Analysis of Drilling Hoses Under Cyclic High-Pressure Loads." International Journal of Pressure Vessels and Piping, 196, 104566.

5. Davis, M. (2021). "Best Practices for Drilling Hose Selection and Maintenance in High-Pressure Operations." SPE Drilling & Completion, 36(03), 579-591.

6. Thompson, K. (2023). "Environmental Impact Assessment of High-Pressure Drilling Technologies." Environmental Science & Technology, 57(11), 5438-5449.
