Maintaining a predictable borehole geometry is critical in directional drilling for the movement of the BHA, drillstring, casing and other downhole equipment throughout the intended well route. Roller reamers are used in certain drilling assemblies to widen, condition or maintain the borehole and to control the contact between the spinning drillstring and the wellbore wall.

A roller reamer is not a substitute for good BHA design, drilling fluid management or directional control. Instead it might be one component of a larger drilling plan. Properly matched to formation, hole size, drilling parameters and BHA configuration, the tool may aid to eliminate undesired contact and enhance drilled hole uniformity.

Here we discuss the contribution of roller reamers to borehole quality, their location in the drill string influence on their application and the formation, operational and material aspects to be examined prior to selection.

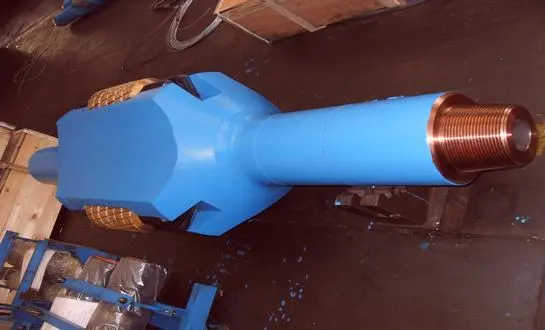

roller reamers

How Roller Reamers Enhance Borehole Quality

The main job of roller reamers is to assist keep the borehole diameter and geometry as they should be. During drilling, the hole may have had ledges, local undergauge portions or other abnormalities induced by variations in rock, bit wear or the drilling process. Roller reamers, when appropriately chosen, are the solution to various scenarios when hole conditioning or reaming is required.

As the rollers revolve against the formation or wellbore surface, the tool may execute its job with less sliding contact than fixed-blade versions. The real influence on torque, drag and drilling performance relies on the tool design and operating circumstances. For example, SLB provides a design of a torque-reduction roller reamer where revolving cutter assemblies minimize contact area and friction, which may aid enhance weight transfer to the bit in applicable situations.

Borehole Enlargement and Stabilization

One of the main applications of roller reamers is enlarging or conditioning a borehole to the required diameter.

This can be useful when the drilling team needs to:

Improve passage for the planned BHA or casing string
Address localized undergauge or irregular hole sections
Maintain a more consistent borehole diameter
Reduce mechanical restrictions caused by ledges or rough hole sections

A more uniform borehole may make following procedures simpler, but the equipment should not be considered a replacement for adequate hole-cleaning or wellbore-stability measures. Formation behavior, mud characteristics, pressure conditions and the well trajectory are still critical elements in borehole condition. According to well engineering literature, wellbore stability is a more general geomechanical issue including the interaction of rock strength, in-situ stress, pressure and drilling-fluid design.

Reduction of Torque and Drag

The contact between the drillstring and the wellbore may be substantial for directional wells, especially with increasing measured depth and well inclination. This contact may be reduced by use of a roller reamer, which causes the cutting parts of the tool to roll, rather than slide.

Depending on the tool design and placement, this can contribute to:

Lower friction at selected contact points
More effective weight transfer toward the bit
More stable drilling conditions
Better management of drillstring torque

However, the level of torque or drag reduction is a function of the whole BHA, the well path, the formation, the hole state, and operational settings. Thus, it should be treated as a component of the drilling system and not taken as a general consequence.

Optimizing Drill String Performance with Roller Reamers

"When picking roller reamers for the drill string, it’s not only a matter of nominal diameter. The tool's performance is a function of its location and gage and their cutter configuration and connection to other BHA components.

The intent is typically not to add another component to the assembly but to address a particular borehole or drillstring-contact issue.

Strategic Placement in the Drill String

Roller reamers may be placed at various positions in a BHA depending on the drilling target.

Potential uses include:

Near-Bit: When design requires hole expansion or conditioning near the bit
In a directed BHA: Where the instrument is meant to control borehole contact throughout drilling planned trajectory
At specified drillstring locations: When you need contact management or hole conditioning at particular intervals

There is no general guideline for placement. The optimal position relies on parameters including well geometry, formation characteristics, BHA design, directional goals and the projected contact pattern.

Therefore, the roller reamer should be seen in conjunction with the other stabilizing and directing elements rather than as a separate placement choice.

Impact on Drilling Parameters

The impact a correctly chosen roller reamer has on the various elements of drilling performance is application dependent.

Rate of Penetration (ROP): The tool may help transmit weight and reduce friction when used correctly for enhanced drilling efficiency. The specific performance should be checked in the tool design and operational data rather than assumed.
Wellbore Geometry: A roller reamer may be used to maintain or restore the proper hole diameter in areas where enlargement or hole conditioning is needed.
Hole Cleaning: A better borehole condition may enhance fluid circulation and minimize certain localized constraints, however hole cleaning depends on annulus velocity, cuttings, fluid properties, and well inclination.
Directional control: Although the tool may impact the behavior of the BHA and the drillstring-wall contact, trajectory control is still a function of the whole BHA, drilling parameters, formation reaction and the directional drilling system.

The objective is to evaluate these impacts within the framework of the whole drilling system.

Roller Reamer Selection: Key Factors to Consider

The first step in choosing roller reamers is to understand what the instrument is supposed to perform in the well. A hole conditioning tool may have different needs than a roller reamer used mainly for controlling drillstring contact in a directional BHA.

Formation Characteristics

Formation features are important for cutter selection and tool wear estimation.

The key factors are:

Formation hardness: Cutter design should be proportional to the projected rock strength.
Abrasiveness: Highly abrasive rock formations may increase cutter wear and may necessitate a more wear-resistant arrangement.
Formation variability A BHA drilling across a range of lithologies may need a different technique than a BHA drilling thru a reasonably homogeneous interval.
Borehole condition: Existing ledges, washouts, undergauge portions or instability might impact tool performance.

Rock attributes are site specific and formation characterisation and offset-well information available should be studied before to final tool selection.

Operational Parameters

The operational environment also has to be taken into consideration when choosing a roller reamer.

Important aspects include:

Wellbore size: The tool gage must match the projected hole size and the need for enlarging.
Drilling fluid properties: Fluid density, rheology, solids loading and hydraulics may impact the drilling behavior and tool performance.
Rotational speed: the tool should operate within the speed range indicated by the manufacturer for the chosen configuration.
Weight on bit: Expected loads should be evaluated in conjunction with cutter design, BHA and formation.
Well trajectory: Inclination, azimuth and measured depth may alter drillstring contact and torque/drag behavior.

These criteria should be considered simultaneously. Increasing any one drilling parameter does not always increase performance if this results in excessive cutter wear, vibration, torque or other adverse impacts.

Material Selection and Durability

The selection of material influences the strength, toughness, wear resistance and serviceability of the roller reamer body and associated components. The proper material is determined by the tool design and mechanical demands of the intended application.

Welong’s roller reamer product line includes materials such as AISI 4145H, AISI 4145H MOD, and AISI 4330V. The right decision should be based on the predicted circumstances of formation, loading, wear requirements and the technical standards of the manufacturer.

Selection of material does not decide the tool life. Cutter design, heat treatment, manufacture quality, formation abrasiveness, operating conditions and maintenance methods all impact service performance.

Conclusion

Roller reamers may be important components in directional drilling when the drilling program demands borehole expansion, hole conditioning or improved control of drillstring-to-wellbore contact. Their contribution is strongly related to formation, well trajectory, BHA configuration, drilling parameters, and unique design of the instrument.

Thus, the most accurate selection method starts with the actual well conditions. Before selecting a roller reamer, consider the formation characteristics, hole diameter, operating parameters, estimated loads and intended BHA.

Instead of assuming one configuration will work for all directional wells, drilling teams may compare the tool design to the unique challenge they need to tackle. This enables the balancing of borehole quality, tool life, drilling performance and overall operational cost.

Call to Action

Need to know how to pick the proper roller reamer for a directional drilling application? A reliable roller reamers supplier like Welong provides roller reamer solutions for oilfield drilling applications and asserts that its product portfolio comprises designs employing AISI 4145H, AISI 4145H MOD, and AISI 4330V materials, with choices for diverse formation conditions.

Welong says it has more than 20 years of oilfield equipment production expertise, and is certified to ISO 9001:2015 and API 7-1. When assessing a provider, these qualifications may be compared with the particular technical needs of a drilling project.

For a more helpful quote and technical discussion, the buyer should supply hole size, formation type, anticipated drilling parameters, BHA setup and roller reamer configuration.
