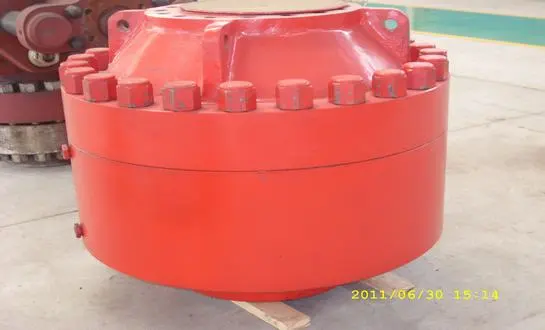

General Overview of Annular BOP Applications
Annular Blowout Preventers are crucial in contemporary drilling, especially in high-pressure situations. These adaptable seals surrounding drill string components protect against well control concerns. ABOPs hold wellbore pressures reaching 15,000 psi while enabling drill pipes, tool joints, and wireline equipment to pass.
Annular Blowout Preventers plug the drill string or open hole to isolate the wellbore from the surface. To avoid catastrophic blowouts from formation fluids, gasses, or drilling muck, this skill is essential. ABOPs' donut-shaped elastomeric sealing element fits different drill string component forms and sizes.
Key Features of High-Pressure Annular BOPs
High-pressure Annular Blowout Preventers are engineered with several distinctive features to withstand the extreme conditions encountered in deep, high-pressure wells:
- Enhanced sealing elements capable of maintaining integrity under high pressures and temperatures
- Robust hydraulic systems for rapid and reliable actuation
- Advanced metallurgy to resist corrosion and erosion in harsh downhole environments
- Sophisticated control systems for precise operation and monitoring
- Larger bore sizes to accommodate a wide range of drill string components
These features collectively contribute to the ABOPs' ability to perform effectively in the most demanding drilling operations, ensuring well control and operational safety.
Key Dimension: Pressure Containment Capabilities
The capacity of an Annular Blowout Preventer to hold back pressure is perhaps its most important feature, particularly when drilling in high-pressure areas. This dimension directly affects how effectively the ABOP can keep control of the well under difficult situations, hence it is very important to keep in mind while choosing drilling operators and engineers.
Understanding Pressure Ratings
The pressure ratings for high-pressure ABOPs are usually between 5,000 psi and 20,000 psi or greater. These ratings show the highest operating pressure that the device can safely hold while it is in use. It's important to remember that the pressure rating needed for a certain drilling job relies on a number of things, such as: the expected formation pressures, the depth and shape of the well, the qualities of the drilling fluid, the rules set by the government, and the safety margins set by the firms that run the operation.
Choosing an Annular Blowout Preventer with the right pressure rating is important for keeping the well safe and making sure that drilling activities are safe. If you don't provide the right pressure rating, things may go very wrong. If you give too much information, however, it can cost more and make things more complicated.
Factors Influencing Pressure Containment
Several factors contribute to an ABOP's pressure containment capabilities:
- Sealing Element Design: The composition and geometry of the elastomeric sealing element significantly impact its ability to maintain a pressure-tight seal under high pressures.
- Body and Piston Construction: The structural integrity of the ABOP's body and piston must withstand the immense forces generated during high-pressure containment.
- Hydraulic System Capacity: The hydraulic system must generate sufficient force to maintain the seal against wellbore pressures.
- Material Selection: Advanced materials, such as high-strength steels and specialized elastomers, enhance the ABOP's pressure containment capabilities.
- Temperature Resistance: High-pressure environments often correlate with elevated temperatures, necessitating sealing elements and components that maintain performance under these conditions.
Understanding these factors is crucial for drilling professionals when evaluating and selecting Annular Blowout Preventers for high-pressure applications. It ensures that the chosen ABOP can reliably perform its critical function of pressure containment throughout the drilling operation.
5 Annular Blowout Preventers: Important Notes
When considering the top 5 Annular Blowout Preventers for high-pressure drilling, it's essential to note their distinctive features and capabilities:
Hydril GK Annular BOP
The Hydril GK is popular for difficult drilling operations because to its sturdy design and high-pressure rating. Even under intense pressure and temperature, it seals well, assuring safety and dependability. For long-term operations in severe conditions, its sturdy construction reduces maintenance, making it cost-effective.
Shaffer Spherical Annular BOP
Its spherical form improves sealing and reduces packing element wear, making the Shaffer Spherical Annular BOP stand out. This design innovation increases BOP sealing efficiency and BOP service life, saving replacements and maintenance. Thus, it balances performance and cost-effectiveness well, especially in high-pressure applications that need dependability.
Cameron DL Annular BOP
The Cameron DL Annular BOP is designed for high-pressure, high-temperature deep wells. Its big diameter and high-pressure rating make it ideal for deepwater drilling and other difficult tasks. A dependable hydraulic system and superior sealing technologies provide successful sealing in the BOP even under extreme circumstances. The Cameron DL is chosen for deep, high-pressure wells because to its longevity and blowout prevention in severe situations.
NOV NXT Annular BOP
Next-generation Annular Blowout Preventer NOV NXT has new features that improve performance, lifespan, and dependability. It is designed to handle high pressure and give more operating flexibility than prior versions. Advanced sealing mechanisms and heat dissipation help the NXT work well in harsh situations. Its advanced technology improves drilling productivity, downtime, and safety.
Baker Hughes Annular BOP
The Baker Hughes Annular BOP is versatile and sturdy, making it ideal for many drilling operations. It strikes the right mix between pressure control and operational flexibility. For onshore and offshore drilling, the BOP prevents blowouts in a variety of pressure and temperature circumstances. Its user-friendliness and durability assure uninterrupted functioning, reducing downtime and service interventions and saving operating costs.
Interdimensional Analysis: Safety vs. Operational Flexibility
When looking into Annular Blowout Preventers for high-pressure drilling, it's important to find a balance between safety and the ability to change how things work. This interdimensional study looks at how these two important factors affect the design and choice of ABOP:
Things to think about for safety:
- Higher pressure ratings usually provide better safety margins.
- Strong sealing systems lower the chances of well control problems.
- Advanced monitoring and control systems make it easier to respond quickly to problems that can arise.
Finding an Annular Blowout Preventer that strikes the right balance between safety and operational flexibility is the hard part. For example, a greater pressure rating may make things safer, but it may also mean a smaller bore size or more complicated operations. On the other hand, an ABOP that is made to be as flexible as possible may not be able to hold as much pressure as it might.
Drilling engineers and management need to carefully think about these things depending on their own needs and risk evaluations. The idea is to choose an ABOP that gives the right amount of safety without making drilling operations or efficiency too difficult.
Comprehensive Deployment Strategies for High-Pressure Wells
Deploying Annular Blowout Preventers in high-pressure wells requires a comprehensive strategy that addresses various operational and safety aspects:
Pre-deployment Assessment:
- Conduct thorough well pressure predictions and risk assessments
- Evaluate the compatibility of the ABOP with existing BOP stack components
- Consider the potential for H2S or CO2 in the formation, which may affect material selection
Installation and Testing:
- Follow manufacturer guidelines for proper installation and alignment
- Perform comprehensive pressure testing before commencing drilling operations
- Verify the integrity of all seals, hydraulic connections, and control systems
Operational Procedures:
- Develop clear protocols for ABOP activation and deactivation
- Train drilling crews on proper ABOP operation and emergency procedures
- Implement regular inspection and maintenance schedules
By implementing a comprehensive deployment strategy, drilling operations can maximize the effectiveness of their Annular Blowout Preventers in high-pressure wells. This approach not only enhances safety but also contributes to operational efficiency and reliability in challenging drilling environments.
Conclusion
In conclusion, choosing and using Annular Blowout Preventers for high-pressure drilling affects well control, safety, and efficiency. The top 5 ABOPs described in this article are the latest technology and provide distinct benefits for various drilling circumstances. Drilling specialists may choose pressure ratings, sealing methods, and operating flexibility to meet project objectives and safety regulations.
Interdimensional comparison of safety against operational flexibility shows the complicated trade-offs in ABOP selection. It emphasizes the need for a balanced well control strategy that doesn't hinder drilling. Additionally, the detailed deployment tactics show how to maximize ABOP efficacy in high-pressure circumstances. Advanced Annular Blowout Preventers will become increasingly important when drilling operations approach harder, higher-pressure deposits. Advances in materials science, hydraulic systems, and control technologies will improve ABOPs, making high-pressure drilling safer and more efficient.
FAQ
1. What is high-pressure drilling's maximum Annular Blowout Preventer pressure rating?
High-pressure commercial Annular Blowout Preventers usually reach 20,000 psi. Some specialist types may have greater ratings for severe high-pressure applications. Each drilling project's well conditions and safety needs should determine the ABOP's selection.
2. How frequently should high-pressure drillers test Annular Blowout Preventers?
In high-pressure drilling, regulatory regulations, business policy, and operational circumstances determine Annular Blowout Preventer testing frequency. At least once every trip or every 7 days, ABOPs should be function checked. Pressure testing is done before starting the BOP stack and may be repeated every 14 or 21 days, depending on regulations or business norms.
3. Can high-pressure stacks employ Annular Blowout Preventers with other BOPs?
Annular Blowout Preventers are often utilized in high-pressure BOP stacks with ram preventers. A stack may have an ABOP at the top and many ram preventers. This setup offers many levels of well control, with the ABOP sealing versatilely and the ram preventers sealing for varied pipe diameters or open hole circumstances.
Partner with WELONG for Top-Tier Annular Blowout Preventers
Safety and efficiency depend on selecting the correct Annular Blowout Preventer for high-pressure drilling. After years of oilfield product expertise, WELONG provides high-pressure ABOPs that match the highest standards. We design our products for performance, durability, and dependability with excellence and customer happiness in mind.
WELONG is a recognized Annular Blowout Preventer supplier that offers customized drilling solutions. Our expertise can help you choose the correct ABOP for high-pressure drilling operations to ensure well control and operational safety. Avoid sacrificing safety and performance. Choose WELONG for your Annular Blowout Preventer requirements and see how quality, knowledge, and devoted support can improve your drilling operations.
For more information or to discuss your ABOP requirements, please contact us at oiltools15@welongpost.com. Let WELONG be your partner in achieving safe and successful high-pressure drilling operations.
