Typical Uses of Die Collars in Pipe Machining

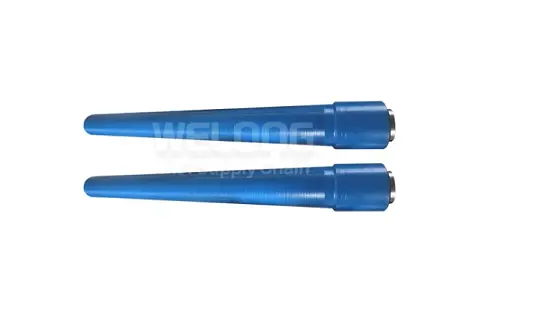

Die collars serve as indispensable external fishing tools in pipe machining operations, specifically designed to engage the outside wall of tubular objects like oil tubing and drill pipes. These specialized tools excel at retrieving cylindrical objects with blocked or absent inner bores, making them crucial for maintaining operational efficiency in oil and gas drilling operations. The die collar's robust construction and cutting-edge fishing threads enable reliable engagement with stuck equipment during critical downhole situations.

​​​​​​​

Understanding Die Collar Functionality in Modern Drilling Operations

When drilling operations encounter stuck pipe or lost equipment downhole, time becomes money. Die collars offer an efficient solution by cutting external threads into the outer surface of the fish (stuck object). This external gripping mechanism differs from internal fishing tools, making it particularly valuable when internal access remains impossible. The tool's design centers around high-strength alloy construction with precisely machined cutting grooves. These grooves form fishing threads that bite into the target object's exterior surface. Unlike other fishing tools that require internal access, die collars work exclusively on the outside diameter, expanding their application range significantly. Professional drilling contractors often prefer these tools because they provide excellent grip strength for light to medium-duty recovery operations. The cutting action creates secure engagement points that distribute lifting forces evenly across the fish's circumference, reducing the risk of further damage during extraction.

Primary Applications of Die Collars in Downhole Recovery

Stuck Drill Pipe Recovery

Drill pipe recovery represents the most common application for die collars. When drill strings become stuck due to differential pressure, wellbore instability, or mechanical issues, traditional internal fishing methods may prove inadequate. The die collar engages the pipe's outer surface, creating fresh threads that provide reliable lifting points. The recovery process involves lowering the die collar over the fish's outside diameter while applying controlled weight and rotation. The cutting teeth gradually form new threads, establishing a mechanical connection that can withstand substantial lifting forces. This method works particularly well when the drill pipe's internal diameter remains blocked with debris or cement.

Tubing String Extraction

Production tubing extraction often requires external fishing tools when tubing becomes stuck or when internal fishing neck availability becomes limited. Die collars excel in these scenarios by engaging the tubing's smooth exterior surface. The tool cuts precise threads that match the collar's internal threading, creating a secure mechanical connection. This application proves especially valuable during workover operations where quick tubing removal becomes essential. The die collar's ability to engage anywhere along the tubing's length provides flexibility in fishing point selection, allowing operators to avoid damaged sections or choose optimal engagement zones.

Casing Collar Recovery Operations

Damaged or stuck casing collars present unique challenges in drilling operations. Die collars offer an effective solution by engaging the collar's exterior surface, bypassing internal restrictions or damage. The tool's cutting action creates new engagement threads without requiring access to existing threading. These operations often involve careful weight and rotation control to ensure proper thread formation without excessive damage to the recovered equipment. The die collar's graduated cutting teeth allow for controlled engagement that maximizes holding strength while preserving as much of the original equipment as possible.

Lost Equipment Retrieval

Downhole equipment loss occurs frequently during drilling and completion operations. Packers, flow control devices, and other completion equipment can become stuck or lost during installation or removal. Die collars provide an effective means of engaging these objects when internal fishing methods prove insufficient. The tool's external engagement capability makes it particularly valuable for recovering equipment with complex internal geometries or blocked passages. By cutting threads into the equipment's outer surface, operators can establish reliable lifting points that accommodate various equipment shapes and sizes.

Wash-Over Pipe Fishing

Wash-over operations sometimes result in stuck or damaged wash-over pipe that requires external fishing methods. Die collars can engage the wash-over pipe's exterior surface, providing an alternative to internal fishing when the pipe's interior becomes inaccessible. This application often involves coordinating the die collar operation with continued washing efforts to free the stuck assembly. The external engagement allows for lifting forces to be applied while maintaining circulation and washing action around the stuck components.

Production Equipment Recovery

Downhole production equipment, including flow control devices and monitoring equipment, occasionally requires recovery using external fishing methods. Die collars can engage these devices' outer surfaces, establishing lifting points that accommodate their complex geometries. The precision cutting action of quality die collars ensures that engagement threads form properly without excessive damage to sensitive production equipment. This careful approach preserves equipment value while enabling successful recovery operations.

Emergency Fishing Situations

Critical fishing situations often require immediate action with available tools. Die collars provide a reliable backup option when specialized fishing tools remain unavailable or when standard methods fail. Their external engagement capability offers an alternative approach that can resolve challenging fishing situations quickly. These emergency applications benefit from the die collar's relatively simple operation and reliable performance. Experienced drilling crews can deploy these tools rapidly while maintaining confidence in their holding strength and engagement reliability.

Technical Advantages and Performance Benefits

Die collars offer several technical advantages that make them preferred tools in specific fishing scenarios. Their external engagement mechanism eliminates the need for internal access, expanding application possibilities significantly. The cutting action creates fresh, clean threads that provide excellent holding strength without relying on existing threading or connection points. The tools' robust construction enables them to withstand high pulling forces while maintaining thread integrity. Quality die collars utilize advanced metallurgy and precise machining to ensure consistent performance across various fishing applications. Heat treatment and surface hardening enhance cutting edge durability and thread-forming capability. Modern die collar designs incorporate features that improve performance and reliability. Graduated cutting teeth ensure progressive thread formation that maximizes engagement without excessive shock loading. Integral guide systems help maintain proper alignment during engagement, reducing the risk of thread damage or improper cutting.

Selection Criteria and Application Guidelines

Choosing the fitting die collar for particular applications requires cautious thought of a few variables. Angle breadth, anticipated pulling powers, and wellbore conditions all impact apparatus determination. Legitimate measuring guarantees ideal cutting execution whereas keeping up satisfactory string engagement length. Operational parameters counting weight-on-collar, revolution speed, and circulation rates must be optimized for each application. Over the top weight can harm the angle or cause untimely apparatus disappointment, whereas deficiently weight may result in destitute string arrangement. Revolution speed influences cutting effectiveness and string quality, requiring cautious control all through the engagement handle.

Conclusion

Die collars represent essential tools in modern drilling and workover operations, providing reliable external fishing capabilities when internal methods prove insufficient. Their versatility across multiple applications, from stuck drill pipe recovery to production equipment retrieval, makes them valuable additions to any fishing tool inventory. Understanding proper application techniques and selection criteria ensures optimal performance while maximizing operational efficiency. With proper tool selection and operational expertise, die collars continue proving their worth as indispensable components in successful downhole recovery operations.

FAQ

1. What makes die collars different from other fishing tools?

Die collars work exclusively on the exterior surface of stuck objects, unlike internal fishing tools that require access to the fish's interior. This external engagement capability makes them valuable when internal methods prove impossible or ineffective.

2. How do operators ensure proper thread formation?

Proper thread formation requires controlled weight application and steady rotation speed. Operators monitor torque response and cutting progress to ensure optimal thread development without excessive damage to the fish or fishing tool.

3. Can die collars handle high pulling forces?

Quality die collars manufactured to API specifications can handle substantial pulling forces when properly engaged. Thread engagement length and fish material properties determine maximum safe pulling loads for specific applications.

4. What fish diameters work best with die collars?

Die collars are available in various sizes to accommodate different pipe diameters. Proper sizing ensures adequate thread engagement while maintaining cutting efficiency. Manufacturers provide sizing charts that match collar specifications to fish dimensions.

5. How long does the engagement process typically take?

Engagement time varies based on fish material, collar size, and operational parameters. Most engagements complete within 15-30 minutes of controlled rotation and weight application, though harder materials may require additional time.

6. Are there limitations to die collar applications?

Die collars work best on cylindrical objects with adequate wall thickness for thread formation. Very thin-walled objects or highly damaged fish may not provide sufficient material for reliable thread engagement.
