Annealing vs. Quenching: Key Differences Explained
Annealing and quenching heat treatment processes are both approaches yet they have extremely distinct impacts on metal characteristics.
The purpose of annealing is to improve workability and to relieve internal tension. In the procedure the metal is heated and then cooled slowly so that its inner structure is more stable. This results in annealed materials usually having higher ductility, greater machinability and less chance of breaking in further processing.
Quenching, conversely, refers to fast cooling, generally by means of water, oil or other cooling media. Fast temperature change effects the metal microstructure and may lead to martensite formation in steel materials. This change greatly improves hardness and wear resistance, allowing the use of quenched parts in tough industrial environments.
The main difference can be summarized as follows:
| Aspect | Annealing | Quenching |
|---|---|---|
| Cooling method | Slow and controlled cooling | Rapid cooling |
| Main purpose | Reduce stress and improve ductility | Increase hardness and strength |
| Material structure | More stable and softer structure | Harder martensitic structure in steel |
| Typical application | Machining, forming, stress relief | Wear-resistant and high-load components |
Effects on Material Properties
Whether you choose to anneal or quench depends on the material qualities you want and the circumstances in which the part will be used.
Annealing is a heat treatment that makes metals more ductile and tougher but less hard. These properties make them appropriate to be used in applications where further forming, machining or deformation is necessary. Annealing may also increase dimensional stability and lessen the chance of cracking in manufacture by minimising residual stress.
The quenched metals give better hardness, wear resistance and strength. These qualities are particularly useful for components subjected to high loads, high wear and mechanical stress. For example, Quenching Rolls must have enough surface hardness to survive severe rolling circumstances.
However, too much hardness may also lead to brittleness if the heat treatment procedure is not well managed. As such, producers frequently have to compromise hardness and toughness to provide consistent long-term performance.
Application in Industrial Processes
In industrial production the choice of the appropriate heat treatment process is of utmost importance to get the required performance of the component.
Quenching Rolls are a classic example of components where the heat treatment plays a vital role for steel processing equipment. These rollers are operating under circumstances of high mechanical load, continual contact stress and difficult working conditions during rolling operations.
A good quenching procedure may enhance the surface hardness and wear resistance of the roll,which is beneficial for maintaining its performance in use. Also, it is necessary to manage the internal structure of the roll, as the excessive hardness of the whole component might decrease toughness and raise the danger of failure.
Therefore, the manufacturers will design the heat treatment techniques carefully based on the component size, material composition, and application requirements.
Microstructural Changes During Annealing and Quenching
The varied performance characteristics of annealed and quenched metals are very strongly tied to changes in the microstructure of their interiors.
Understanding these changes on a microscopic level may help manufacturers choose the right heat treatment procedures for their particular uses.
Annealing Process and Its Impact
During annealing the metal experiences structural changes, such as recovery, recrystallisation and grain growth.
When the atoms are heated to the proper temperature they have enough energy to re-arrange themselves. This allows for the elimination of internal tensions and the reduction of flaws introduced in earlier production activities.
As the cooling is gradual, the new grains grow into a more stable structure. The resulting material generally exhibits improved ductility, machinability and lower hardness than quenched materials.
For parts that will be further processed before their ultimate use , annealing provide more flexibility and less danger of damage during production .
Quenching and Martensitic Transformation
The microstructural change of quenching is very different from annealing.
Rapid cooling causes carbon atoms to get locked in the crystal structure of iron, which results in the production of martensite. This hardened structure builds more strength and wear resistance.
This transformation is especially significant for Quenching Rolls . It demands a certain hardness of the working surface so that it can withstand wear in continuous operation in steel mills.
Internal strains may also be introduced via martensitic structures. Without adequate management or extra heat treatment techniques where necessary these pressures may degrade toughness and increase brittleness.
Therefore, a major concern in the manufacture of quenched components is to achieve the proper balance between hardness and toughness.
Choosing Between Annealing and Quenching in Manufacturing
When choosing between annealing and quenching, numerous issues must be considered: the composition of the material, the design of the part, and the specifications of the ultimate use.
Different production objectives need different heat treatment solutions. A part to be machined may need to be annealed, a part to be used where there is severe wear may need to be quenched.
Factors Influencing the Choice
The selection of annealing or quenching is based on many fundamental factors:
1. Application requirements: The needed material qualities are determined by the operating environment, mechanical loads and predicted service conditions.
2. Material composition: Different metals and alloys are affected differently by heat treatment techniques. The ultimate structure may be greatly influenced by the carbon concentration and alloying elements.
3. Geometry of the component: The heating and cooling behaviour of a component during heat treatment is determined by its size and form.
4. Cost and efficiency: Annealing is generally slower because to the slow cooling process and quenching must be carefully controlled in terms of cooling parameters to get consistent results.

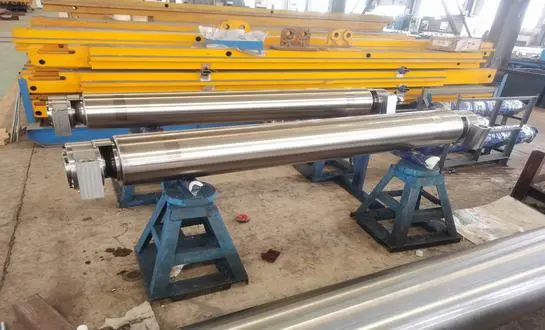

Case Study: Quenching Rolls in Steel Manufacturing
Quenching Rolls in steel manufacture highlight the direct impact of heat treatment on the performance of industrial components.
These rollers must work reliably under constant mechanical load, under friction and difficult manufacturing circumstances. The quenching procedure is often used to enhance surface hardness and wear resistance so that the roll surface may better handle operating stresses.
At the same time appropriate hardness within the roll should be maintained too. A well-designed heat treatment technique will provide a wear-resistant surface and a strong interior structure.
The dependability and service life of quenching rolls for industrial applications may be enhanced by the selection of proper materials and management of heat treatment settings by the producers.
Conclusion
If you’re looking to improve the performance of metal components across a wide range of sectors, it is important to understand the difference between annealing and quenching.
Annealing has the advantages of increased ductility, decreased internal stress and enhanced machinability . Quenching promotes hardness, strength and wear resistance via microstructural alteration .
Appropriate selection of heat treatment process for industrial components such as Quenching Rolls is crucial for optimum mix of durability and operational effectiveness. As manufacturing technology continues to evolve, the careful management of heat treatment remains a key feature in the production of durable metal components.
