How do drill pipe screens work? A drill pipe screen removes large particles and debris from drilling fluid in directional drilling to safeguard expensive MWD equipment. These specialized downhole tools contain correct holes or slots to let drilling fluid flow freely while capturing contaminants that could damage sensitive sensors. In wellbore operations, the mechanically filtered screen protects valuable equipment from mud.

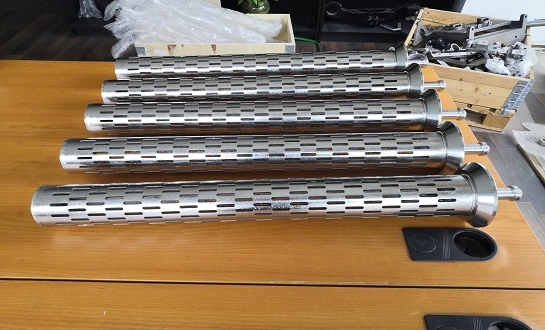

What is Drill Pipe Screen?
Advanced Filtration for Drilling Operations
Drill pipe screens protect MWD equipment from drilling fluid particles in oil drilling. Ultra-efficient flow and particle separation are achieved by these screens' cylindrical stainless steel housing and precision-engineered perforations.
Durability and Corrosion Resistance
Contemporary drill pipe screens are made of corrosion-resistant 304 and 316 stainless steel. These materials can handle today's drilling pressures, temperatures, and chemicals.
Customizable Filtration and Efficient Design
Drill pipe screens combine hydraulic performance with filtering efficiency. Users can optimize filtering by changing ring flanges based on drilling conditions.
Recovery and Age
Standard overshot compatibility makes screen recovery easy, reducing downtime. The internal wear distribution sleeve reduces wear, extending operational life and reliability.
Critical Problems Solved by Drill Pipe Screens
Protecting Downhole Equipment from Debris
Drilling debris can ruin pricey MWD tools. Silt, rock cuts, and formation particles damage sensitive equipment, causing costly failures and late operations.
The Cost of MWD Tools
Many MWD tools cost hundreds of thousands of dollars. These devices must be protected for wellbore stability, formation evaluation, and drilling performance.
Preventing Damage to Hydraulic Systems
Effective filtration maintains flow and protects hydraulic systems and pressure controls, ensuring borehole stability and mud circulation.
Erosion Protection and Equipment Longevity
High-velocity fluids containing abrasives degrade equipment. Drill pipe screens catch these particles, avoiding erosion, increasing equipment life, and boosting rig safety.
Minimizing Contamination-Related Failures
To ensure smooth and cost-effective drilling, drill pipe screens prevent contamination and eliminate the need for expensive fishing, wellbore cleanouts, and assembly replacements.
Core Features and Functionality Deep Dive
Slotted vs. Perforated Screens
Different drilling situations demand slotted and perforated screens. Narrow slots capture certain debris ranges while maintaining ideal flow rates, preventing plugging. Circular perforated screens maximize space and streamline filtering and hydraulics.
Variable Ring Flange Technology
The innovative ring flange technology provides flexibility for drilling contractors. This modular design allows quick adjustments to accommodate varying wellbore, formation, and fluid conditions, enhancing operational efficiency and reducing inventory needs.
Internal Wear Dispersion and Screen Longevity
The wear dispersion sleeve redirects hydraulic forces, preventing localized wear patterns in high-flow applications. This technology extends screen life and reduces replacement frequency, leading to cost savings during extended drilling operations.
Safety Retaining Rods and Reliability
Safety retaining rods act as a backup for screen failure. They prevent catastrophic discharges, safeguarding downstream equipment and wellbore safety. The redundant design ensures reliable performance under high-stress conditions.
Material Selection and Quality Control
The choice of materials like 304 and 316 stainless steel ensures durability. 304 is used for standard applications, while 316 provides corrosion resistance in harsh environments. Both materials undergo rigorous quality control for reliability and performance.
Advanced Technology and Engineering Principles
Optimizing Screen Design with Fluid Dynamics
Screen design is optimized by assessing fluid dynamics through computational models. Engineers evaluate flow, pressure, and particle motion to reduce pressure losses and enhance drilling efficiency.
Multi-Stage Filtration Principles
Multiple filtering methods work together to separate particles. Mechanical straining captures large debris, while flow velocity variations settle denser particles. The screen geometry creates turbulence patterns to improve separation without increasing pressure drops.
Material Engineering for Durability
Metallurgical engineering ensures screens withstand harsh downhole conditions. Heat treatment enhances material properties, and precision machining ensures uniform opening dimensions, while quality control verifies mechanical strength, accuracy, and surface finish.
Hydraulic Optimization and Advanced Modelling
Flow coefficients, Reynolds numbers, and pressure recovery are considered to optimize hydraulics. Advanced modeling predicts screen performance under various operational conditions, preventing contamination and ensuring fluid circulation.
Lean Production and Quality Assurance
Manufacturing follows lean production methods and statistical quality control. Each screen undergoes dimensional verification, pressure testing, and material certification to ensure batch reliability and consistent performance.
Key Advantages and Performance Benefits
Equipment Protection and Cost Savings
The primary reason for screen adoption is protecting equipment. Screens minimize debris damage to MWD tools, reducing the need for costly replacements and preventing downtime. Proper installation leads to significant cost reductions in field operations.
Boosting Operational Efficiency
By reducing maintenance needs and ensuring uninterrupted drilling, screens enhance operational efficiency. They prevent delays, keeping projects on schedule and within budget, while improving equipment reliability and overall drilling performance.
Versatility in Drilling Applications
Screens are versatile and adaptable to various drilling conditions. They accommodate different wellbore geometries, formation types, and fluid parameters, reducing inventory needs and enhancing operational flexibility.
Retrievable Design for Easy Deployment
The retrievable design allows for quick deployment and recovery. Overshot compatibility with existing drilling equipment simplifies usage and reduces training requirements, contributing to consistent drilling operations.
Reliability and Long-Term Performance
Strong construction and proven design principles ensure long-term reliability. Field testing demonstrates extended operating life even under severe conditions, reducing the need for frequent replacements and lowering costs.
Limitations and Operational Considerations
Evaluating Drilling Parameters for Screen Selection
Proper screen selection requires assessing drilling parameters and formation characteristics. Incorrect screen sizing can lead to pressure losses and poor filtration, ultimately reducing drilling efficiency. Operators must account for flow rates, particle sizes, and wellbore conditions when configuring screens.
Maintenance Considerations
Screen maintenance adds complexity and cost to operations. Regular inspection and cleaning ensure optimal performance but require skilled staff and specific equipment. Scheduling maintenance is crucial for prolonging screen life and maintaining consistent performance.
Cost Analysis and Investment Justification
Initial costs may be higher compared to uncovered drilling assemblies, but the reduction in long-term equipment damage and operational efficiency gains justify the investment. A comprehensive cost-of-ownership analysis, rather than just the purchase price, should guide decisions.
Flow Capacity for High-Rate Applications
In high-rate drilling applications, flow capacity may be limited. Screen pressure losses must be evaluated against hydraulic horsepower to ensure adequate fluid circulation. Extreme flow rate conditions may require multiple screens or configurations.
Environmental Impact on Screen Performance
Environmental conditions, such as corrosive drilling fluids, high temperatures, or abrasive formations, can affect screen performance and lifespan. Specialized materials or designs may be necessary for these harsh environments, requiring careful selection during the planning phase.
Competitive Analysis and Market Position
Mesh Screens vs. Precision Drill Pipe Screens
Mesh screens are a cost-effective alternative to precision-engineered drill pipe screens. While they are cheaper, they have lower durability and less uniform filtration. Mesh screens can bend under pressure and may allow particle bypass in high-flow conditions.
Complementary Technologies
Magnetic separators and centrifugal cleaners address different contamination mechanisms but cannot replace drill pipe screens. These technologies work alongside screens to offer additional protection in challenging conditions.
Quality and Long-Term Performance
Premium screens outperform cheaper alternatives in terms of longevity, retrieval, and performance. Despite higher initial costs, the total cost of ownership favors higher-quality screens due to their extended lifespan and reduced maintenance.
Manufacturing and Delivery Reliability
Manufacturing capabilities determine product quality and delivery reliability. Established enterprises with robust quality control systems produce high-quality products, while worldwide distribution networks affect availability and delivery times.
After-Sales Service and Technical Support
Technical support and after-sales service set top providers apart. Complex drilling operations require advanced documentation, field assistance, and application engineering, which add value beyond the product.
Target Applications and Ideal Use Cases
Drill Pipe Screens for Directional Drilling
Drill pipe screens protect expensive MWD equipment from formation debris and drilling fluids during directional drilling. Directional wells' complex wellbore geometries and large drilling distances increase contamination risks, making screens vital for equipment safety.
Screens in Horizontal Drilling
Horizontal drilling benefits from screens because prolonged lateral sections generate enormous amounts of cuttings that threaten equipment. Preventive filtering improves drilling efficiency, especially in difficult cleanouts.
Offshore Drilling and Equipment Reliability
Offshore drilling equipment reliability is crucial due to high replacement costs and operational delays in marine environments. Drill pipe screens reduce dangers and ensure drilling continuity.
Shale Gas and Tight Oil Drilling Challenges
Abrasive deposits and complex fluid systems can wear equipment in shale gas and tight oil drilling. These harsh conditions require drill pipe screens to safeguard equipment.
Remote International Drilling Operations
In remote international drilling projects with limited technical assistance and replacement equipment, protective screens are essential. These screens maintain operations and reduce external support.
Conclusion and Industry Outlook
Equipment safety and efficiency require drill pipe screens. Modern drilling operations need them to avoid pollution, reduce risks, and boost performance. Effective equipment protection systems will become increasingly vital as drilling technology and wellbore complexity progress. To ensure efficient and reliable drilling operations, the oil sector relies on drill pipe screens' proven technology, constant innovation, and extended manufacturing support.
Frequently Asked Questions
Q1: How often should drill pipe screens be replaced during drilling operations?
A: Screen replacement frequency depends on formation characteristics, drilling fluid properties, and operational conditions. Typically, screens can operate for multiple wellbore sections before requiring replacement. Regular inspection during connections allows operators to assess screen condition and plan replacement timing based on actual wear rather than predetermined schedules.
Q2: Can drill pipe screens cause significant pressure losses in the drilling system?
A: Modern drill pipe screens are engineered to minimize pressure losses while maintaining effective filtration. The 33% open area design ensures adequate flow capacity for most drilling applications. Pressure losses typically range from 50-200 psi depending on flow rates and screen configuration, which represents a small fraction of total system pressure.
Q3: What happens if a drill pipe screen becomes completely plugged during drilling?
A: Screen plugging triggers immediate pressure increases that drilling operators can monitor through surface equipment. Emergency procedures involve reducing flow rates and circulating cleaning agents to restore screen function. If cleaning proves ineffective, the screen can be retrieved using standard overshot tools and replaced with a clean unit to resume drilling operations.
Choose WELONG for Reliable Drill Pipe Screen Solutions
Drill pipe screen maker WELONG has 20 years of oilfield equipment expertise. Our entire manufacturing capabilities generate high-quality screens that meet current drilling operations' rigorous standards at reasonable pricing.
ISO 9001:2015 and API 7-1 certifications demonstrate our quality and industry standards commitment. These certificates guarantee our drill pipe screens meet exacting requirements and performance criteria. Our comprehensive quality control comprises in-process, final, and optional SGS and DNV inspections.
We prioritize delivery dependability in client service. With efficient manufacturing schedules, our expert production teams satisfy global delivery dates. For diverse client demands, we provide sea, air, and railway shipment with FOB, CIF, DDP, and DDU terms.
Contact oiltools15@welongpost.com for reliable drill pipe screen solutions supported by proven manufacture and extensive support. Our skilled staff will discuss your needs and deliver unique solutions to improve drilling safety, efficiency, and profitability.
