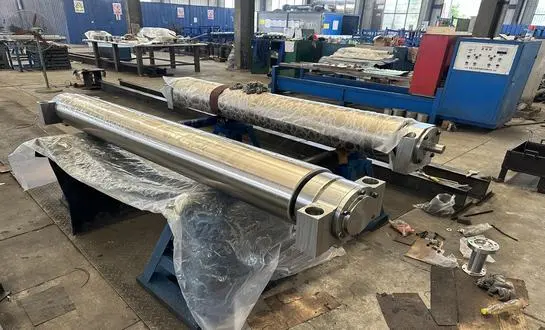

How do rolling mill rolls reduce metal thickness effectively?
Pressure application and material flow
Rolling mill rolls achieve effective thickness reduction through a combination of pressure application and controlled material flow. As the metal enters the gap of roll for steel mill, it experiences intense compressive forces that cause it to deform plastically. This deformation process elongates the material in the rolling direction while simultaneously reducing its thickness. The precise control of roll gap, speed, and tension ensures uniform material distribution and consistent thickness reduction across the width of the workpiece.
Roll bite mechanics
The effectiveness of thickness reduction is heavily influenced by the mechanics of the roll bite - the area where the roll contacts the metal. As the workpiece enters this zone, it undergoes elastic-plastic deformation. The roll bite angle, determined by factors such as roll diameter and reduction ratio, plays a crucial role in determining the forces acting on the material. Optimizing this angle helps maximize the reduction capability while minimizing energy consumption and wear on the rolls.
Surface friction and lubrication
Surface friction between the rolls and the metal is another critical factor in thickness reduction. While some friction is necessary to draw the material through the rolls, excessive friction can lead to surface defects and increased energy requirements. Proper lubrication strategies help manage this friction, allowing for smoother material flow and improved surface finish. Advanced lubricants and application techniques enable higher reduction ratios and better overall rolling performance.
The science behind roll pressure and material deformation
Stress distribution in the roll gap
The science of roll pressure and material deformation is rooted in complex stress distributions within the roll gap. As the metal passes between the rolls, it experiences a combination of normal and shear stresses. These stresses vary across the thickness of the material, with the highest pressures typically occurring at the roll-metal interface. Understanding this stress distribution is crucial for predicting material flow, preventing defects, and optimizing roll for steel mill design. Advanced finite element analysis techniques allow engineers to model these stress patterns, leading to improved roll profiles and pass schedules.
Strain hardening and microstructural changes
As the metal undergoes deformation in the roll for steel mill, it experiences significant microstructural changes. The most notable of these is strain hardening, where the material's strength increases due to the multiplication and interaction of dislocations within its crystal structure. This phenomenon can be both beneficial and challenging, as it enhances the material's strength but also increases the force required for further deformation. Rolling parameters must be carefully controlled to achieve the desired balance between strength and formability in the final product.
Temperature effects on deformation behavior
Temperature plays a pivotal role in the deformation behavior of metals during rolling. In hot rolling processes, elevated temperatures facilitate easier deformation by reducing the material's yield strength and promoting dynamic recrystallization. Conversely, cold rolling at lower temperatures leads to greater strain hardening and potentially higher strength in the final product. The interplay between temperature, deformation rate, and material properties significantly influences the rolling process's efficiency and the resulting material characteristics.
Differences between two-high, four-high, and cluster mill rolls
Two-high mill configuration and applications
Two-high rolling mills represent the simplest configuration, consisting of two opposing rolls. This setup is often used for initial breakdown passes or in applications where simplicity and cost-effectiveness are prioritized. Two-high mills offer advantages in terms of easy roll changes and straightforward operation. However, they may be limited in their ability to control strip shape and thickness uniformity, especially for thinner materials. These mills are commonly employed in the production of heavy plates or in smaller-scale rolling operations.
Four-high mill advantages and precision control
Four-high mills introduce two additional backup rolls to support the work rolls. This configuration offers superior control over strip flatness and thickness consistency. The backup rolls allow for smaller diameter work rolls, which can apply higher specific pressures without excessive deflection. This arrangement is particularly beneficial for rolling thinner gauges and achieving tighter tolerances. Four-high mills are widely used in the production of high-quality sheet and strip products, offering a balance between versatility and precision.
Cluster mill technology for ultra-thin materials
Cluster mills, also known as Sendzimir mills, represent the pinnacle of rolling technology for ultra-thin materials. These mills feature multiple small-diameter work rolls supported by a cluster of backup rolls. This complex arrangement allows for extremely high rolling forces while minimizing roll deflection. Cluster mills excel in producing very thin gauge materials with exceptional flatness and surface finish. They are indispensable in the production of foils and precision strips used in industries such as electronics and packaging.
In conclusion, the working principle of the roll for steel mill is a cornerstone of modern metal processing technology. From the basic mechanics of thickness reduction to the advanced configurations of various mill types, rolling continues to evolve, driven by the demands for higher quality, greater efficiency, and more specialized products. As we've explored, the interplay of pressure, material science, and mill design creates a rich field of study and innovation. For those in the metal processing industry, staying abreast of these developments is crucial for maintaining competitiveness and driving progress. If you're looking to enhance your rolling operations or require custom solutions for your metal processing needs, don't hesitate to reach out to experts in the field. For more information on cutting-edge rolling technologies and customized solutions, contact us at oiltools15@welongpost.com. Welong stands ready to support your metal processing endeavors with state-of-the-art equipment and expertise.
