Because of the high pressure, there is a chance that gas, oil, or other fluids will increase during digging. Because of its unique shape, the Annular BOP can snugly fit around drill pipe, tubing, or even an empty hole with different sizes. It is an important part of any system for controlling wells because it can be used in many ways. The Annular BOP controls fluids and wellbore pressure to protect the environment, the lives of drilling workers, and valuable resources. In addition, the Annular BOP can quickly seal off the well when the pressure changes, which makes blowouts less likely. Being able to move quickly is important for keeping wells alive and stopping bad events from getting worse. The Annular BOP is being used by drilling companies more and more to make sure that they can safely and effectively explore deeper and harder areas.
Anatomy of well control: BOP types explained
Understanding the various types of Blowout Preventers (BOPs) is crucial for effective well control. While the Annular Blowout Preventer is a key component, it works in conjunction with other BOP types to form a comprehensive well control system.
Ram-type BOPs
Ram-type BOPs are designed to seal the wellbore by using two opposing rams that close against each other or around the drill pipe. There are several types of ram BOPs:
- Pipe Rams: These seal around a specific size of drill pipe or casing.
- Variable Bore Rams: Capable of sealing around a range of pipe sizes.
- Blind Rams: Used to completely seal an open hole when no pipe is present.
- Shear Rams: Designed to cut through drill pipe and seal the wellbore in extreme situations.
Annular BOPs

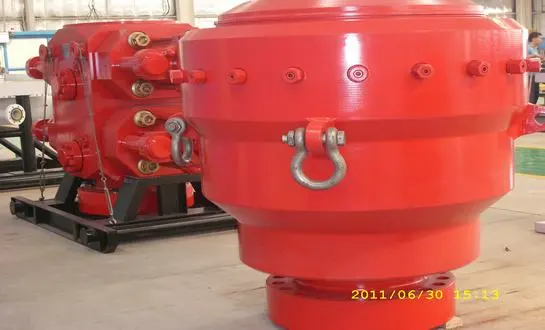

There is a donut-shaped rubber closing element in the Annular BOP made by an Annular Blowout Preventer manufacturer that can fit around different sizes of drill pipe or close off an open hole. Because it can be used in many ways, it is an important part of any BOP stack.
Diverter Systems
While not technically a BOP, diverter systems are often included in well control discussions. They are designed to redirect flow away from the rig in case of a shallow gas kick.
Pressure management: Annular BOP vs. Ram preventers
Effective pressure management is crucial in drilling operations, and both Annular BOPs and Ram preventers play vital roles in this aspect. However, they have distinct characteristics and applications.
Annular BOP Pressure Management
The Annular Blowout Preventer excels in versatility and adaptability when it comes to pressure management:
- Variable Sealing: Can seal around various pipe sizes and shapes, including an open hole.
- Lower Operating Pressures: Typically requires lower hydraulic pressures to operate, reducing wear on the system.
- Frequent Use: Often used for stripping operations and as the primary well control device during normal drilling.
Ram Preventer Pressure Management
Ram preventers offer specific advantages in certain pressure management scenarios:
- Higher Pressure Ratings: Generally capable of withstanding higher wellbore pressures than Annular BOPs.
- Specific Sealing: Different ram types for specific pipe sizes or complete wellbore closure.
- Backup Role: Often used as a secondary seal after the Annular BOP or in high-pressure situations.
Complementary Roles
In practice, Annular BOPs and Ram preventers work together to provide comprehensive pressure management:
- The Annular BOP often serves as the first line of defense, closing quickly on various pipe sizes.
- Ram preventers provide additional sealing capacity and can handle higher pressures when needed.
- This combination ensures effective pressure control across a wide range of drilling scenarios.
5 critical scenarios where Annular BOPs save lives
The Annular Blowout Preventer plays a crucial role in several high-risk scenarios during drilling operations. Here are five critical situations where Annular BOPs have proven to be lifesavers:
1. Unexpected Pressure Kicks
During drilling, sudden increases in wellbore pressure can occur, known as "kicks." Annular BOPs can quickly seal the wellbore, preventing these kicks from escalating into full-blown blowouts.
2. Emergency Disconnects
In offshore drilling, emergency disconnects may be necessary due to severe weather or other hazards. Annular BOPs can seal the well rapidly, allowing for safe disconnection of the drilling rig from the wellhead.
3. Pipe Stripping Operations
When it's necessary to remove drill pipe from the well while maintaining pressure control, the Annular BOP's ability to seal around moving pipe is invaluable. This process, known as stripping, would be significantly more dangerous without an Annular BOP.
4. Well Testing
During well testing operations, Annular BOPs provide a reliable seal that allows for controlled flow testing while maintaining the ability to quickly shut in the well if necessary.
5. Shallow Gas Encounters
In areas prone to shallow gas pockets, Annular BOPs can quickly seal the wellbore if unexpected gas is encountered during the initial stages of drilling, preventing potential blowouts.
Conclusion
When it comes to well control and drilling safety, the Annular Blowout Preventer is essential. Its capacity to swiftly react to variations in pressure and its adaptability in sealing around pipes of varying diameters make it an essential instrument for avoiding disastrous blowouts. It is becoming more and more important for the Annular BOP to play a role in protecting people, the environment, and precious resources as drilling moves into more difficult settings.
Proper maintenance, frequent testing, well-trained staff, and a variety of BOP types are essential for successful well control, of which the Annular BOP is a crucial component. Annular BOPs have shown to be a useful tool for facilitating safe and efficient drilling operations, and we can anticipate that their design and performance will only become better as technology progresses.
An integral part of the oil and gas industry's dedication to safety and environmental responsibility is the continuous improvement and deployment of cutting-edge well control technology, one of which is the Annular BOP.
FAQ
Q1: What is the main function of an Annular Blowout Preventer?
A: The main function of an Annular Blowout Preventer is to seal the wellbore and prevent uncontrolled release of formation fluids during drilling operations. It can seal around various sizes of drill pipe or an open hole, providing a crucial safety barrier against potential blowouts.
Q2: How does an Annular BOP differ from a Ram BOP?
A: An Annular BOP uses a donut-shaped rubber sealing element that can close around various pipe sizes or seal an open hole. In contrast, Ram BOPs use opposing rams to seal the wellbore and are typically designed for specific pipe sizes or to completely seal an open hole.
Q3: How often should Annular Blowout Preventers be tested?
A: The frequency of Annular BOP testing depends on regulatory requirements and company policies. However, it's common practice to perform function tests at least once per week and pressure tests at least every 14 days or when the BOP is reinstalled after being removed from the wellbore.
Take Control of Your Drilling Safety with Welong's Annular Blowout Preventers
Don't compromise on well control and safety. Choose Welong's high-quality Annular Blowout Preventers for your drilling operations. Our BOPs are designed to meet the highest industry standards, providing reliable performance and peace of mind in even the most challenging drilling environments.
With Welong, you benefit from:
- Superior quality control ensuring durable and reliable products
- Customized solutions to meet your specific drilling needs
- Comprehensive after-sales support and service
- Competitive pricing without compromising on quality
Take the next step in enhancing your drilling safety. Contact our expert team today at oiltools15@welongpost.com to discuss how our Annular Blowout Preventers can support your operations. As a leading Annular Blowout Preventer manufacturer, we're committed to empowering your drilling projects with the finest well control equipment from China.
