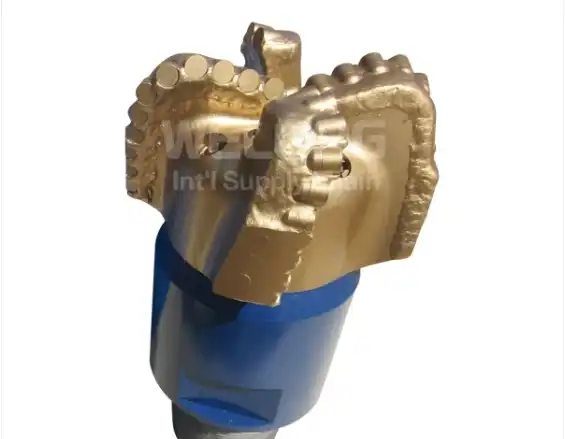

Rock Hardness Impact on PDC Bit Selection
The hardest rock formation is the primary factor in selecting the best PDC drill bit for a certain drilling job. There are three basic ways to describe the hardness of rocks: hard, medium, and soft. For best performance, you need certain bit qualities for each category, which comes with its own set of obstacles.
Hard Rock Formations
Drilling through hard rock formations demands PDC bits with robust features to withstand high compressive strengths and abrasive properties. These formations often include granite, quartzite, and hard limestone. When selecting a PDC bit for hard rock, consider the following factors:
- Cutter density: Higher cutter density provides more cutting points, distributing the load and reducing individual cutter wear.
- Diamond layer thickness: Thicker diamond layers on cutters offer increased durability and resistance to abrasion.
- Back rake angle: A higher back rake angle (typically 20-30 degrees) helps protect cutters from excessive impact and chipping.
- Blade count: More blades can provide better stability and distribute the cutting force more evenly.
Medium Rock Formations
Medium hardness formations, such as sandstone and dolomite, require a balance between aggressive cutting action and durability. PDC bits for medium rock should possess:
- Moderate cutter density: Balancing cutting efficiency with adequate support for each cutter.
- Optimized back rake angle: Usually ranging from 15-25 degrees to provide a good balance between aggressiveness and protection.
- Enhanced hydraulics: Efficient fluid flow designs to ensure proper cleaning and cooling of cutters.
Soft Rock Formations
Soft rock formations, including shale and clay, allow for more aggressive PDC drill bit designs. Key considerations for soft rock PDC bits include:
- Lower cutter density: Fewer, larger cutters can achieve faster penetration rates without compromising stability.
- Shallower back rake angle: Typically 10-20 degrees, allowing for more aggressive cutting action.
- Extended blade length: Longer blades increase the bit's ability to remove large volumes of soft rock efficiently.
Key Features of PDC Bits for Different Formations
Understanding the specific features of PDC bits designed for various rock types is essential for optimizing drilling performance. Let's examine the key characteristics of PDC bits tailored for hard, medium, and soft rock formations.
PDC Bits for Hard Rock
PDC drill bits designed for hard rock formations incorporate several specialized features:
- Premium cutter technology: Advanced cutter materials and manufacturing processes enhance wear resistance and impact strength.
- Shaped cutting elements: Non-planar cutting surfaces can improve cutting efficiency and reduce heat generation.
- Reinforced blade structure: Thicker, more robust blades provide increased stability and resistance to vibration.
- Specialized hydraulics: Optimized nozzle placement and sizing ensure efficient cuttings removal and cutter cooling in challenging conditions.
PDC Bits for Medium Rock
Medium rock formations require PDC bits with versatile features to handle varying lithology:
- Balanced cutter layout: Strategic placement of cutters optimizes force distribution and bit stability.
- Varied cutter sizes: Combining different cutter sizes can enhance drilling efficiency across interbedded formations.
- Active gauge design: Incorporating cutting elements on the gauge helps maintain borehole quality and reduce torque.
- Optimized hydraulics: Balanced fluid flow across the bit face ensures consistent cutter cleaning and cooling.
PDC Bits for Soft Rock
Soft rock PDC bits are designed to maximize rate of penetration (ROP) while maintaining directional control:
- Large, aggressive cutters: Bigger cutting elements allow for deeper penetration and faster drilling rates.
- Open blade design: Wider junk slots facilitate the evacuation of large volumes of cuttings.
- Limited number of blades: Fewer blades reduce the contact area with the formation, enhancing penetration rates.
- Enhanced stabilization features: Specially designed elements help maintain directional control in soft, plastic formations.
Optimizing Drilling Efficiency: Matching Bit to Rock Type
Achieving optimal drilling efficiency requires more than just selecting the right PDC drill bit for a given rock type. It involves a holistic approach that considers various factors and employs advanced technologies to maximize performance.
Advanced Bit Selection Techniques
Modern drilling operations utilize sophisticated methods for bit selection:
- Rock strength analysis: Utilizing well logs and seismic data to create detailed rock strength profiles for precise bit selection.
- Drilling simulator software: Computer modeling to predict bit performance in specific formations before actual drilling.
- Historical performance analysis: Leveraging data from previous wells in similar formations to inform bit selection decisions.
Real-Time Drilling Optimization
Continuous monitoring and adjustment of drilling parameters can significantly enhance efficiency:
- Measurement While Drilling (MWD) tools: Provide real-time data on formation characteristics and drilling dynamics.
- Weight on Bit (WOB) optimization: Adjusting WOB based on formation changes to maintain optimal cutting efficiency.
- Rotary speed control: Fine-tuning RPM to balance ROP with bit wear and vibration management.
Hybrid and Specialized Bit Designs
Innovative bit designs can address complex drilling challenges:
- Hybrid bits: Combining PDC and roller cone elements to tackle mixed formations effectively.
- Depth of cut control technology: Incorporating features that limit cutter penetration in hard streaks while allowing aggressive cutting in softer zones.
- Formation-specific cutter arrangements: Customized cutter layouts designed for particular geological sequences.
Maintenance and Wear Analysis
Regular assessment of bit condition is crucial for optimizing performance:
- Post-run bit grading: Thorough examination of used bits to inform future selections and identify areas for improvement.
- Cutter wear prediction models: Utilizing advanced algorithms to forecast cutter wear rates and optimize bit runs.
- Dull bit analysis: Detailed study of worn bits to refine design features and improve performance in subsequent runs.
Conclusion
A thorough familiarity with bit technology as well as geological features is necessary for the difficult task of choosing the appropriate PDC bit for hard, medium, or soft rock formations. Drilling operators may save costs and increase efficiency by taking rock hardness, bit characteristics, and other optimisation considerations into account. If you want to be ahead of the competition in the oil and gas business, you need to keep up with the newest innovations in PDC drill bit design and selection procedures. This is especially important since drilling technology are always changing.
