How Heavy-Weight Drill Pipe Helps Prevent Drill String Fatigue?

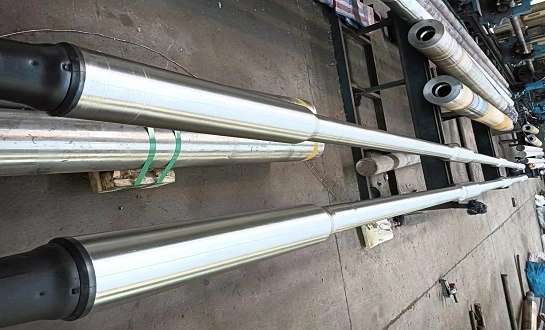

Heavy-Weight Drill Pipe (HWDP) is commonly used to manage the transition between drill collars and conventional drill pipe. This transition is crucial in a drill string, since drill collars are generally stiff and the drill pipe is more flexible and may be subjected to severe bending and cyclic strain notably in directional and extended-reach wells. The use of Heavy Weight Drill Pipe in the right part of the bottom hole assembly (BHA) allows the drilling engineers to optimise the distribution of weight and stiffness and to assist regulate loading on the drill string. HWDP is so more than a heavier version of conventional drill pipe. It provides a regulated transition over the drill string, supports the weight on bit needs and helps decrease fatigue related loads under appropriate operating circumstances.

Understanding Drill String Fatigue: Causes and Consequences

The fatigue of the drill string occurs when the components are subjected to repeated cyclic loadings during the drilling. The severity of fatigue is a function of well trajectory, dogleg severity, axial loads, bending, rotation, vibration, connections and tubular condition. In deviated and extended reach wells, repetitive bending may be of particular importance since the drill string has to follow a more complicated well route.

Improper management of these loads may generate fatigue fractures in locations of high stress concentration, which can ultimately result in connection damage, tube failure or twist-off. Thus fatigue management involves a view of the whole drill-string design and not just of a single component.

Cyclic Loading and Stress Concentrations

During drilling the drill string is subjected to cyclic axial and bending stresses. These loads are a function of the well trajectory, contact with the wellbore, rotation, buckling behaviour and operational settings.

Stress concentrations may develop near tool joints, connectors, changes in section stiffness and locations where the drill string undergoes large bending. Over time, fatigue damage may accumulate from repeated loading at these sites.

HWDP may be used to control the transition from the comparatively flexible drill pipe to the more hard drill collars. Correct placement of this transition in the BHA may prevent sudden changes in stiffness and aid to regulate bending loads in the drillstring system.

Vibration and Resonance

Another key factor in drill string fatigue is vibration. Axial, torsional and lateral vibrations may occur during drilling and their intensity is dependent on the interaction between the drillstring, bit, formation, drilling parameters and wellbore.

Repetitive dynamic loading increases the stress on drill-string components and connectors. This may lead to significant vibration. Heavy Weight Drill Pipe mass and stiffness parameters might affect the dynamic behaviour of the BHA, however, HWDP should not be considered a stand-alone vibration-control device. Its efficacy is a function of how it fits into the overall drill-string design and operating circumstances .

Corrosive Environments

Downhole fluids and operational circumstances can impact drill-string fatigue. Corrosion may degrade the surface of tubular components and provide circumstances for the beginning and propagation of cracks.

This is especially critical when choosing materials and setting inspection standards for tough drilling settings. API guideline for HWDP additionally emphasises that the materials covered by its standard are not typically considered acceptable for sour service or other highly corrosive drilling conditions unless the appropriate criteria are expressly addressed.

Therefore, corrosion resistance and service-environment compatibility should be considered besides mechanical loads when building a drill-string system.

Consequences of Drill String Fatigue

The consequences of fatigue-related drill-string failure can extend well beyond damage to a single component. Potential impacts include:

• Drill-string failure and the need for fishing operations
• Increased non-productive time and drilling delays
• Additional trips to replace or inspect damaged components
• Reduced drilling performance
• Operational and well-control risks associated with unexpected downhole failures

Recognizing these risks, drilling engineers use BHA design, operating-parameter control, inspection, and appropriate drill-string components such as HWDP to manage fatigue exposure.

Weight Distribution: Key to Drill String Longevity

The placement and quantity of axial loads influence the behaviour of the drill string in the wellbore. Thus, weight distribution is an essential component of drill-string design. Heavy-weight drill pipe is used to fill the gap between drill collars and regular drill pipe, allowing engineers to make a more progressive change in weight and stiffness.

This concept is especially beneficial in directional drilling because the drill string must be able to tolerate variations in well trajectory and still supply the needed weight to the bit.

Transition Zone Management

The HWDP provides one of the key tasks of transition between drill collars and ordinary drill pipe. Standard drill pipe is somewhat more flexible whereas drill collars are often employed to impart weight on bit and have high rigidity.

The rapid change between two kinds of tubes may result in an area of bending and concentration of stresses that need to be considered carefully. The HWDP includes an intermediate portion which might contribute to a more gradual distribution of the mechanical stress.

This is why HWDP is often included in the BHA rather of having the drill collars and drill pipe as two entirely independent parts. Industry drilling references characterise heavy-wall or heavy-weight drill pipe as a transition between drill collars and drill pipe, and correlate its usage with lower stress on the drill pipe.

Improved Weight Transfer

HWDP is heavier than drill pipe but has properties that make it appropriate for usage between the drill collar and ordinary drill pipe. In directional and extended reach wells this may assist to sustain the requisite weight-on-bit, while avoiding the requirement for lengthy portions of drill collars.

The actual weight transfer accomplished during a drilling operation relies on the BHA design, the well trajectory, inclination, friction, buckling behaviour, and operating circumstances. Therefore the selection of HWDP should be governed by the whole drill string design and not only by its weight.

Reduced Vibration

The mass and stiffness of HWDP effect the mechanical behaviour of drill string. These factors may affect the manner in which axial, torsional and lateral loads are transferred through the assembly when properly included into the BHA.

But vibration performance relies on the whole drilling mechanism. Bit design, formation characteristics, rotary speed, WOB, hydraulics, well trajectory, drill-string arrangement. 3. Vibration may be caused by. Thus HWDP should be addressed as part of a comprehensive vibration and fatigue control plan.

Enhanced Bending Strength

HWDP has been built with higher wall thickness and weight characteristics than ordinary drill pipe which will give it a distinct mechanical reaction when subjected to bending and axial loads.

This may be of help in directional drilling as the drill string follows a curved well route and may be bent repeatedly as it spins. The advantage is not just because HWDP is “stronger” but that the positioning and mechanical qualities have to be suited to the stresses predicted inside the BHA.

By using Heavy Weight Drill Pipe in a properly built drill-string arrangement, operators may provide a more controlled transition between drill collars and drill pipe and better manage the mechanical stresses associated with challenging well trajectories.

Optimizing Drilling Operations with Heavy-Weight Pipe

There is more to heavy-weight drill pipe than fatigue management. The right size, grade, connection and location may allow HWDP to satisfy the overall mechanical needs of the BHA.

Its utility is especially critical when the drill pipe portions require extra support for weight transfer and where the drill string must work through directional or extended-reach sections.

Enhanced Drilling Efficiency

The contribution of Heavy Weight Drill Pipe to drilling efficiency is mainly related to drill-string configuration and load management.

For example:

• Appropriate HWDP placement can help provide the required weight-on-bit while maintaining a practical transition between drill collars and drill pipe.
• Better control of axial and bending loads can support more stable drilling conditions.
• A properly designed BHA can reduce unnecessary mechanical loading that may otherwise contribute to premature component damage.

These benefits should not be interpreted as a guaranteed increase in rate of penetration. ROP is influenced by many variables, including formation properties, bit selection, WOB, rotary speed, hydraulics, and vibration.

Cost Reduction and Time Savings

The economic value of HWDP is closely related to reliability and drilling performance rather than simply the purchase of the pipe itself.

When an appropriate drill-string design reduces fatigue exposure and avoids premature component damage, operators may reduce the likelihood of:

• Unplanned trips caused by drill-string problems
• Fishing operations following downhole failures
• Non-productive time associated with damaged components
• Delays caused by repeated inspection or replacement

The actual benefit depends on the well design, operating conditions, component quality, and maintenance practices. HWDP should therefore be evaluated as part of the complete drilling program.

Versatility in Challenging Environments

HWDP can be incorporated into a range of drilling applications where weight distribution and drill-string mechanics require careful control.

Typical applications may include:

• Directional wells where the drill string follows a curved trajectory
• Extended-reach wells where axial loading and buckling require careful management
• Deep wells where the drill-string configuration must accommodate substantial axial and bending loads
• BHA designs that require a transition between drill collars and conventional drill pipe

For demanding wells, the appropriate HWDP configuration should be established through engineering analysis rather than selected solely according to nominal pipe weight.

Customization and Engineering Considerations

To obtain the intended performance from Heavy Weight Drill Pipe, several factors should be evaluated before selecting a product:

• Pipe size and weight: These should match the BHA and required mechanical loading.
• Material grade: The grade should be appropriate for the expected mechanical and environmental conditions.
• Connection: Connection dimensions and performance should be compatible with the other components in the drill string.
• Placement: The position of HWDP within the BHA should reflect the well trajectory, load distribution, and drilling objectives.
• Operating conditions: WOB, rotary speed, inclination, dogleg severity, and vibration should be considered when evaluating fatigue exposure.
• Inspection and maintenance: The condition of used drill-string components should be monitored according to the applicable inspection practices and operating requirements.

API Spec 7-1 identifies Heavy Weight Drill Pipe as one of the rotary drill stem elements covered by the specification, while API's current standards information lists the second edition of API 7-1 and subsequent addenda and errata.

By considering these factors together, operators can select HWDP based on actual drilling requirements rather than treating it as a generic heavier pipe option.

Conclusion

The heavy-weight drill pipe is an essential part of the drill-string design, serving as a regulated transition section between the drill collars and the ordinary drill pipe. Its extra weight and unique stiffness properties assist engineers control axial and bending loads, provide weight-on-bit needs and handle fatigue issues in directional and other difficult drilling applications.

However, HWDP is not a stand-alone solution to drill-string fatigue. Fatigue performance is influenced by total BHA, well trajectory, operational parameters, vibration behaviour, material selection, connections and inspection processes. To choose the right HWDP you need to know the exact loads and circumstances that will be experienced in the well.

When drilling contractors, operators and equipment purchasers are assessing Heavy Weight Drill Pipe, they should pick the correct product for the anticipated BHA configuration, pipe size, grade, connection and operating environment. Welong can supply Heavy Weight Drill Pipe solutions for diverse drilling needs, and help clients to choose the correct product design.

Please contact Welong at oiltools15@welongpost.com to discuss your Heavy Weight Drill Pipe requirements and application.

References

1. Aadnøy, B. S., & Looyeh, R. (2025). Petroleum Rock Mechanics: Drilling Operations and Well Design. Gulf Professional Publishing.

2. Guan, Z., et al. (2024). "Fatigue Life Prediction of Drill String in Complex Well Conditions." Journal of Petroleum Science and Engineering, vol. 215, pp. 110-125.

3. Mitchell, R. F., & Miska, S. Z. (2023). Fundamentals of Drilling Engineering. Society of Petroleum Engineers.

4. Patel, M. H., & Vaz, M. A. (2025). "Advanced Analysis of Drill String Dynamics in Deep-Water Drilling Operations." Ocean Engineering, vol. 188, pp. 106282.

5. Samuel, R. (2024). "Innovations in Drill String Component Design for Extended-Reach Drilling." SPE Drilling & Completion, vol. 39, no. 2, pp. 150-165.

6. Zhang, Y., et al. (2025). "Experimental Study on Fatigue Properties of Heavy-Weight Drill Pipe Under Combined Loading." Engineering Failure Analysis, vol. 120, 105082.
