Essential Components: What to Check First?
Begin with those elements most immediately exposed to formation contact, drilling-fluid flow, and mechanical stress. The specific inspection spots vary according to the bit design, however there are several regions that need special attention.
Cone Inspection
The cones are the cutting structure and are immediately exposed to formation contact while drilling. Start by checking each cone for obvious damage, shattered parts, missing inserts or unusual wear.
Check condition of teeth and hardfacing where appropriate for milled teeth designs. Examine tungsten carbide insert designs for breakage, chipping, excessive wear or loss.
Check to see if the wear seems quite consistent on the three cones. If one cone is showing a significantly different wear pattern it’s likely an operational or mechanical problem and should be looked into further.
You can see apparent faults by looking, but you cannot tell how much longer every part inside will last. whether the bit displays heavy damage or atypical wear, refer to the manufacturer's inspection guidelines to determine whether it may be used for another run.
Bearing Seals Assessment
Bearing and sealing systems are designed to protect the internal components from the drilling environment. Routine inspections should include a visual check for any damage, abnormal leakage or other indication that the sealing system may not be operating as intended.
External indicators alone should not be utilized to detect a particular internal bearing problem. In case of leaking, abnormal wear or other abnormal situations, the bit should be checked using the proper servicing process.
Different bearing and sealing systems are used in various roller-cone bit designs. So don't assume that every part needs the same field lubrication or bearing-maintenance technique.
Nozzle and Jet Evaluation
Nozzles and jets control drilling-fluid flow at the bit and contribute to hydraulic cleaning of the cutting structure and bottomhole area.
Inspect each nozzle for:
- Blockage or accumulated debris.
- Visible erosion or damage.
- Incorrect installation.
- Signs that the nozzle has become loose or displaced.
A blocked or damaged nozzle can change the intended hydraulic performance of the bit. Nozzle condition should therefore be checked before the bit is run, and any replacement should follow the bit manufacturer's procedure.
Common Wear Patterns: Early Warning Signs
The early detection of abnormal wear in a Tricone Drill Bit may assist drilling teams in determining whether a bit should remain in operation, be replaced, or inspected further.
Wear should not be determined based on only one damaged insert or one worn location. The whole cutting mechanism, gauge, cones, shirttails, and other visible parts of the Tricone Drill Bit should be evaluated as a whole.
Gauge Wear Indicators
The gage section contacts the wellbore and might undergo severe wear during drilling. Check the gage inserts and other gage protection devices for excessive wear or uneven wear.
Also, the shirttail area should be examined since damage and/or excessive wear in this area affects protection surrounding the bearing and sealing system.
If the bit seems to have lost gage dramatically, its status should be checked before reuse. Excessive wear on the gage may damage the bit's ability to hold the desired hole size and may mean the bit has run its useful course.
Insert Damage and Loss
Where appropriate, check all three cones for cracked, chipped, loose or missing tungsten carbide inserts.
Pay special attention to gauge-row inserts and other places that experience high amounts of formation contact. Knowing the severity and distribution of insert damage is more instructive than counting the individual damaged inserts.
If there is significant insert loss, the bit should be tested and restored to service. Continuing to drill with major damage to the cutting structure can change the bit’s drilling behavior and increase the risk of additional damage.
Cone Shell Erosion
Cone-shell degradation may happen in abrasive drilling conditions. Check for abnormal loss of material on exposed cone surfaces, especially near the cutting structure.
The aim of the examination is not just to assess whether erosion is present, but also to determine if the problem has gotten severe enough to impact the structural or functional state of the cone.
The bit should be examined for severe erosion, cracking or other major damage before re-use. If the condition is approaching the limitations set forth in the manufacturer's inspection standards, do not depend on a general visual impression.
Maximizing Bit Life: Proper Handling Techniques
Bit life is dictated by the drilling circumstances and the way the bit is treated before and after a run. Proper cleaning, inspection, storage and transit will assist to prevent unnecessary damage to the cutting structure and other exposed components.
Clean and Store Correctly
Clean the Tricone Drill Bit after use using a method suitable for the bit and its components. Removing drilling mud and debris makes it easier to inspect the cutting structure, gauge, nozzles, and other external areas.
After cleaning:
- Keep the bit in a clean and dry storage area.
- Protect exposed threads and other vulnerable surfaces.
- Avoid placing the cutting structure directly on hard surfaces.
- Use an appropriate stand, rack, or support system where available.
- Protect the bit from unnecessary impact during handling.
Storage requirements may vary according to the bit design and expected storage period, so the manufacturer's recommendations should take precedence.
Regular Lubrication
Not all Tricone Drill Bits are lubricated in the field in the same manner.
Sealed bearing and other roller-cone types might have varied bearing and lubrication systems. Check the process for the individual bit before adding grease or lubricating any component.
When field lubrication is permissible, use the lubricant and application technique recommended. Avoid using too much force or an inappropriate product, especially near sealing parts.
The intent is to use a maintenance process for the bit as designed, not a general lubrication program.
Transport with Care

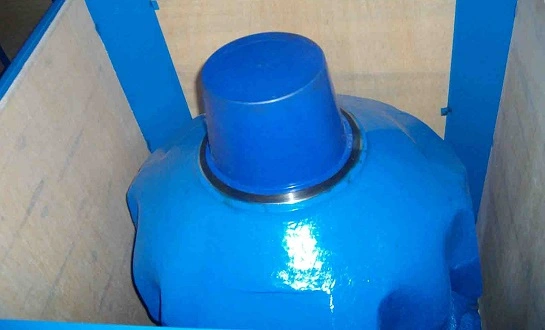

Transportation can damage cutting structures, threads, nozzles, and other exposed components if the bit is not properly supported.
Before moving a bit:
- Secure it against movement.
- Protect the cutting structure from direct impact.
- Prevent other equipment from contacting the cones or inserts.
- Use suitable packaging or supports for longer-distance transportation.
- Inspect the bit after transportation if it has been exposed to impact or improper handling.
A bit that has been damaged during transportation should be inspected before it is installed in the drilling assembly.
Conclusion
A daily examination of a Tricone Drill Bit should be practical, consistent and aimed at the identification of observable issues that might impact the following run. Inspect cones, cutting structure, gage, shirttails, nozzles and visible bearing-seal surfaces for abnormal wear or damage.
Inspection results should also be noted. Drilling crews may compare bit conditions between runs to spot recurrent wear patterns and know when a bit needs deeper inspection.
At the same time, normal visual assessment has obvious limits. Not apparent problems such as internal bearing condition, remaining component life or other factors may need expert examination or treatment. Follow the necessary manufacturer documentation and the certified service procedures for these situations.
