Drill Pipe vs Casing Pipe: Key Differences for Buyers

Drill pipe and casing pipe are both tubular goods used in oil and gas wells, although they do quite distinct roles. Drill pipe is part of the drilling string, transmitting torque and drilling fluid from surface equipment to the bottomhole assembly. Casing , however , is put in the wellbore to give structural support , segregate formations and ensure well integrity .

The difference is essential to purchasers, since the items are defined for various operating situations. The choice of drill pipe is driven primarily by the mechanical stresses experienced during drilling operations, such as torque, tension, bending, fatigue, connection performance and fluid circulation. The selection of casing is more directed to the loads and circumstances that will be imposed on the casing after it has been placed, such as burst, collapse, axial loading, pressure, temperature and forming conditions.

Understanding the distinctions allows procurement teams to accurately specify product specifications, and not consider drill pipe and casing as interchangeable tubulars.

​​​​​​​​​​​​​​​​​​​​​

Function and Design: Drilling vs. Well Support

The drill pipe is mainly used to transmit the rotation and torque from the drilling system to the bottom hole assembly and provide a channel for the drilling fluid. The fluid flows through the internal bore toward the bit, then back via the annulus, to remove drilled cuttings from the wellbore.

Drill pipe is a component of the rotating drilling system and its design must account for the effect of repetitive mechanical loads. Depending on the well design, the pipe may be subjected to combined axial tension, compression, torsion, bending and cyclic loads.

Casing is for something else. It is run in the well and usually stays there as part of the well construction. It creates a structural barrier, helps seal off formations and assists in preserving the long term integrity of the well.

Drill Pipe Characteristics

Drill pipe typically includes:

• A tubular pipe body used for drilling fluid circulation
• Tool joints at both ends for connecting adjacent joints
• A threaded connection designed for repeated make-up and break-out
• Steel grades selected according to the required mechanical properties
• Dimensions and connection configurations matched to the drilling system

Drill pipe is handled and used as a part of the drilling string . Unlike casing , it is not normally left permanently in the completed well .

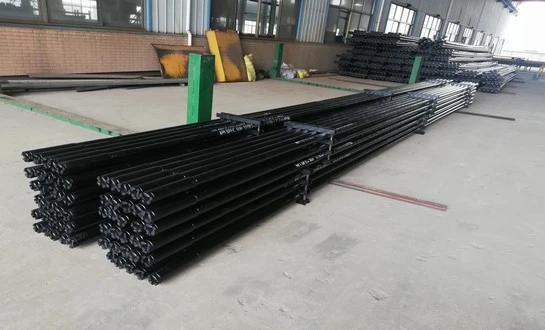

Welong provides drill pipe in diameters from 2 3/8" to 6 5/8" and cites available grades as E75, X95, G105 and S135. Product details include API SPEC 5DP, TK34/TK34P coating and Arnco 100XT/300XT hardbanding choices. Availability should be checked against the needed product specification.

Casing Pipe Design

In contrast, casing is designed to remain in the well and provide structural and pressure containment functions. Its main roles include:

• Supporting the wellbore
• Helping prevent formation collapse
• Separating and isolating different formations
• Providing a barrier between the wellbore and surrounding formations
• Providing the well structure into which completion and production equipment can be installed

As part of the well building schedule, casing is often run in portions. The selection of casing size, wall thickness, grade and connection is determined by the well design and the stresses predicted at each setting depth.

So the main difference is not just pipe size. The drill pipe is a component portion of the drilling string and casing is part of the built well.

Material Composition: Strength and Durability Compared

Both the casing and the drill pipe are normally made of steel, although the material and dimensional specifications are governed by the varied duties that they perform.

Drill pipe must endure repeated mechanical loadings while drilling. After being put in the well, the casing must retain its structural and pressure integrity.

Drill Pipe Materials

Drill pipe is commonly manufactured using steel grades such as E75, X95, G105, and S135.

These grades are associated with specified minimum yield strength levels. For example, S135 drill pipe has a specified minimum yield strength of 135,000 psi. This value describes a mechanical property of the grade; it does not by itself determine whether the pipe is suitable for a particular well.

When selecting drill pipe, buyers should consider the complete specification, including:

• Pipe size and wall thickness
• Grade
• Tool joint and connection requirements
• Expected tensile and torsional loads
• Drilling conditions
• Surface protection requirements
• Applicable manufacturing and inspection specifications

For example, choosing a higher-strength grade does not eliminate the need to verify connection compatibility or other design requirements.

Casing Pipe Materials

Casing is also available in different steel grades and specifications, with material selection depending on the well design and expected service conditions.

Important factors can include:

• Required yield strength
• Wall thickness
• Burst resistance
• Collapse resistance
• Axial load requirements
• Temperature and pressure
• Formation and fluid conditions
• Corrosion considerations

Special material systems may be explored for demanding corrosive or high-temperature applications, but material selection should be based on the actual well conditions and the corresponding casing specification rather than presuming that one material is adequate for every severe environment.

The crucial distinction lies in the load profile. Casing is built for the mechanical and pressure conditions that are anticipated after they are placed and fastened in the well. Drill pipe is subjected to repeated stresses while the drilling string is being operated.

Choosing the Right Pipe for Your Project

As for purchasers, the decision between drill pipe and casing should begin with the function that is needed in the well. These goods are not replacements.

The suitable tubular is drill pipe if the need is to transfer torque and circulate drilling fluid between the surface and the BHA. If the need is to support the wellbore and offer zonal isolation as part of well construction then casing is the applicable product.

Factors to Consider for Drill Pipe Selection

When choosing drill pipe, consider:

• Well depth and trajectory
• Required pipe size and wall thickness
• Expected tensile and torsional loads
• Drilling fluid characteristics
• Formation and operating conditions
• Required grade
• Tool joint connection
• Coating and hardbanding requirements
• Applicable technical and inspection requirements

The drill pipe should be chosen according to the whole drilling program and not only based on a grade of strength. The pipe must be compatible with the remainder of the drill string and the connectors utilized by the drilling process.

API Spec 5DP is a significant reference for the relevant specifications of steel drill pipe. Buyers should validate the needed edition, product specification level, grade, dimensions, connectors and inspection requirements on a purchase specification.

Welong drill pipe product line comprises 2 3/8"–6 5/8" diameters, E75/X95/G105/S135 grades, and options like TK34/TK34P coating and Arnco 100XT/300XT hardbanding. These publicized alternatives might assist purchasers narrow down their query as soon as the appropriate configuration is confirmed.

Considerations for Casing Pipe Selection

For casing pipe, key considerations include:

• Well construction program
• Setting depth
• Casing size and wall thickness
• Formation pressure
• Expected burst and collapse loads
• Axial loading
• Temperature conditions
• Formation and fluid characteristics
• Connection requirements
• Long-term well integrity requirements

The casing to be selected will be based on the predicted circumstances throughout the planned life of the well. A proper casing design must give the appropriate structural and pressure performance at its proposed setting depth, and under the operating circumstances of interest.

This is also why a comparison of casing and drill pipe on the basis of outer diameter or steel grade is not enough. Their requirements are based on distinct functions in the well.

Quality Control and Certification

Whether purchasing drill pipe or casing, buyers should verify that the supplied product matches the agreed technical specification.

For drill pipe procurement, useful points to confirm include:

• Product size and grade
• Pipe body dimensions
• Tool joint specifications
• Connection type
• Coating or hardbanding requirements
• Applicable standard
• Inspection and testing requirements
• Required documentation

For casing, the documentation and verification requirements should likewise match the applicable casing specification and purchase requirements.

This is doubly true when the order requires numerous sizes, grades, connectors or surface-treatment choices, where the supplier’s production and quality-control competence is critical. Buyers should not accept vague statements of quality; they should ask for the technical documentation that applies to their purchase.

Conclusion

The distinction between drill pipe and casing pipe is basically a difference in function and service circumstances. Drill pipe is a component of the drill string, transmits torque, circulates drilling fluid, and undergoes repetitive mechanical loading. Casing is constructed during well construction to provide structural support, to isolate formations, and to maintain long-term well integrity.

The buyer should, therefore, concentrate the selection process on the specific purpose of the tube, the anticipated loads, dimensions, grade, connections, operating circumstances and technical criteria that are relevant.

Welong offers a range of drill pipe diameters and grades, including published choices like API SPEC 5DP, TK34/TK34P coating, and Arnco 100XT/300XT hardbanding. Buyers may contact Welong and offer needed pipe size, grade, connection, coating or hardbanding requirements and drilling application so that the product design can be discussed more clearly.

For product inquiries, contact oiltools15@welongpost.com.
