What Is a Drill Pipe and How Is It Used in Oil Drilling?

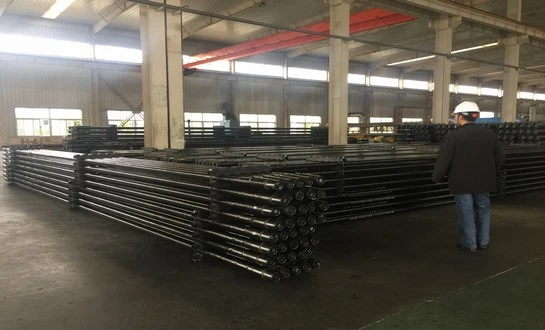

Drill pipe is a steel tube that is used as part of the drilling string in oil and gas wells; It is connected to the bottomhole assembly (BHA) and surface drilling equipment and provides a flow route for the drilling fluid and transmits rotation and torque to the downhole tools.

During drilling, the pipe is subjected to repetitive mechanical stresses such as tension, torsion, bending and cyclic loading. Its specification is consequently dependent on a number of parameters such as pipe size, grade, connection, drilling circumstances and the needs of the drilling program. API Spec 5DP covers the technical delivery criteria for relevant steel drill pipe including E and higher strength X, G and S grades.

Drilling fluid also flows via the drill pipe’s internal bore to the bit. The fluid flowing cools and cleans the well and transports the drilled cuttings back to the surface via the annulus. Thus, the drill pipe must provide mechanical performance and a dependable internal flow channel.

​​​​​​​​​​​​​​

Drill Pipe Anatomy: Key Components Explained

Knowing the key sections of a drill pipe helps customers and drilling workers understand the role of the product as a whole assembly. The main portions are the tool joints, disturbed sections and the pipe body.

Tool Joint

The tool joint is the thickened part of the drill pipe at either end, which provides the threaded connection between neighboring joints. It has a greater outer diameter than the pipe body and is intended to resist the mechanical stresses involved in setting up the drill string and delivering torque.

The connection must also be capable of maintaining the appropriate fluid tight performance when properly built up during drilling. Thread geometry, shoulder design, machining precision and connection state all affect the connection performance.

Therefore, size and thread control are critical in the manufacture of tool joints. Welong says its drill pipe tool joints are friction welded and finely machined to promote connection integrity, torque capacity and make-up performance.

Pipe Body

The pipe body is the long tubular section between the tool joints. It provides the main flow passage for drilling fluid and carries mechanical loads as part of the drilling string.

Drill pipe bodies are commonly manufactured from alloy steel and processed to achieve the mechanical properties required by the specified grade. The pipe body must maintain appropriate dimensional consistency while withstanding the loads generated during drilling.

Important pipe-body parameters include:

• Outside diameter
• Wall thickness
• Nominal weight
• Grade
• Length
• Straightness
• Concentricity

These parameters need to be considered together. A pipe should not be selected by outside diameter alone because wall thickness, grade, connection, and drilling loads all affect its suitability.

Welong's published drill pipe range covers sizes from 2 3/8" to 6 5/8", with E75, X95, G105, and S135 grades. The published product table also specifies different nominal weights, wall thicknesses, connections, and a 31.5 ft joint length for the listed configurations.

Upset

The upset is the thickened region of transition at the end of the pipe body where the tool joint attaches to the pipe. Adding more material in this place helps to offer the needed mechanical strength in a location that is undergoing high stress.

Drill pipe requirements may include several upset configurations, internal upset (IU) and external upset (EU). The configuration to be applied is dependant on the design of pipe and specification.

The upset is on the transition between the pipe body and tool joint and its size and machining quality are critical to the overall connection and load-transfer performance of the drill pipe. The API description for drill pipe data includes upset kinds such as IU and EU for the appropriate drill pipe configurations.

Drill Pipe vs. Casing: Understanding the Differences

Drill pipes and casings are both tubular goods used in oil and gas wells , although they have distinct roles and are built for various phases of well development .

Function

The drill string consists of drill pipes. They transmit torque and rotation between the surface equipment and the BHA and serve as a conduit for drilling fluid.

Casing is run into the well to give structural support and formation isolation. It is left in the well as part of the well construction and is not run in and taken out periodically during typical drilling operations.

Installation Timing

As the well is drilled, drill pipes are added to the drilling string and are withdrawn when the drilling assembly is tripped out.

Once a predetermined segment of the well is drilled, casing is usually run. It is then installed in the well as part of the well building routine.

This variation in usage explains the various design goals of the two devices. Drill pipe must endure frequent handling and mechanical loads during drilling, and casing must offer the structural and pressure capabilities for its projected service life.

Material and Design

Drill pipe is manufactured to the mechanical requirements of the drilling string. The choice of grade, pipe size, tool joint connection and surface protection may all be factors in determining compatibility for a specific drilling application.

The casing is intended to satisfy the well’s structural and pressure requirements. Its size, wall thickness, grade, connection and other parameters are determined according to criteria such as setting depth, formation circumstances, pressure and predicted loads.

Thus, casing should not be referred to as “thicker drill pipe” just. The two items are designed for various purposes and should be specified according to their applications.

Innovations in Drill Pipe Technology: Future of Drilling

Progress in drill pipe technology is directly tied to material control, manufacturing precision, connection performance, wear protection and the demands of more aggressive drilling programs.

Smart Drill Pipes

Research and specialized drilling systems are researching the incorporation of sensing and data transmission capabilities into the components used in drilling. Such technologies may provide extra information on downhole conditions and drilling performance.

But these technologies should not be seen as typical characteristics of every drill pipe. Buyers should check the actual configuration and capabilities supplied for a certain product, rather than assume every drill pipe has sensors or real-time data transmission.

Advanced Materials

Material research is still focused on the compromise between strength, fatigue resistance, toughness, weight and service requirements.

For standard steel drill pipe, careful material selection and heat treatment are still used. API Spec 5DP covers appropriate steel drill pipe with E, X, G and S grades. But the chosen grade must meet mechanical criteria of the drilling program.

For customers, it implies that “higher strength” should not be the main criterion for a superior drill pipe. The grade, connection, dimensions, operating loads and service conditions must be considered together.

Enhanced Connection Designs

The performance of connections is a key area of research for drill pipes. The tool joint has to transmit mechanical stresses and at the same time preserve the necessary connection integrity during drilling.

Thus, manufacturing precision is highly related to connection performance. Welong says their tool joints are friction welded and precisely machined, with manufacturing controls on wall thickness, straightness, upset dimensions and thread quality.

In addition to surface protection, the requirements may also be customized to the application. Welong provides internal coating choices for TK34 and TK34P and hardbanding options for Arnco 100XT and Arnco 300XT for their drill pipe line.

Conclusion

A drill pipe is not only a hollow steel tube. A load-carrying, liquid-carrying component of the drill string which connects the surface equipment to the bottomhole assembly and transmits torque and drilling fluid.

Its performance is a function of various interacting elements such as pipe-body material, grade, dimensions, upset configuration, tool joint connection, manufacturing tolerances, and surface protection. These criteria should be chosen based on the drilling program and not size or grade per se.

It is very vital for purchasers to verify the whole product specification. Prior to procurement, check the needed pipe size, grade, connection, joint length, coating, hardbanding and relevant standard.

Call to Action

Welong offers drill pipe in diameters ranging from 2 3/8" to 6 5/8", with published grades such as E75, X95, G105 and S135. Product choices include TK34 /TK34P coating and Arnco 100XT/300XT hardbanding. Welong says their drill pipe is fabricated from alloy steel, heat-treated under regulated conditions, and tool joints are friction welded and precisely machined.

Welong also said that their quality-control procedure includes inspection of raw materials, verification of mechanical properties, friction welding, heat treatment, dimensional inspection and product traceability. manufacture information presented states over 25 years of expertise in oilfield equipment manufacture and an ISO 9001:2015 certified quality management system.

When soliciting quotes for drill pipe or technical advice, purchasers should supply the size, grade, connection, joint length, coating or hardbanding requirements and intended drilling application. This information helps you examine the needed settings in a more precise way.
