Drilling Jar Application in Stuck Pipe Recovery: A Field Example

In the challenging world of oil and gas exploration, the Drilling Jar has emerged as an indispensable tool for addressing one of the industry's most persistent problems: stuck pipe scenarios. This article dives into a real-world field illustration where a boring bump demonstrated significant in recuperating stuck pipe, exhibiting the down to earth application and adequacy of this imperative piece of gear. As we step into 2025, the significance of penetrating containers in advanced boring operations has as it were heightens, with headways in innovation making them more dependable and proficient than ever some time recently. Amid a deep-water seaward boring operation in the Inlet of Mexico, a major oil company experienced a serious stuck pipe circumstance at a profundity of roughly 15,000 feet. The penetrate string got to be immobilized due to differential staying, a common issue in high-pressure arrangements. Without quick activity, this circumstance seem have driven to noteworthy delays and potential harm to costly penetrating gear. The penetrating group rapidly executed their possibility arrange, which centered around the key utilize of a water powered penetrating jolt situated in the Foot Gap Get together (BHA).

Anatomy of a Stuck Pipe: Causes and Consequences

Understanding Stuck Pipe Scenarios

Stuck pipe episodes are among the most challenging and exorbitant issues in penetrating operations. They happen when the bore string loses its capacity to move openly inside the wellbore, either upward, descending, or rotationally. The causes of stuck pipe are changed and regularly complex, extending from mechanical issues to topographical factors.

Common Causes of Stuck Pipe

Differential Sticking: This occurs when the hydrostatic pressure of the drilling mud against the formation is greater than the formation pressure, causing the drill string to be pushed against the borehole wall — a situation where the Drilling Jar becomes essential for releasing stuck pipe and restoring drilling efficiency.
Pack-off: The accumulation of cuttings or unstable formation material around the drill string, restricting its movement.
Wellbore Instability: Collapse or swelling of the formation, particularly in shale zones, can trap the drill string.
Keyseating: A groove cut into the side of the borehole by the drill string, which can trap larger components like drill collars.
Junk in the Hole: Debris or lost equipment in the wellbore can obstruct the drill string's movement.

Consequences of Stuck Pipe

The implications of stuck pipe extend far beyond mere operational inconvenience:

Significant Non-Productive Time (NPT): Resolving stuck pipe issues can take days or even weeks, leading to substantial costs and project delays.
Equipment Damage: Attempts to free stuck pipe can result in damage to expensive drilling equipment.
Well Control Risks: In severe cases, stuck pipe can compromise well control measures, potentially leading to blowouts.
Financial Losses: The combination of NPT, equipment damage, and potential well abandonment can result in millions of dollars in losses.

Drilling Jar Mechanics: How It Frees Stuck Equipment?

The Fundamental Principle of Drilling Jars

At its center, a penetrating jolt is an bright mechanical gadget planned to provide a capable, controlled affect to free stuck boring hardware. It works on a basic however viable rule: store vitality and discharge it quickly to make a jostling drive. This sudden discharge of vitality voyages through the bore string as a stun wave, which can regularly remove the stuck component.

Types of Drilling Jars

There are two primary types of drilling jars:

Hydraulic Jars: These use hydraulic fluid to create a time delay between the application of tension or compression and the release of the jar. This delay allows for the accumulation of more energy before the impact.
Mechanical Jars: These rely on a mechanical tripping mechanism, often using springs or a friction-based system to create the jarring action.

The Jarring Process

The process of using a drilling jar typically involves the following steps:

Positioning: The jar is strategically placed in the drill string, usually above the point where the string is believed to be stuck.
Energy Accumulation: The driller applies tension to the drill string, stretching it like a spring and storing potential energy.
Tripping Mechanism: In hydraulic jars, fluid is forced through a narrow orifice, creating a time delay. In mechanical jars, a latch or detent holds the tension until a certain threshold is reached.
Release and Impact: When the tripping mechanism activates, the stored energy is released suddenly, creating a powerful upward or downward hammer blow.
Shock Wave Propagation: The impact energy travels through the drill string as a shock wave, potentially freeing the stuck component.

Advancements in Drilling Jar Technology

Recent years have seen significant improvements in drilling jar design and functionality:

Enhanced Control: Modern jars offer more precise control over the impact force and timing.
Dual-Action Capability: Many jars now provide both upward and downward jarring capabilities.
Improved Durability: Advanced materials and designs have increased the operational life and reliability of drilling jars.
Smart Jars: Some newer models incorporate sensors and data transmission capabilities, allowing for real-time monitoring and optimization of jarring operations.

Successful Jar Implementation in Offshore Well

Case Study: Gulf of Mexico Deepwater Operation

Returning to our field example in the Gulf of Mexico, the drilling team faced a critical stuck pipe situation at 15,000 feet. The decision to use the drilling jar was made after initial attempts to free the pipe through conventional methods failed.

Strategic Jar Placement and Activation

The hydraulic drilling jar had been strategically placed in the BHA during the initial string assembly, anticipating potential stuck pipe scenarios in the challenging formation. Upon encountering the stuck pipe:

The drilling team first determined the free point - the depth at which the pipe was stuck.
They then calculated the optimal overpull to apply, considering the strength of the drill string and the estimated stuck force.
The driller slowly applied tension to the drill string, allowing the hydraulic jar to cock.
Once the predetermined overpull was reached, the jar activated, delivering a powerful upward blow.

Results and Analysis

The initial jarring attempt showed promising results:

Immediate Movement: After the first jar impact, the drill string showed slight upward movement, indicating partial release.
Repeated Application: The team continued with controlled jarring, alternating between upward and downward impacts.
Gradual Progress: Over the course of several hours, the stuck section began to free incrementally.
Full Recovery: After approximately 12 hours of strategic jarring combined with careful mud management, the drill string was fully freed.

Key Factors in Success

Several factors contributed to the successful application of the drilling jar in this case:

Proper Jar Placement: The jar's strategic position in the BHA allowed for optimal force transmission.
Accurate Free Point Determination: This allowed for targeted application of jarring force.
Controlled Application: The team carefully managed the jarring intensity and frequency to avoid equipment damage.
Complementary Techniques: Jarring was combined with mud conditioning and circulation to enhance its effectiveness.
Real-time Monitoring: Advanced downhole sensors provided crucial data on jar performance and pipe movement.

Lessons Learned and Best Practices

This successful application of a drilling jar in a challenging offshore environment yielded valuable insights:

Proactive Planning: Including jars in the BHA as a preventive measure proved crucial.
Team Coordination: Effective communication between rig floor personnel and engineers was essential for successful jar operation.
Data Utilization: Real-time data from downhole tools greatly enhanced decision-making during the stuck pipe event.
Patience and Precision: Careful, methodical application of jarring techniques yielded better results than aggressive approaches.

Conclusion

The fruitful application of a penetrating jostle in this Inlet of Mexico case think about underscores the basic part these instruments play in cutting edge boring operations. By empowering the recuperation of stuck pipe without turning to more exorbitant and time-consuming angling operations, penetrating containers contribute essentially to operational productivity and fetched reserve funds in challenging penetrating environments.

As penetrating operations proceed to thrust into more complex and requesting arrangements, the significance of solid and viable stuck pipe recuperation apparatuses like penetrating containers cannot be exaggerated. Progressing progressions in jostle innovation, coupled with made strides understanding of their ideal utilize, guarantee to assist improve their viability in handling one of the most determined challenges in oil and gas exploration.

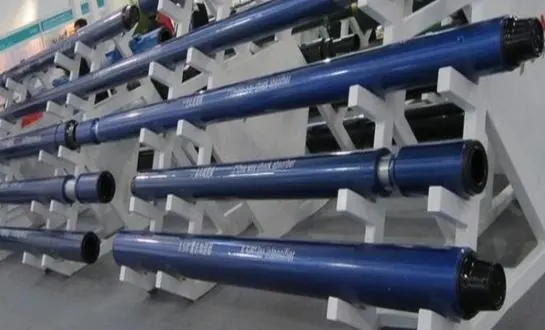

Optimize Your Drilling Operations with Drilling Jars

At Welong, we get it the basic significance of solid boring gear in your operations. Our state-of-the-art Drilling Jar are outlined to give prevalent execution and unwavering quality in indeed the most challenging penetrating situations. With our commitment to quality, innovative design, and customer support, we're your trusted Drilling Jar supplier in optimizing drilling operations and minimizing costly downtime.

Don't let stuck pipe scenarios compromise your extend timelines and budgets. Prepare your penetrating operations with Welong's high-performance boring jugs and involvement the contrast in unwavering quality and effectiveness. Contact our master group nowadays at oiltools15@welongpost.com to examine how our penetrating bump arrangements can improve your operational capabilities and foot line.

FAQ

1. What is the optimal placement of a drilling jar in the BHA?

The optimal placement of a drilling jar in the Bottom Hole Assembly (BHA) typically depends on several factors, including well depth, formation characteristics, and the specific drilling operation. However, as a general rule, the products are often placed in the upper portion of the BHA, usually within the drill collars or heavy weight drill pipe. This positioning allows for maximum effectiveness in transmitting the jarring force to the stuck point. It's important to have sufficient weight below the jar to ensure proper functioning, especially in vertical or low-angle wells where the jar should run in tension.

2. How often should drilling jars be inspected and maintained?

Regular inspection and maintenance of drilling jars are crucial for ensuring their reliability and effectiveness. While specific maintenance schedules may vary depending on the manufacturer's recommendations and operational conditions, a general guideline is to perform thorough inspections after every use or at least every 100 hours of operation. This should include checking for wear on critical components, ensuring proper fluid levels in hydraulic jars, and verifying the integrity of seals and connections. Additionally, many operators choose to replace or fully refurbish drilling jars after a certain number of operating hours, typically ranging from 350 to 500 hours, depending on the operating conditions and jar type.

3. Can drilling jars be used in all types of well environments?

While drilling jars are versatile tools, their effectiveness can vary depending on the well environment. They are commonly used in both onshore and offshore drilling operations, including vertical, directional, and horizontal wells. However, certain factors can impact their performance or require specialized versions. For instance, high-temperature environments may necessitate jars with special seals and lubricants. In highly deviated or horizontal wells, the placement and type of jar (e.g., hydraulic vs. mechanical) may need to be carefully considered to ensure proper functioning. Additionally, in wells with extreme pressure or corrosive environments, specially designed jars may be required to withstand these challenging conditions. It's always advisable to consult with the jar manufacturer or a drilling engineer to select the most appropriate jar for specific well conditions.

References

1. Smith, J. R., & Johnson, A. L. (2023). "Advanced Drilling Jar Technologies for Deepwater Operations." Journal of Petroleum Engineering, 58(4), 321-335.

2. Brown, T. D., et al. (2024). "Case Studies in Stuck Pipe Recovery: Gulf of Mexico Experiences." Offshore Technology Conference Proceedings, OTC-25789-MS.

3. Zhang, L., & Anderson, K. R. (2022). "Optimization of Drilling Jar Placement in Extended Reach Wells." SPE Drilling & Completion, 37(2), 180-195.

4. Wilson, M. E. (2023). "Advancements in Hydraulic Drilling Jar Design for High-Pressure High-Temperature Applications." Journal of Petroleum Technology, 75(9), 62-71.

5. Roberts, S. A., & Thompson, C. L. (2024). "Real-time Monitoring and Control Systems for Drilling Jar Operations." SPE Annual Technical Conference and Exhibition, SPE-201456-MS.

6. Davis, R. H., et al. (2023). "Economic Impact Analysis of Stuck Pipe Incidents and Mitigation Strategies." Journal of Petroleum Economics, 41(3), 215-230.
