If your drill strings get stuck, you can use a drilling jar, which is either mechanical or hydraulic, to quickly and severely free them. It uses controlled hits like a hammer to free the pipe when normal pulling methods don't work. On the other hand, a shock sub is a device that dampens vibrations. This makes the BHA and drill string less affected by drilling noises. It keeps expensive downhole equipment safe and speeds up digging by reducing noises and shocks.
Key Functions: Impact vs. Vibration Absorption

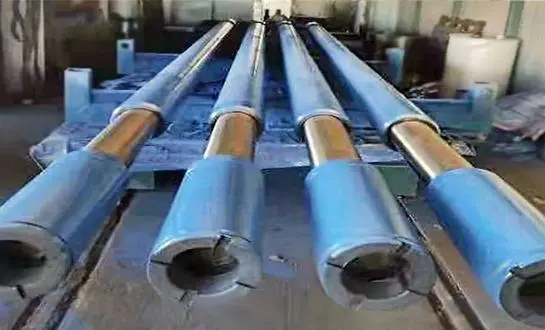

Drilling Jar: The Powerhouse of Impact
The primary function of a drilling jar is to generate a sudden, powerful impact force when activated. This impact is crucial for freeing stuck pipe, which can occur due to various reasons such as differential sticking, keyhole effects, or debris accumulation. When a pipe becomes stuck, the jar is activated by applying tension or compression to the drill string. After a predetermined delay, the jar "fires," releasing stored energy in the form of a sharp, axial blow.
There are two main types of drilling jars:
- Mechanical Jars: These rely on a spring-loaded mechanism to generate the impact force.
- Hydraulic Jars: These use hydraulic fluid to create a time delay before firing, allowing for more controlled and powerful impacts.
The effectiveness of a drilling jar depends on factors such as its placement in the BHA, the amount of overpull applied, and the nature of the stuck pipe situation. Proper use of the products can significantly reduce non-productive time and potentially save millions of dollars in lost equipment and production.
Shock Sub: The Vibration Dampener
Unlike the drilling jar, which is designed to deliver impacts, the shock sub's primary function is to absorb and dampen vibrations. During drilling operations, various types of vibrations can occur, including:
- Axial vibrations (bit bounce)
- Lateral vibrations (whirl)
- Torsional vibrations (stick-slip)
These vibrations can cause significant damage to drilling equipment, reduce rate of penetration (ROP), and lead to premature tool failures. The shock sub acts as a buffer, absorbing these harmful vibrations before they can propagate through the drill string. It typically consists of a spring-loaded or elastomer-based system that flexes and compresses to dissipate vibrational energy.
By mitigating vibrations, shock subs offer several benefits:
- Extended drill bit life
- Improved directional control
- Enhanced measurement-while-drilling (MWD) tool performance
- Reduced risk of fatigue failures in the drill string
When to Use: Stuck Pipe vs. Continuous Drilling
Drilling Jar: The Emergency Tool
The drilling jar is primarily a contingency tool, designed to be used in emergency situations when the drill string becomes stuck. It's not actively engaged during normal drilling operations but remains on standby, ready to be activated when needed. Common scenarios for using a drilling jar include:
- Differential sticking: When the drill string becomes stuck due to pressure differential between the wellbore and formation
- Mechanical sticking: When the drill string is trapped by cuttings, cave-ins, or other mechanical obstructions
- Key seating: When the drill string becomes lodged in a groove worn into the side of the wellbore
The decision to activate a drilling jar is typically made after conventional methods of freeing the pipe have failed. It requires careful consideration and planning, as improper use can potentially damage the drill string or worsen the stuck pipe situation.
Shock Sub: The Continuous Protector
Unlike the drilling jar, the shock sub is an active component during normal drilling operations. It's constantly working to absorb and dampen vibrations, providing continuous protection to the BHA and drill string. Shock subs are particularly useful in the following situations:
- Hard rock formations: Where excessive vibrations are more likely to occur
- Extended reach drilling: To mitigate the increased vibrations associated with long horizontal sections
- High-speed drilling operations: Where rotational speeds can generate significant vibrations
- When using sensitive downhole tools: To protect expensive measurement and logging equipment
The use of shock subs is often part of a comprehensive vibration management strategy, which may also include optimized bit selection, controlled drilling parameters, and real-time vibration monitoring.
Maximizing Efficiency: Integrating Both Tools
Synergistic Use of Drilling Jars and Shock Subs
While drilling jars and shock subs serve different primary functions, their combined use can significantly enhance drilling efficiency and safety. Integrating both tools in the BHA allows for a proactive approach to managing both stuck pipe risks and harmful vibrations. Here's how they can work together:
- Vibration Mitigation: The shock sub's continuous dampening effect can help prevent the conditions that might lead to stuck pipe, reducing the likelihood of needing to activate the drilling jar.
- Jar Performance: By reducing overall vibrations, shock subs can help maintain the integrity of the product, ensuring it's in optimal condition when needed.
- BHA Protection: While the shock sub protects the BHA from operational vibrations, the drilling jar stands ready to free the entire assembly if it becomes stuck.
Optimizing BHA Design
Effectively integrating drilling jars and shock subs requires careful consideration of BHA design. Factors to consider include:
- Placement: The position of both tools within the BHA can significantly affect their performance. Generally, shock subs are placed near the bit or other vibration-sensitive components, while drilling jars are often positioned higher in the BHA.
- Compatibility: Ensure that the selected drilling jar and shock sub are compatible with each other and with other BHA components.
- Well Conditions: Consider the specific well conditions, including formation characteristics, wellbore trajectory, and expected drilling challenges when selecting and positioning these tools.
Drilling crews may build a BHA that is more efficient and robust, able to handle a variety of drilling circumstances and problems, by carefully combining drilling jars with shock subs.
Conclusion
To get the most out of your drilling activities, you need to know how drilling jars and shock subs work. Shock subs protect you from dangerous shocks all the time, and they're also a great way to clear out pipes. By joining the two tools in a smart way, drilling teams may be able to work faster, waste less time, and handle tough well conditions better.
