How a Drilling Mud Motor Works in Horizontal Drilling?

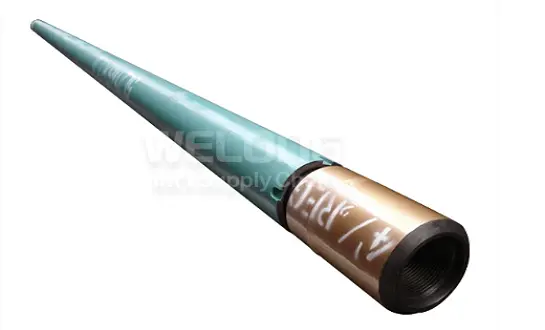

Key Components of Mud Motors Explained

Understanding the intricate parts of a Drilling Mud Motor is essential for grasping its functionality in horizontal drilling operations. Let's break down the key components:

Power Section

The power section is the heart of the mud motor, consisting of a rotor and stator. The rotor, typically made of steel, rotates within the rubber-lined stator. As drilling fluid passes through this section, it creates a pressure differential that causes the rotor to turn, generating the power that drives the drill bit.

Transmission Assembly

This component transfers the power from the power section to the bearing section. It includes a drive shaft and various universal joints that allow for the eccentric motion of the rotor to be converted into concentric rotation.

Bearing Section

The bearing section supports the radial and axial loads generated during drilling. It houses a series of bearings that enable smooth rotation of the drive shaft and bit.

Adjustable Bend Housing

This crucial component allows for directional control in horizontal drilling. By adjusting the angle of the bend, drillers can steer the wellbore in the desired direction, making it invaluable for precision in horizontal sections.

Working Principle of a Drilling Mud Motor

The operation of a Drilling Mud Motor in horizontal drilling is a testament to engineering ingenuity. Here's a detailed look at how it functions:

Fluid Dynamics

High-pressure drilling fluid is pumped down the drill string and enters the mud motor. As it flows through the power section, the fluid interacts with the rotor-stator configuration, creating a spiral flow path.

Power Generation

The spiral flow of the drilling fluid causes the rotor to rotate within the stator. This rotation is the primary source of power for the mud motor, converting hydraulic energy into mechanical energy.

Torque Transmission

The rotational energy generated in the power section is transmitted through the transmission assembly to the bearing section. This process ensures that the energy is efficiently transferred to the drill bit.

Bit Rotation

The drill bit, connected to the bottom of the mud motor, receives the rotational energy and begins to turn. This rotation occurs independently of the drill string, allowing for greater control in directional drilling.

Directional Control

By utilizing the adjustable bend housing, drillers can alter the direction of the wellbore. When the drill string is rotated, the bend is neutralized, allowing for straight drilling. When the drill string is held stationary, the bend causes the bit to drill in a curved path, enabling precise directional control.

Optimizing Mud Motor Performance in Challenging Formations

Maximizing the efficiency of a Drilling Mud Motor in horizontal drilling, especially in challenging formations, requires careful consideration and optimization. Here are key strategies to enhance performance:

Mud Properties Management

The properties of the drilling fluid significantly impact mud motor performance. Optimizing viscosity, density, and lubricating qualities of the mud can improve power output and reduce wear on motor components.

Flow Rate Adjustment

Proper regulation of the drilling fluid flow rate is crucial. Higher flow rates generally increase power output but may lead to excessive wear. Finding the optimal balance is essential for prolonged motor life and efficient drilling.

Bit Selection and Optimization

Choosing the right drill bit and optimizing its parameters in conjunction with the mud motor is vital. Factors such as bit type, nozzle configuration, and rotary speed must be carefully matched to the motor specifications and formation characteristics.

Vibration Management

Minimizing harmful vibrations is key to preserving mud motor integrity and improving drilling efficiency. Implementing vibration dampening technologies and adjusting drilling parameters can significantly reduce wear and tear on the motor.

Real-Time Monitoring and Adjustment

Utilizing advanced measurement-while-drilling (MWD) tools allows for real-time monitoring of mud motor performance. This data enables immediate adjustments to drilling parameters, ensuring optimal performance throughout the horizontal section.

Temperature Management

In high-temperature formations, managing the heat generated by the mud motor is crucial. Implementing cooling systems or using specially designed high-temperature motors can prevent performance degradation and extend motor life.

By implementing these optimization strategies, drilling teams can significantly enhance the performance and longevity of mud motors in challenging horizontal drilling scenarios. This not only improves drilling efficiency but also contributes to the overall success of the well construction project.

Conclusion

The Drilling Mud Motor has undeniably transformed horizontal drilling operations, offering unprecedented control and efficiency in navigating complex wellbores. Its ability to provide independent bit rotation and precise directional control has made it an indispensable tool in modern drilling practices. As the oil and gas industry continues to push the boundaries of what's possible in horizontal drilling, the role of mud motors will only grow in importance. By understanding the intricacies of their operation and continuously optimizing their performance, drilling engineers can unlock new levels of efficiency and productivity in challenging formations. The future of horizontal drilling looks bright, with mud motors leading the way in technological advancement and operational excellence.

For more information on high-quality drilling equipment and expert guidance on optimizing your drilling operations, please contact us at oiltools15@welongpost.com. Welong, a leader in oilfield equipment manufacturing, offers a wide range of high-quality mud motors designed to meet the diverse needs of horizontal drilling operations.

FAQ

1. What are the main advantages of using a Drilling Mud Motor in horizontal drilling?

Drilling Mud Motors offer several advantages in horizontal drilling, including improved directional control, increased rate of penetration, reduced drill string wear, and the ability to drill longer horizontal sections. They also allow for more efficient power transmission to the drill bit, especially in deviated wellbores.

2. How does the bend angle in a mud motor affect directional drilling?

The bend angle in a mud motor is crucial for directional drilling. A larger bend angle allows for a tighter turning radius, enabling more aggressive directional changes. However, it can also increase the risk of stick-slip and vibration. Smaller bend angles provide more gradual directional changes and are often used for longer horizontal sections.

3. Can mud motors be used in all types of formations?

While mud motors are versatile, their effectiveness can vary depending on the formation. They are particularly effective in softer to medium-hard formations. In extremely hard or abrasive formations, special considerations such as motor configuration, bit selection, and operating parameters need to be carefully evaluated to ensure optimal performance and longevity.
