How do Blowout Preventers prevent oil spills?

In order to avoid disastrous oil leaks during drilling operations, Blowout Preventers (BOPs) are essential. As a last precaution against wells releasing excessive amounts of oil and gas, these complex devices are needed. When hazardous circumstances develop, Blowout Preventers function by isolating the wellbore and regulating pressure. The BOP may rapidly close off a well if operators see any indications of a possible blowout utilising hydraulic rams and annular seals. Without this capacity to respond quickly, operators would lose control of the well and be unable to stop catastrophic spills that might hurt employees, ruin equipment, and ruin the environment. Due to its efficacy in preventing oil leaks, BOPs have become an essential safety device in contemporary onshore and offshore drilling globally. Because of its dependable operation in very hot and pressurised environments, the hazards connected with oil and gas extraction have been greatly reduced.

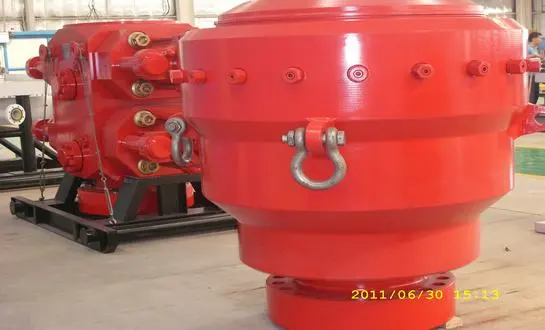

The anatomy of a Blowout Preventer

Core components of a BOP stack

A typical Blowout Preventer stack consists of several key components working together to provide multiple layers of well control:

• Ram preventers: These contain hydraulically-operated steel rams that can close around drill pipe or seal off an open wellbore.
• Annular preventers: Donut-shaped rubber elements that can seal around various pipe sizes or an open hole.
• Choke and kill lines: Allow for circulating fluids and controlling wellbore pressure.
• Hydraulic control system: Provides the power to operate BOP components rapidly.
• Accumulator: Stores hydraulic fluid under pressure for emergency BOP activation.

How the different parts work together?

When a potential blowout is detected, operators can activate different parts of the BOP stack as needed:

1. Annular preventers typically close first to provide an initial seal.
2. Ram preventers can then be activated to provide a stronger seal or cut through pipe if necessary.
3. Choke and kill lines allow for circulating heavy mud to regain pressure control.
4. The accumulator ensures BOPs can function even if normal hydraulic power is lost.

This multi-layered approach allows for flexible response to various well control scenarios.

4 critical functions of BOPs in drilling operations

1. Well control and pressure management

To regulate the pressure inside the wellbore and stop the uncontrolled flow of formation fluids, Blowout Preventers are mostly used. In the event that downhole pressures get too high, BOPs may swiftly close the wellbore, enabling the crew to reuse heavier drilling mud and promptly restore control.

2. Emergency well shut-in

In critical situations, BOPs provide the ability to completely shut in a well, isolating it from the surface. This prevents catastrophic blowouts that could lead to loss of life, equipment damage, and environmental disasters.

3. Managed pressure drilling

Modern BOPs enable advanced techniques like managed pressure drilling, where wellbore pressure is precisely controlled to drill through challenging formations safely and efficiently.

4. Tool string management

BOPs allow for safe insertion and removal of drill pipe and tools from a pressurized wellbore, maintaining well control throughout operations.

Case study: BOP success in averting offshore disasters

The Gulf of Mexico incident of 2010

While the 2010 Deepwater Horizon disaster highlighted the catastrophic consequences of BOP failure, it also led to significant improvements in BOP technology and testing procedures. In the years following, there have been numerous instances where properly functioning BOPs have prevented potential disasters.

Recent BOP interventions

A large North Sea offshore operator encountered an unexpected surge of formation fluids in 2018 while drilling. The well was effectively sealed by the rig's BOP stack, avoiding any possibility of a blowout. After rigorous monitoring and intervention for many days, the crew securely controlled the well and activities could restart.

Proper crew training in emergency procedures and frequent maintenance and testing of the BOP were both highlighted by this occurrence. Damages and other environmental consequences totalling millions of dollars were probably averted because to the intervention's effectiveness.

Conclusion

In order to safeguard people and the environment from devastating oil spills, the oil and gas sector relies on blowout preventers made by a Blowout Preventers manufacturer. A strong defence against well control accidents is provided by their complex architecture and several redundant mechanisms. The reliability and effectiveness of BOPs are improving with each passing year, significantly lowering the hazards that are inherent to drilling operations.

Well control capabilities have been greatly improved because to the oil and gas industry's dedication to constantly improving BOP technology, maintenance procedures, and operator training. To responsibly extract resources in difficult onshore and offshore settings, there must be a persistent emphasis on safety and prevention.

FAQ

1. What is the lifespan of a typical Blowout Preventer?

The lifespan of a BOP can vary depending on usage and maintenance, but many are designed to last 20-30 years with proper care and regular refurbishment.

2. How often are Blowout Preventers tested?

BOPs undergo frequent testing, with function tests typically performed every 7-14 days during drilling operations. More comprehensive pressure tests are usually conducted every 14-21 days or as required by regulations.

3. Can Blowout Preventers be used in both offshore and onshore drilling?

Yes, BOPs are crucial safety devices in both offshore and onshore drilling operations, though offshore BOPs are often larger and more complex due to the challenging deepwater environment.
