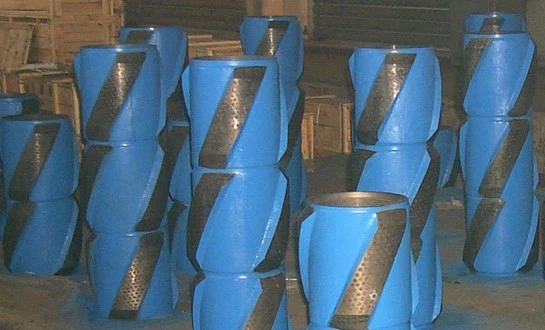

Key Factors in Sleeve Stabilizer Design
The first step of customisation is to define the circumstances the stabilizer will have to deal with throughout the scheduled run. A good design should provide the desired BHA function without imposing unacceptable limitations on drilling performance or tool compatibility.
Material Selection
The material should be chosen according to the real mechanical and environmental demands of the application.
The material and heat-treatment condition used for a steel sleeve stabilizer must provide the desired mix of strength, toughness, hardness, and wear resistance. The right grade should be based on the specifications of the design and not on the assumption that one material is suited for all deep wells.
If the BHA contains MWD or other equipment susceptible to magnetic interference, then a non-magnetic structure may also be necessary. In such a case the choice of the material must fulfill the mechanical requirements of the stabilizer and the magnetic requirements of the measuring equipment.
Material selection should be addressed with the manufacturer prior to manufacturing. The design team may then consider predicted loads, temperature range, forming environment and needed wear performance rather than just picking a material by name.
Blade Configuration
The blade arrangement of a sleeve stabilizer impacts the way the tool interacts with the wellbore and supports the bottom-hole assembly.
Instead of a universal blade count or profile, consider the following questions:
- How much contact with the wellbore is needed?
- Where will the stabilizer be located in the BHA?
- Are you looking for directional control, BHA stabilization or wellbore conditioning?
- What size of hole and formation will the tool see?
- Is hydraulic clearance and cuttings conveyance relevant to the application?
The blade profile, breadth, length and the total contact area have to be mutually decided. A design with greater contact is not always better. The configuration must be appropriate to the BHA function and drilling circumstances.
If directional control is crucial, the stabilizer geometry should be assessed as part of the whole BHA and not as a separate component.
Dimensional Considerations
Dimensions should be defined from the actual drilling assembly and well geometry.
Key items normally include:
- Outside diameter (OD)
- Inside diameter (ID)
- Overall length
- Blade height and profile
- Connection type and dimensions
- Required clearance within the BHA
The OD has to be appropriate for the desired hole size and stabilization goal, and the ID should give the requisite internal flow channel and structural capability. The interaction of the stabilizer with the surrounding BHA is also affected by the overall length and blade shape.
Check connection dimensions against matching drillstring components and connection criteria. 5. Currently, API’s standards information lists API Spec 7-1 as the specification addressing rotary drill stem elements, including stabilizers, and API Spec 7-2 covering the threading and gaging of rotary shouldered connections.
Thus the final design should be checked with the full assembly rather than approving OD and ID separately.
Adapting Stabilizers for Extreme Depths
Deep wells may also apply extra stress on drilling gear, but real circumstances differ from well to well. Customization should be based on projected temperature, pressure, mechanical loads, formation and BHA behavior, not on the assumption that all deep wells are the same.
High-Pressure and High-Temperature (HPHT) Considerations
If the intended well is inside an HPHT operating environment, then the stabilizer design should be compared to the actual temperature and pressure envelope.
Consider material qualities, dimensional stability, joint performance and any relevant wear or sealing elements for the application. The manufacturer should also ensure that the chosen materials and manufacturing method are adequate for the intended service environment.
Remembering that a component built for a normal well will not be immediately suited for a higher demanding temperature or pressure range. Start the design evaluation using the real well parameters.
Enhanced Wear Resistance
Formation abrasiveness can have a major effect on the service condition of stabilizer blades. Instead of specifying a hard-facing treatment by default, first determine where wear is expected and how severe it may be.
Hard-facing or wear-resistant materials may be applied to working surfaces when required by the application. The selection should consider:
- Formation hardness and abrasiveness
- Expected contact with the wellbore
- Required gauge retention
- Repair or redress requirements
- Compatibility with the base material and manufacturing process
Replaceable wear components may also be considered when the stabilizer design and maintenance strategy support them. The objective is not simply to make every surface as hard as possible, but to provide suitable wear resistance without compromising the overall tool design.
Vibration Mitigation
Vibration should be considered as part of the complete BHA design.
A stabilizer can influence drill-string behavior through its geometry, position, and interaction with the wellbore. However, it should not be described as a standalone vibration damper unless the specific design has that function.
When vibration is a concern, review the stabilizer together with:
- BHA configuration
- Stabilizer placement
- Blade geometry
- Hole size
- Formation characteristics
- Drilling parameters
Field data such as torque, vibration, and drilling response can help determine whether changes to the stabilizer configuration are justified for subsequent runs.
Optimizing Performance: Material Selection Tips
The choice of material should match the application criteria defined in the initial design stage. The goal is to optimize requirements for mechanical strength, toughness, wear resistance, corrosion, magnetic and manufacturability.
High-Strength Alloys
The stabilizer body material should have mechanical qualities adequate for the projected mechanical stresses and operating conditions.
Conventional applications may consider alloy steels, but alternative material systems may be suitable when the well imposes special temperature, corrosion, or magnetic requirements.
Don’t assume that AISI 4145H or any other alloy will be a “one size fits all” solution. Confirm the needed material grade, heat treatment, mechanical qualities and manufacturing specification for the particular sleeve stabilizer design.
This also makes the procurement process clearer since the maker has performance parameters to work from and not just a material name.
Hard-Facing Materials
Hard-facing might be advantageous when the stabilizer will be subjected to extensive abrasive contact.
Wear protection based on tungsten carbide is one alternative for use in drilling-tool applications, but the optimal treatment relies on the working surface, the formation, the predicted wear mechanism and the needed gage retention.
Hence the hard-facing specification should be more than just the material designation. It should also talk about where the treatment is administered and how it fits into the production and inspection process.
The hard-facing need for a bespoke sleeve stabilizer should be decided at the drawing and technical specification stage rather than introduced as a generic upgrade after the basic design has been finalized.
Non-Magnetic Options
If the stabilizer is to be located near measuring equipment that may be sensitive to magnetic interference then non-magnetic construction may be necessary.
Selection should be dependent on the actual measurement method and BHA setup. The non-magnetic material must also possess the mechanical qualities necessary for the stabilizer’s intended function.
For this reason, material selection should be a compromise between magnetic performance, strength, toughness, corrosion concerns, manufacturing constraints and connection design. Final material check with entire BHA and appropriate tool specs.
Conclusion
It isn’t just a case of selecting a stronger material or better wear protection to customize a sleeve stabilizer for deep well drilling. The design should be based on the well conditions and BHA requirements and then translated those requirements into material, blade shape, dimensions, connections and surface protection.
Deeper or more demanding wells due to temperature, pressure, formation abrasiveness, vibration, magnetic requirements and predicted mechanical stress may need further design consideration. The final design however should be based on the actual operating environment and not general assumptions about deep wells.
A good technical specification also makes communication between drilling contractor and manufacturer considerably simpler. When the hole size, BHA location, connection needs, formation information, operating circumstances and other MWD related requirements are given, the manufacturer has a better foundation to build the right sleeve stabilizer configuration.
