Key Factors in Stabilizer Selection for Different Rock Types
When choosing a stabilizer for your drilling project, several crucial factors come into play. These elements are essential in determining the most suitable equipment for the specific rock formation you're working with:
Formation Characteristics
Understanding the formation characteristics is fundamental when selecting a equipment. Rock hardness determines the amount of torque required, while abrasiveness affects wear rates on equipment. Compressive strength influences the cutting action and vibration levels. A detailed formation analysis ensures that the equipment is optimized for efficiency, longevity, and drilling safety.
Stabilizer Material

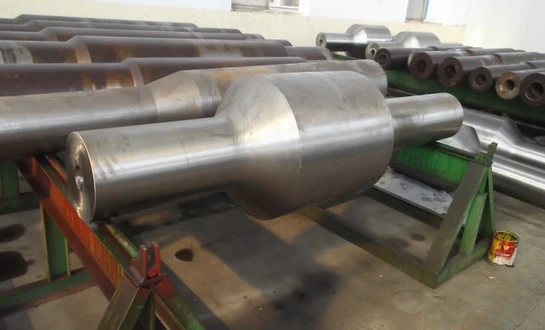

The choice of stabilizer material greatly impacts performance and service life. Premium alloys such as AISI 4145H/4145H MOD and AISI 4330V are preferred for their superior tensile strength and resistance to fatigue. These materials maintain dimensional stability under extreme downhole stresses, ensuring consistent performance even in highly abrasive or high-impact drilling conditions.
Blade Design and Configuration
Blade geometry and arrangement can significantly influence drilling efficiency in various rock types. Straight blades provide smoother stabilization in softer formations by reducing reactive torque. In contrast, spiral blades help minimize vibration and improve hole cleaning in harder rocks. Proper blade design enhances directional control and reduces the likelihood of deviation.
Gauge Protection
Gauge protection safeguards the equipment's outer diameter, preventing premature wear and ensuring accurate hole size. In abrasive formations, hardened inserts or wear pads are often integrated into the gauge area. This not only extends the service life of the equipment but also reduces replacement frequency, ultimately lowering operational downtime and costs.
Hardfacing Options
Applying the right hardfacing material to stabilizer blades is essential for maximizing wear resistance. Options like HF1000, HF2000, HF3000, HF4000, and HF5000 offer varying hardness levels and bonding properties. The choice depends on the abrasiveness of the formation, with harder coatings providing superior protection in extremely challenging drilling environments.
Soft vs. Hard Rock: Stabilizer Design Considerations
The design of a stabilizer must be tailored to the specific challenges presented by soft and hard rock formations:
Stabilizers for Soft Rock Formations
When drilling through soft rock, equipments need to address unique challenges:
- Blade Design: Wider, less aggressive blades help prevent excessive penetration into the formation.
- Gauge Protection: Enhanced gauge protection is crucial to maintain stabilizer diameter in soft, abrasive formations.
- Material Selection: While still durable, materials may not need to be as hard as those used for hard rock drilling.
Stabilizers for Hard Rock Formations
Hard rock drilling requires stabilizers with specific characteristics:
- Blade Configuration: Spiral or helical blade designs can help reduce vibration and improve equipment performance in hard formations.
- Material Hardness: Harder materials and more robust hardfacing options are necessary to withstand the abrasive nature of hard rock drilling.
- Reduced Contact Area: Stabilizers with a reduced contact area can help minimize friction and heat generation in hard rock environments.
Versatile Stabilizer Options
Some stabilizer designs offer versatility for various formation types:
- Roller Reamers: These equipments use rotating cutters that can be adapted for different formation types, from soft to hard.
- Replaceable Sleeve Stabilizers: These allow for quick changes in equipment size and configuration without replacing the entire tool, offering flexibility for different hole sizes and formation types.
Optimizing Drilling Performance: Matching Stabilizers to Formations
To achieve optimal drilling performance, it's crucial to match your stabilizer selection with the specific formation characteristics you'll encounter:
Formation-Specific Stabilizer Selection
Consider the following guidelines when selecting equipments for different formation types:
- Soft Formations: Use equipments with wider blades and enhanced gauge protection to prevent excessive penetration and maintain hole quality.
- Medium Formations: Choose equipments with a balance of blade aggressiveness and wear resistance to handle transitional zones effectively.
- Hard Formations: Opt for equipments with harder materials, more robust hardfacing, and potentially spiral blade configurations to combat vibration and wear.
Stabilizer Placement Strategy
The positioning of stabilizers within the bottomhole assembly (BHA) can significantly impact drilling performance:
- Near-Bit Stabilizers: Placed close to the drill bit, these help maintain directional control and reduce bit whirl.
- String Stabilizers: Positioned further up the drill string, these help centralize the BHA and reduce vibration.
- Adjustable Stabilizers: These allow for on-the-fly changes in equipment positioning, offering flexibility in managing directional tendencies.
Monitoring and Adjustment
Continuous monitoring of drilling parameters and equipment performance is essential for optimizing your drilling operation:
- Real-Time Data Analysis: Use downhole sensors and surface monitoring systems to track equipment performance and make informed adjustments.
- Wear Inspection: Regularly inspect equipments for wear and damage, replacing or repairing them as needed to maintain optimal performance.
- Performance Evaluation: Analyze drilling data to identify areas for improvement and refine your equipment selection strategy for future projects.
Conclusion
In conclusion, selecting the best stabilizer for soft or hard rock drilling requires a thorough understanding of formation characteristics, stabilizer design features, and their interplay in the drilling process. By carefully considering factors such as blade design, material selection, and placement strategy, you can optimize your drilling performance across various formation types. Regular monitoring and adjustment of your stabilizer selection approach will help ensure continued success in your drilling operations. For expert guidance on equipment selection and high-quality drilling tools, contact Welong at oiltools15@welongpost.com.
