Introduction to Drill Stabilizers and Their Importance

Drill stabilizers play a crucial role in the oil and gas industry, serving as indispensable components in drilling operations. These specialized tools are designed to enhance borehole quality, improve drilling efficiency, and maintain wellbore stability. it are strategically placed along the drill string to centralize the drill bit, reduce vibration, and control the direction of the wellbore. By minimizing unwanted lateral movement and providing consistent weight distribution,it contribute significantly to the overall success of drilling projects. Their importance cannot be overstated, as they directly impact the accuracy, speed, and cost-effectiveness of drilling operations. From reducing drill string fatigue to preventing hole deviation, stabilizers are essential for achieving optimal drilling performance and ensuring the long-term integrity of oil and gas wells.

​​​​​​​

How Drill Stabilizers Enhance Borehole Quality?

Drill stabilizers help make the borehole better by doing a few important things. They keep the drill string in the center, which helps keep the hole size even and lowers the chances of problems like washouts or ledges. This central position also helps spread the weight evenly on the drill bit, leading to smoother cutting and faster drilling.

Reducing Vibration and Improving Drilling Accuracy

One of the primary functions of drill stabilizers is to minimize vibration during drilling operations.

• Premature wear on drill bits and other downhole tools
• Reduced drilling efficiency and slower penetration rates
• Increased risk of wellbore instability and formation damage
• Potential damage to measurement-while-drilling (MWD) and logging-while-drilling (LWD) tools

By reducing vibration, drill stabilizers help maintain straighter wellbores and improve overall drilling accuracy. This is particularly important in directional and horizontal drilling applications, where precise control over the trajectory of the wellbore is essential.

Preventing Hole Deviation and Maintaining Wellbore Stability

Drill stabilizers are very important for stopping the drill from going off course, especially in areas where the ground is hard or when drilling at angles. They keep a steady contact with the wellbore wall, which helps the drill stay on the right path. This not only makes the well more accurate but also helps keep the wellbore stable, lowering the chances of it collapsing or facing other problems related to the formation.

Types of Stabilizers: Choosing the Right Tool

Selecting the appropriate stabilizer for a drilling operation is crucial for maximizing its effectiveness. Different types of equipments are designed to address specific drilling challenges and formation characteristics. Understanding the various options available can help drilling engineers make informed decisions to optimize their operations.

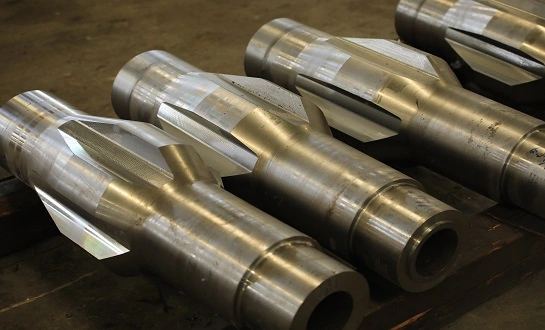

Integral Blade Stabilizers

Integral blade stabilizers are machined from a single piece of steel, with the blades formed as part of the body. These equipments offer excellent durability and are well-suited for harder formations. Key features include:

• High strength and resistance to wear
• Suitable for high-temperature and high-pressure environments
• Limited adjustability in terms of blade size or configuration

Replaceable Sleeve Stabilizers

Replaceable sleeve stabilizers consist of an integral mandrel and a separate sleeve. This design offers greater flexibility, as one mandrel can be used with different sleeve sizes to accommodate various hole diameters. Advantages of replaceable sleeve stabilizers include:

• Cost-effective solution for multiple hole sizes
• Easier maintenance and replacement of worn components
• Ability to change equipment size without replacing the entire tool

Material options for replaceable sleevestypically include AISI 4145H/4145H MOD and non-magnetic materials for specific applications. The sleeves can be equipped with various hardfacing options, such as HF1000, HF2000, HF3000, HF4000, and HF5000, to suit different formation types and abrasiveness levels.

Roller Reamers

Roller reamers are a specialized type of bit that uses rotating cutters to maintain borehole diameter and reduce friction. These tools are particularly useful in softer formations or in areas prone to swelling or sloughing. Key features of roller reamers include:

• Reduced torque and drag compared to fixed-blade stabilizers
• Improved hole cleaning capabilities
• Ability to pass through tight spots more easily

Roller reamers are typically manufactured using materials such as AISI 4145H/4145H MOD or AISI 4330V. The roller cutters can be designed for specific formation types, including firm, medium-to-hard, and soft formations.

Optimizing Drilling Performance with Proper Stabilizer Placement

The strategic placement of stabilizers along the drill string is crucial for optimizing drilling performance. Proper equipment configuration can significantly impact wellbore trajectory, drilling efficiency, and overall well quality.

Understanding Stabilizer Placement Strategies

There are several common stabilizer placement strategies used in drilling operations:

• Packed Hole Assembly: Multiple equipments are placed close together near the bit to provide maximum stiffness and control.
• Pendulum Assembly: Stabilizers are spaced further apart to allow for natural deviation correction.
• Stiff Assembly: A combination of near-bit and string stabilizers used to maintain a straight hole or control deviation.

The choice of placement strategy depends on various factors, including formation characteristics, well design, and drilling objectives.

Factors Influencing Stabilizer Placement

Several key factors should be considered when determining the optimal placement of stabilizers:

• Formation hardness and abrasiveness
• Wellbore trajectory (vertical, directional, or horizontal)
• Desired rate of penetration (ROP)
• Bottom hole assembly (BHA) design
• Hole size and stabilizer gauge

By carefully considering these factors and adjusting equipment placement accordingly, drilling engineers can optimize drilling performance, reduce downtime, and improve overall well quality.

Conclusion

Drill stabilizers are essential components in modern drilling operations, playing a vital role in enhancing borehole quality, improving drilling accuracy, and optimizing overall performance. By understanding the various types of equipments available and implementing proper placement strategies, drilling engineers can significantly improve the efficiency and effectiveness of their operations. As the oil and gas industry evolves, selecting and utilizing the right equipments for each unique drilling scenario becomes increasingly important. With advancements in materials and design, it will undoubtedly continue to play a crucial role in achieving successful drilling outcomes for years to come.

For more information on high-quality drill stabilizers and other oilfield products, please contact us at oiltools15@welongpost.com. Welong is dedicated to supplying high-quality drill stabilizers and various oilfield products that address the diverse needs of the oil and gas industry. With our extensive experience and strict quality control processes, we ensure that our products meet the highest standards of performance and reliability.

FAQ

1. How often should drill stabilizers be replaced?

The frequency of drill stabilizer replacement depends on various factors, including formation characteristics, drilling conditions, and the type of stabilizer used. Generally, equipments should be inspected regularly for signs of wear and replaced when they no longer meet the required gauge specifications or show significant damage. In highly abrasive formations, equipments may need to be replaced more frequently, sometimes after each run.

2. Can stabilizers be used in all types of formations?

While stabilizers can be used in a wide range of formations, the specific type and configuration may vary depending on the formation characteristics. For example, integral blade stabilizers are well-suited for harder formations, while roller reamers may be more appropriate for softer or swelling formations. It's essential to select the right type of equipment based on the specific geological conditions encountered during drilling.

3. How do stabilizers affect the rate of penetration (ROP)?

Stabilizers can have both positive and negative effects on the rate of penetration, depending on their placement and the drilling conditions. Properly placed equipments can improve ROP by reducing vibration and maintaining consistent weight on the bit. However, excessive use of equipments or improper placement can sometimes lead to reduced ROP due to increased friction or difficulty in transferring weight to the bit. Optimizing equipment configuration is key to achieving the best balance between hole quality and drilling efficiency.
