Kelly Hose vs Rotary Hose: Key Differences Explained

When it comes to oil and gas drilling, it's important to know the differences between the different parts of the tools. The Kelly hose and the rotary hose are two important parts of this business. These tubes look a lot alike at first glance, but they are used for different things and have different features. This piece will go into detail about the main differences between Kelly hoses and rotary hoses. It will be useful for workers in the field and people who are interested in drilling operations. In a drilling rig, Kelly hoses are special high-pressure tubes that are used to connect the standpipe to the swivel. They are very important for getting drilling fluid from the mud pumps to the drill string. rotating tubes, on the other hand, move drilling fluid from the standpipe to the rotating joint so that the drill string can keep turning. Although both tubes are important to the drilling process, they are not the same in how they work or how they are made.

​​​​​​​

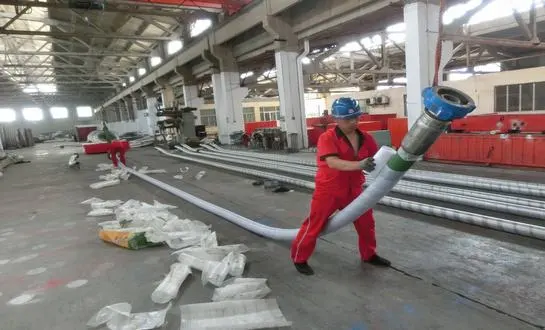

Understanding Kelly Hoses: What They Are and How They Work

Kelly tubes are an important part of the system used in oil and gas operations to move pumping fluid around. The harsh conditions that happen during digging are made to hold up against these high-pressure hoses. Let's look at the most important things about Kelly tubes and how they work:

Building and Substances

Kelly hoses are usually made with more than one layer to make them last longer and work better in high-pressure situations. Most of the time, the inner tube is made of nitrile butadiene rubber (NBR), a synthetic rubber that is very resistant to oil-based drilling fluids. After this, support layers are added, which are usually made of high-tensile steel wire coils or braids. These give the hose the strength it needs to handle high working pressures. The outside cover is usually made of synthetic rubber that doesn't wear down easily. This keeps the hose safe from damage from the outside and the elements.

Ratings for pressure and adaptability

Kelly tubes can take high pressures, which is one of the things that makes them unique. Depending on the purpose and type of the hose, these hoses can usually handle working pressures between 5,000 and 15,000 psi. Even though Kelly hoses can handle high pressure, they are made to be flexible so they are easy to handle and place in a variety of rig setups.

How long and what connections

Kelly lines usually come in lengths between 40 and 75 feet, with 55 feet being the most popular normal length. This length gives you enough freedom to move around while drilling while reducing the need for multiple links. Kelly hoses usually have end clamps that are made to fit smoothly onto the standpipe and turn, making sure that the connection is safe and doesn't leak.

Drilling Systems Require Rotary Hose Components

Kelly hoses and rotary hoses are similar in some ways, but they are used for different things in drilling. These tubes are made to move drilling fluid from the standpipe to the rotating joint. This makes it possible for the drill string to keep turning. Let's look at what rotor lines are and what they do:

Planning and building

Like Kelly hoses, rotary hoses are made with several layers to make sure they last and work well. The inner tube is usually made of oil-resistant synthetic rubber that can handle the roughness of drilling fluids. Most of the time, high-strength steel wire coils or bands make up the reinforcing layers. They provide the required pressure resistance. The outside cover is made to last in tough drilling conditions by resisting wear and tear, rusting, and ozone damage.

Ratings for pressure and adaptability

Working pressures for rotary tubes are usually between 3,000 and 7,500 psi, but this can change based on the grade and the use. Even though these pressure values are usually lower than those of Kelly hoses, rotary hoses are made to stay flexible and handle the constant movement that comes with a spinning drill string.

How long and what connections

Kelly hoses are usually longer than rotary hoses, but rotary hoses are typically only 25 to 40 feet long. For this particular job, connecting the standpipe to the rotating turn, this shorter length works well. The ends of rotor tubes are made with fittings that make links safe and make installation easy, so there is less downtime while the rig is working.

What Makes Kelly Hoses and Rotary Hoses Different

Kelly hoses and rotating hoses are both very important in drilling, but there are some important changes between the two. To make the right choice and use of drilling tools, you need to know these differences:

Why and where it goes

There is a big difference between Kelly hoses and rotary hoses in what they do in the cutting system. Kelly hoses link the standpipe to the swivel. The mud pumps send drilling fluid to the drill string through these hoses. rotational tubes, on the other hand, connect the standpipe to the rotational joint. This lets the drilling fluid move while still letting the drill string turn.

Ratings for Pressure

Kelly hoses can handle more pressure than rotating hoses most of the time. Kelly hoses can work with pressures up to 15,000 psi, but most rotating hoses can only handle pressures up to 7,500 psi. These different pressure levels are because of the different needs of their roles in the drilling process.

How Long and Flexible

Kelly hoses usually come in lengths between 40 and 75 feet, which is longer than rotary hoses. This longer length gives you more options for how to set up your rig and what it can reach. Because they are shorter (usually 25 to 40 feet), rotary hoses are made to fit the distance between the standpipe and rotary swivel while still being flexible enough to allow the drill string to turn.

Choose the appropriate Hoses according to your needs

When selecting between Kelly hoses and rotary hoses, it’s important to consider several factors such as purpose, site scale, and budget. Each hose type is designed for specific applications, and understanding these distinctions will help you make an informed choice.

Purpose

Kelly hose is primarily used for connecting the drill string to the surface equipment. It is designed to handle high-pressure situations typically found in deeper drilling operations. If your project involves vertical drilling with significant pressure requirements, a Kelly hose is essential.

Rotary hose is used to transport drilling fluid to the drill bit. Its design allows for flexibility and mobility, making it ideal for operations that require frequent adjustments. If your drilling process focuses on maintaining fluid circulation and cooling during shallow drilling, a rotary hose will be more effective.

Site Scale

For larger drilling projects, especially those with deep wells, investing in a Kelly hose is advisable due to its robust construction and ability to withstand high pressures. It is better suited for extensive drilling rigs where pressure management is crucial.

In smaller-scale operations or exploratory drilling, a rotary hose is often preferred. Its lighter and more flexible nature makes it easier to maneuver in tight spaces and around various equipment on-site, providing convenience without sacrificing efficiency.

Budget

Typically, Kelly hoses are more expensive due to their heavy-duty materials and construction designed to handle extreme conditions. If your budget allows for higher investment in safety and durability, this option is worthwhile.

Generally, rotary hoses are more budget-friendly, offering good performance for less demanding applications. If you’re working within a tighter budget, investing in a quality rotary hose can still meet your operational needs effectively.

In summary, choosing the right hose depends on your project's specific requirements, including its purpose, scale, and budget constraints. Evaluating these factors will ensure you select the most suitable hose for optimal drilling performance.

Conclusion

In conclusion, while Kelly hoses and rotary hoses may appear similar at first glance, they serve distinct purposes in drilling operations. Kelly hoses are designed for high-pressure fluid transfer from the mud pumps to the drill string, while rotary hoses facilitate fluid transfer to the rotating drill string. Understanding these differences is crucial for proper equipment selection and efficient drilling operations. By recognizing the unique features and functions of each hose type, drilling professionals can ensure optimal performance and safety in their operations.

FAQ

1. What is the main difference between a Kelly hose and a rotary hose?

The main difference lies in their function and placement. Kelly hoses connect the standpipe to the swivel, delivering drilling fluid from mud pumps to the drill string. Rotary hoses connect the standpipe to the rotary swivel, allowing fluid transfer while accommodating drill string rotation.

2. Which hose type typically has a higher pressure rating?

Kelly hoses typically have higher pressure ratings, often up to 15,000 psi, while rotary hoses are generally rated for pressures up to 7,500 psi.

3. How do the lengths of Kelly hoses and rotary hoses compare?

Kelly hoses are generally longer, with standard lengths ranging from 40 to 75 feet. Rotary hoses are typically shorter, with lengths between 25 to 40 feet.
