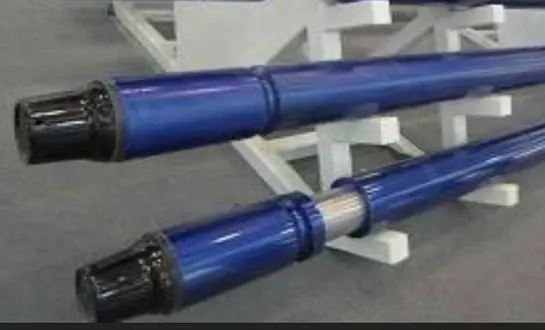

Understanding Drilling Jar Types and Functions
The two most common kinds of drilling jars are the mechanical and hydraulic varieties. When it comes to drilling, each kind has its own specialities and uses.
Hydraulic Drilling Jars
The impact forces generated and controlled by hydraulic drilling jars are based on fluid mechanics. A metering mechanism that postpones the tripping action is housed in these jars' fluid-filled chambers. A forceful blow is delivered to loosen trapped components when the stored energy is released when the drill string is overpulled, which triggers the jar to fire.
Mechanical Drilling Jars
Mechanical drilling jars, on the other hand, rely on a spring-loaded mechanism to create the jarring action. These jars are generally simpler in design and can be more suitable for certain drilling conditions where hydraulic jars might be less effective.
Operational Considerations
Take your drilling project's unique operating needs into account while choosing a drilling jar. Your decision should be based on considerations such the depth of the well, the properties of the formation, and the likelihood of trapped pipe situations. For a broader variety of drilling situations, hydraulic jars are a good choice since they allow for more exact control over impact energy. On the other hand, when dependability and ease of use are of the utmost importance, mechanical jars could be the best option.
Impact of Jar Placement on Well Performance
The strategic placement of a drilling jar within the bottom hole assembly (BHA) can significantly affect its effectiveness and overall well performance.
Optimal Positioning
Generally, the products are placed in the upper portion of the BHA, typically within the drill collars or heavy weight drill pipe (HWDP). This positioning allows for maximum energy transfer when the jar is activated. In vertical or low-angle wells, jars often run in tension, while in highly deviated or extended reach lateral wells, they may run in compression.
Neutral Point Considerations
It's crucial to avoid placing the drilling jar at or near the neutral point of the drill string. The neutral point is where the axial stress transitions from compression to tension. Placing a jar in this zone can lead to excessive lateral vibrations and premature wear, potentially causing unexpected jar activation or failure.
Weight Distribution
To ensure effective jarring action, it's recommended to run 3 to 4 drill collars above the product. This configuration provides sufficient weight to cock the jar and allows for adequate down weight during down-jarring operations. Additionally, placing 5-6 singles of HWDP between the jar and accelerator can maximize impact force.
Evaluating Durability: Materials and Design Considerations
The durability of a drilling jar is paramount to its performance and longevity in challenging downhole environments.
Material Selection
High-quality drilling jars are constructed using premium-grade materials that can withstand extreme temperatures, pressures, and corrosive environments. Manufacturers often use specialized alloys that offer superior strength and resistance to wear and fatigue. When evaluating a drilling jar, inquire about the specific materials used in critical components such as the mandrel, housing, and seals.
Design Features
Advanced design features can significantly enhance a drilling jar's durability and performance. Look for jars with:
- Robust sealing systems to prevent fluid ingress
- Optimized fluid metering systems for consistent performance
- Reinforced connections to withstand high torque and tensile loads
- Corrosion-resistant coatings or treatments
Maintenance and Lifespan
Regular maintenance is crucial for extending the lifespan of a drilling jar. Most manufacturers recommend replacing jars after a certain number of operating hours, typically around 350 hours for standard temperature conditions. However, in high-temperature environments (above 150°C), this limit may be reduced to 200 hours. When selecting a jar, consider the manufacturer's maintenance recommendations and the availability of spare parts and service support.
Conclusion
You can choose a tool that fits your specific drilling needs by thoroughly examining the important specs, such as jar type, impact force, placement considerations, and durability features. Keep in mind to think about things like well conditions, formation characteristics, and compatibility with your current equipment when you make this decision.
FAQ
1. How often should a drilling jar be inspected and maintained?
Regular inspections and maintenance are crucial for optimal drilling jar performance. Daily visual checks should be conducted before each use, focusing on signs of wear, damage, or fluid leaks. More comprehensive inspections and service should be performed according to the manufacturer's recommendations, typically after a certain number of operating hours or jarring events.
2. Can drilling jars be used in high-temperature wells?
Using the goods in high-temperature wells is possible, but there are certain things to keep in mind. Jars made specifically for use at high temperatures have unique seals and are constructed from materials that can resist such extreme heat. Check the jar's rating against the anticipated downhole temperatures and enquire about any particular operating instructions from the manufacturer before using it in a high-temperature application.
3. What factors influence the choice between hydraulic and mechanical drilling jars?
The choice between hydraulic and mechanical drilling jars depends on several factors, including well depth, formation characteristics, drilling conditions, and operator preference. Hydraulic jars generally offer more precise control over impact intensity and are suitable for a wider range of conditions. Mechanical jars may be preferred for their simplicity and reliability in certain applications. Consider consulting with a drilling engineer or jar manufacturer to determine the best option for your specific needs.
Confirm the Essential Specs for Your Drilling Jar Purchase
