The sleeve stabilizer, characterized by its replaceable sleeve design, offers versatility and adaptability across various hole sizes. On the other hand, the integral blade stabilizer boasts a one-piece construction, providing robust stability and durability. Both types have their unique advantages and limitations, which we'll explore in detail to help you make an informed decision for your specific drilling requirements.
Key Design Differences: Impact on Drilling Performance
Structural Composition
The sleeve stabilizer consists of two main components: an integral mandrel and a replaceable sleeve. This design allows for greater flexibility, as one mandrel can accommodate sleeves of various sizes to suit different hole diameters. The ability to change sleeves rather than the entire stabilizer unit offers significant advantages in terms of adaptability and cost-efficiency.

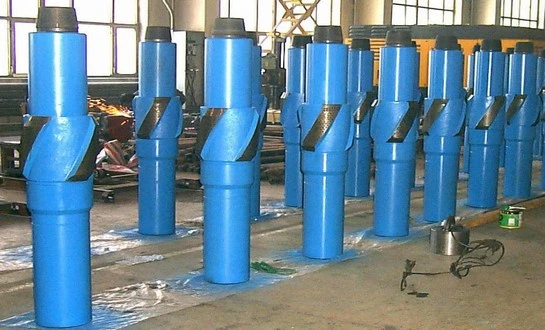

In contrast, the integral blade stabilizer is manufactured as a single unit, with blades machined directly onto the body. This monolithic structure provides exceptional strength and stability, making it particularly suitable for harsh drilling environments where robustness is paramount.
Wear Resistance and Longevity
When it comes to wear resistance, both stabilizer types can be enhanced with various hardfacing options. However, the sleeve stabilizer has a distinct advantage in terms of longevity. When the sleeve becomes worn, it can be easily replaced without the need to change the entire stabilizer body. This feature not only extends the overall lifespan of the tool but also reduces downtime and replacement costs.
Integral blade stabilizers, while durable, may require complete replacement once the blades wear down beyond acceptable limits. This can lead to higher long-term costs, especially in abrasive formations where wear is accelerated.
Customization and Adaptability
The modular nature of sleeve stabilizers allows for greater customization. Operators can adjust the stabilizer's outer diameter by simply changing the sleeve, enabling quick adaptation to varying hole sizes or formation changes without pulling the entire bottomhole assembly. This flexibility is particularly valuable in complex drilling scenarios where hole conditions may change unexpectedly.
Integral blade stabilizers, while less adaptable, offer consistent performance in their designed hole size. Their fixed configuration ensures reliability and predictability, which can be advantageous in well-defined drilling programs where conditions are expected to remain constant.
Cost-Effectiveness: Long-Term ROI Analysis
Initial Investment vs. Operational Costs
When evaluating the cost-effectiveness of sleeve stabilizers versus integral blade stabilizers, it's essential to consider both the initial investment and long-term operational costs. Sleeve stabilizers typically have a higher upfront cost due to their more complex design and the need for interchangeable parts. However, this initial investment can be offset by lower operational costs over time.
Integral blade stabilizers often have a lower initial purchase price, making them attractive for projects with tight budgets. However, their lack of replaceable components can lead to higher long-term expenses, especially in environments that cause rapid wear.
Maintenance and Replacement Considerations
The maintenance requirements for sleeve stabilizers are generally lower than those for integral blade stabilizers. The ability to replace worn sleeves without changing the entire tool reduces both maintenance time and costs. Additionally, the modular design allows for easier inspection and cleaning of individual components, potentially extending the overall life of the stabilizer.
Integral blade stabilizers, while requiring less frequent maintenance due to their simpler construction, may incur higher costs when replacement is necessary. The entire unit must be replaced once the blades wear beyond acceptable limits, which can be a significant expense, especially for larger diameter stabilizers.
Inventory Management and Logistics
From an inventory management perspective, sleeve stabilizers offer distinct advantages. A single mandrel can be used with multiple sleeve sizes, reducing the need to stock a wide range of complete stabilizers for different hole sizes. This versatility can lead to significant savings in inventory costs and simplify logistics, particularly for operations spanning various well sizes or types.
Integral blade stabilizers, conversely, require maintaining a separate inventory for each hole size, which can increase storage costs and complicate supply chain management. However, their simpler design may result in fewer spare parts to manage overall.
Choosing the Right Stabilizer: 4 Crucial Factors
1. Formation Characteristics
The geological formation being drilled plays a crucial role in stabilizer selection. Sleeve stabilizers are often preferred in formations with varying hardness or abrasiveness, as the sleeves can be easily changed to match specific formation requirements. Their adaptability allows for optimized performance across different lithologies within the same well.
Integral blade stabilizers may be more suitable for homogeneous formations where consistent performance is expected throughout the drilling process. Their robust design can withstand the rigors of hard formations, providing reliable stability and hole quality.
2. Well Profile and Trajectory
The well's profile and trajectory significantly influence stabilizer choice. Sleeve stabilizers offer advantages in directional drilling applications, particularly in wells with multiple trajectory changes. The ability to adjust stabilizer diameter by changing sleeves allows for better control over the build rate and turn radius without tripping out of the hole.
Integral blade stabilizers are often preferred in straight hole sections or in wells with a consistent trajectory. Their fixed geometry provides consistent centralization, which can be beneficial in maintaining a straight wellbore or controlling deviation in long horizontal sections.
3. Operational Flexibility Requirements
Operations requiring frequent changes in stabilizer size or configuration benefit greatly from the use of sleeve stabilizers. This flexibility is particularly valuable in exploration wells or in fields with limited historical data, where the ability to adapt to unexpected conditions can save significant time and resources.
For well-defined drilling programs with consistent hole sizes and known formation characteristics, integral blade stabilizers may offer sufficient performance without the need for the added flexibility of sleeve designs.
4. Budget and Long-term Cost Projections
While initial costs are important, long-term budget considerations should guide the choice between sleeve stabilizers and integral blade stabilizers. Projects with tight initial budgets may lean towards integral blade stabilizers due to their lower upfront costs. However, operations anticipating high wear rates or frequent size changes should consider the potential long-term savings offered by sleeve stabilizers.
It's crucial to project the total cost of ownership over the expected life of the drilling campaign, including factors such as replacement frequency, inventory management, and potential downtime costs associated with each stabilizer type.
Conclusion
The choice between a sleeve stabilizer and an integral blade stabilizer depends on a complex interplay of factors including formation characteristics, well design, operational flexibility, and budget constraints. While sleeve stabilizers offer superior adaptability and potential long-term cost savings, integral blade stabilizers provide robust performance in consistent drilling conditions.
As drilling technologies continue to advance, the importance of selecting the right stabilizer for each specific application becomes increasingly critical. By carefully considering the factors outlined in this comparison, drilling engineers and project managers can make informed decisions that optimize performance, reduce costs, and enhance overall drilling efficiency.
Call to Action
At WELONG, we understand the complexities of choosing the right drilling equipment for your specific needs. Our team of experts specializes in providing tailored solutions, including high-quality sleeve stabilizers designed to meet the demanding requirements of modern oilfield operations. With over 20 years of experience in the industry, we offer:
- Customized stabilizer solutions to match your unique drilling challenges
- A wide range of hardfacing options for enhanced wear resistance
- ISO 9001:2015 and API 7-1 certified manufacturing processes
- Comprehensive quality control measures ensuring product reliability
- Flexible transport options and terms to suit your logistics requirements
Don't let stabilizer selection become a bottleneck in your drilling operations. Contact WELONG today to discuss how our sleeve stabilizers can optimize your drilling performance and reduce overall costs. Our dedicated team is ready to provide expert advice and support tailored to your specific project needs.
For more information or to request a quote, please email us at oiltools15@welongpost.com. Let WELONG be your partner in achieving drilling excellence.
