Advantages of Tricone Bits in Harsh Environments
Geothermal drilling is tough, with hard rock, abrasive formations, high temperatures, and difficult downhole conditions. These elements provide extra stress on the cutting structure, bearings, seals and other parts of a drill bit. A well chosen tricone bit may provide a realistic means to handle these drilling circumstances.
Durability in High-Temperature Conditions
Depending on the resource and well design, some geothermal wells may exceed 300°C. These temperatures may also create extra stress on various components, notably the bearing and seal systems.
In high temperature geothermal drilling, the whole design of the bit, and not only the cutting structure, should be considered. Material, bearing arrangement, lubrication, sealing and the predicted working conditions should be taken into account when using a tricone bit for a geothermal application.
Therefore, a suitable bit must be chosen according to the real temperature range and the predicted circumstances of drilling in the well.
Resistance to Abrasive Formations
The abrasive rock in geothermal formations will cause accelerated wear to the cutting structure and gauge area. Tungsten carbide inserts are very robust and wear resistant and are often used in roller-cone bits to drill tougher formations.
The bit’s interaction with the formation depends on the insert’s shape, size, spacing, and general cutting structure. The best design is not the hardest insert available, but one that provides a balance between rock-breaking ability and wear resistance, depending on the formation in question. With the right configuration, this balance is achievable.
Adaptability to Changing Formations
As drilling advances, a geothermal well may penetrate strata of varying hardness and abrasiveness. Tricone bits are offered with varied cutting structures so that the bit may be suited to the formation in which it is to be used.

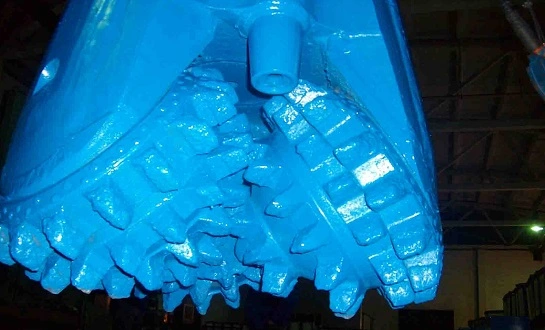

A milled tooth shape may be useful for somewhat soft formations. Tungsten carbide inserts may need a more wear resistant cutting structure for harder formations. The decision to be made must be the proper one and must be based on geological facts and the experience of drilling in the region where the drilling is to take place.
Optimizing Drilling Performance: Tricone Bit Selection
Selecting the appropriate tricone drill bit is a key component of geothermal drilling plans. Bit performance relies on the matching of the cutting structure, size, bearing system and hydraulic design to the projected drilling circumstances.
Formation Evaluation
Bit selection should be preceded by formation assessment. Available geological and drilling information may be used to estimate the predicted lithology, hardness, abrasiveness and variations in formation along the intended well route.
This information assists the drilling engineer in determining whether a milled-tooth or a tungsten carbide insert arrangement is more suited. It may also affect the recommended cutting structure and operation settings.
Operators should not pick a bit based on nominal formation classification alone, but should take into account the actual rock types anticipated in the well and any appropriate drilling data from offset wells.
Bit Size and Design Considerations
The tricone drill bit diameter should be the same as the intended wellbore and casing program. The bit size utilised in a project varies on the well design and drilling stage, therefore the bit should be chosen for the desired hole diameter rather than assuming one size fits all geothermal applications.
Other aspects in bit design include cutting structure, cone offset, gauge protection, nozzle arrangement and the overall hydraulic system.
These factors influence the interaction of the bit with the formation and the delivery of drilling fluid to the bottom of the hole. The right mix relies on formation features, drilling factors and the needs of the given well.
Bearing Type Selection
Bearing system is a significant factor in tricone bit selection, especially in geothermal wells where temperature may impose extra demands on seals, lubrication and bearing components.
Sealed bearing systems may be useful to prevent internal components from drilling-fluid contamination under the design circumstances. Open-bearing arrangements offer distinct operating characteristics, which may be explored for certain applications.
There is no single arrangement that fits automatically all high temperature geothermal wells. Selection should be based on consideration of Temperature, Drilling fluid, Expected operation circumstances, Formation characteristics and Bit design of the manufacturer.
Cost-Efficiency: Tricone Bits vs. Alternative Technologies
The economics of geothermal drilling are influenced by various aspects including drilling duration, bit life, trip frequency, formation behaviour and rig performance. In formations where the drilling circumstances meet the cutting structure and operating properties of the tricone drill bit, tricone bits may be a useful choice.
Comparisons to other technologies like PDC bits should be undertaken on a formation and drilling program basis rather than presuming one bit type would always deliver superior economics.
Initial Investment and Longevity
The economic worth of a bit is not only the cost of buying a bit. Bit life, penetration performance, trips and the time necessary to change a worn bit all impact the cost of drilling.
A tricone bit that will provide satisfactory drilling performance over the projected interval may be used to eliminate the requirement for premature excursions. But the real bit life is a function of formation abrasiveness, hardness, drilling parameters, bit design and downhole circumstances.
That is why bit selection should be based on predicted footage and drilling time as well as initial purchase price.
Drilling Rate Comparison
Depending on formation and drilling settings, tricone and PDC bits might behave differently. It is not true that tricone bits always have a better rate of penetration than PDC bits for geothermal applications.
In certain hard or abrasive formations, roller-cone shapes may provide helpful rock-breaking and wear properties. In other forms PDC technology may provide comparable or enhanced penetration performance .
So, the right comparison should take into account formation hardness, abrasiveness, bit wear, WOB, rotary speed, hydraulics, vibration and the predicted drilling interval.
Versatility and Reduced Inventory
Tricone bits come in many various cutting structures and combinations, so operators may choose items for varied forming circumstances.
This versatility may assist in simplifying bit selection across drilling programs that meet different lithologies. But this should not be taken to mean that a lower stock is always an advantage. The number and kind of bits needed still rely on the projected geology, well design and drilling timeline and availability of appropriate combinations.
A viable inventory plan has to reconcile formation uncertainty with the necessity for the right bit on hand when drilling circumstances change.
Conclusion
Tricone bits may be very useful in geothermal drilling if the geology and operating circumstances are suited for roller-cone technology. The bit size, bearing design, gauge protection and hydraulics are selectable according to the well needs.
For high-temperature or abrasive geothermal applications, bit selection should be based on the whole drilling environment, not on temperature or formation hardness. The choice of a tricone drill bit should be based on formation features, estimated stresses, drilling parameters, bearing needs and hydraulic conditions.
Call to Action
Choosing the right tricone drill bit for geothermal exploration and other tough drilling applications requires knowing the geology, hole size and anticipated downhole conditions. Welong provides tricone bits from 4 ¾” to 36” in diameter in both milled-tooth and tungsten carbide insert designs to meet a variety of drilling applications.
Bit selection may be keyed to such parameters as formation characteristics, cutting structure, bearing design, gauge protection and hydraulic needs. The goal is to pick a tricone drill bit that is suited for the particular drilling circumstances, not to use the same configuration for all applications.
