What drilling parameters are recommended for taper mills?

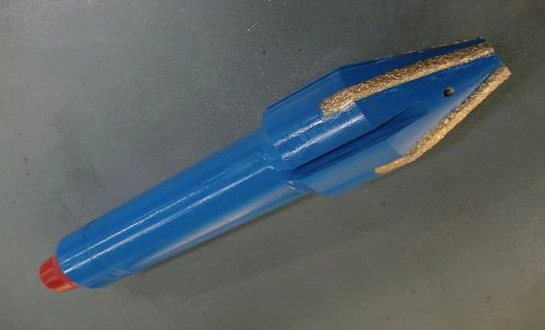

When it comes to optimizing drilling operations with taper mills, selecting the right parameters is crucial for efficiency and tool longevity. Taper mills are specialized tools designed for milling fish, repairing collapsed casings, and shaving off cement or corroded parts in casings. To achieve optimal performance, drilling engineers must carefully consider factors such as rotary speed, weight on bit (WOB), and fluid dynamics. Generally, for taper mills, a moderate rotary speed of 60-120 RPM is recommended, coupled with a WOB of 5,000-15,000 lbs, depending on the formation hardness and mill size. Proper fluid circulation is essential, typically maintaining a flow rate of 300-500 GPM to ensure adequate cooling and debris removal. It's important to note that these parameters may vary based on specific well conditions and taper mill design. Regular monitoring and adjustment of these parameters during operation can significantly enhance the milling process, leading to improved well integrity and reduced downtime.

​​​​​​​

General Overview of Taper Mill Applications

Taper mills play a vital role in various drilling and well maintenance operations. These versatile tools are primarily used in the oil and gas industry for tasks such as:

Fishing Operations

Taper mills excel in retrieving lost or stuck equipment from wellbores. Their tapered design allows for gradual engagement with fish, reducing the risk of further complications during retrieval.

Casing Repair

When casings collapse or become damaged, taper mills can effectively reshape and smooth out the affected areas, restoring the well's integrity.

Cement and Scale Removal

Accumulated cement or scale can restrict flow and compromise well performance. Taper mills efficiently remove these deposits, restoring optimal production conditions.

The effectiveness of taper mills in these applications largely depends on the selection of appropriate drilling parameters. By carefully considering factors such as formation characteristics, well depth, and specific tool design, operators can maximize the efficiency and safety of taper milling operations.

Key Dimension: Optimization of Drilling Parameters

Optimizing drilling parameters for taper mills is a complex process that requires a deep understanding of both the tool's capabilities and the wellbore conditions. Here are some key considerations for parameter optimization:

Rotary Speed

The rotary speed, measured in revolutions per minute (RPM), significantly impacts the milling efficiency and tool wear. For taper mills, a range of 60-120 RPM is typically recommended. Lower speeds are often preferred in harder formations to prevent excessive wear, while higher speeds can be employed in softer formations for faster material removal.

Weight on Bit (WOB)

The applied weight on bit directly affects the rate of penetration and the tool's cutting action. For taper mills, a WOB range of 5,000-15,000 lbs is common, with the specific value depending on the mill size and formation hardness. It's crucial to balance the WOB to achieve efficient cutting without causing premature tool wear or damage.

Hydraulics

Proper fluid circulation is essential for cooling the taper mill and removing debris from the cutting area. A flow rate of 300-500 GPM is typically recommended, but this can vary based on wellbore size and depth. Maintaining adequate hydraulic horsepower at the bit is crucial for effective milling operations.

By carefully optimizing these parameters, drilling engineers can significantly enhance the performance and longevity of taper mills, leading to more efficient and cost-effective operations.

Key Dimension: Mill Geometry and Material Hardness

The geometry and material composition of taper mills play a crucial role in their performance and durability. Understanding these aspects is essential for selecting the right tool and optimizing drilling parameters.

Taper Angle

The taper angle of the mill significantly influences its cutting efficiency and ability to navigate through restrictions. A typical taper angle ranges from 7 to 15 degrees, with steeper angles providing more aggressive cutting action but potentially less stability. The choice of taper angle depends on the specific application and wellbore conditions.

Cutting Structure

The cutting structure of taper mills can vary, including straight blades, spiral blades, or a combination of both. Spiral blades often provide smoother operation and better debris removal, while straight blades offer more aggressive cutting action. The choice of cutting structure should be based on the formation characteristics and the specific milling objectives.

Material Hardness

The hardness of the taper mill's material is crucial for its durability and cutting efficiency. High-grade tungsten carbide is commonly used for its excellent wear resistance and ability to maintain a sharp cutting edge. The hardness of the mill should be selected based on the expected formation hardness to ensure optimal performance and tool life.

Interdimensional Relationships: Rate of Penetration and Tool Life

Understanding the interdimensional relationships between drilling parameters, rate of penetration (ROP), and tool life is crucial for optimizing taper mill operations.

ROP vs. Tool Life Trade-off

There's often a trade-off between achieving a high ROP and maximizing tool life. Higher WOB and rotary speeds can increase ROP but may lead to accelerated tool wear. Finding the optimal balance is key to cost-effective operations.

Impact of Hydraulics on ROP and Tool Life

Proper hydraulics not only improve ROP by efficiently removing cuttings but also extend tool life by providing adequate cooling. Insufficient fluid flow can lead to bit balling and premature tool failure, while excessive flow may cause erosion of the cutting structure.

Formation Influence

The characteristics of the formation being milled significantly impact both ROP and tool life. Harder formations generally result in lower ROP and increased tool wear, necessitating adjustments to drilling parameters to maintain efficiency.

Comprehensive Operational Guidelines for Field Personnel

To ensure safe and efficient taper mill operations, field personnel should adhere to the following guidelines:

Pre-Operation Checks

Before commencing milling operations, thoroughly inspect the taper mill for any signs of damage or wear. Verify that all components are securely fastened and that the tool is properly assembled according to manufacturer specifications.

Monitoring and Adjustment

Continuously monitor key parameters such as torque, WOB, and ROP during milling operations. Be prepared to make real-time adjustments to optimize performance and prevent tool damage. Pay close attention to sudden changes in these parameters, as they may indicate encountering different formation types or potential issues.

Safety Protocols

Adhere to all safety protocols and wear appropriate personal protective equipment (PPE) during taper mill operations. Be aware of potential hazards such as high-pressure fluids and rotating equipment. Maintain clear communication with all team members throughout the operation.

Conclusion

Optimizing drilling parameters for taper mills is a complex but crucial aspect of efficient well maintenance and fishing operations. By carefully considering factors such as rotary speed, weight on bit, and hydraulics, while also taking into account the tool's geometry and material properties, operators can significantly enhance the performance and longevity of taper mills. The interdimensional relationships between these parameters and their impact on rate of penetration and tool life underscore the importance of a holistic approach to parameter optimization. By following comprehensive operational guidelines and maintaining a focus on safety, field personnel can ensure successful taper milling operations that contribute to improved well integrity and productivity.

FAQ

1. What is the ideal rotary speed for taper mills?

The ideal rotary speed for taper mills typically ranges from 60 to 120 RPM. However, the specific speed should be adjusted based on formation hardness and mill design. Softer formations may allow for higher speeds, while harder formations may require lower speeds to prevent excessive wear.

2. How does weight on bit (WOB) affect taper mill performance?

Weight on bit significantly impacts taper mill performance. A WOB range of 5,000-15,000 lbs is common, with the specific value depending on mill size and formation characteristics. Higher WOB can increase the rate of penetration but may also lead to accelerated tool wear. It's crucial to find the optimal balance for each operation.

3. What are the signs that taper mill parameters need adjustment during operation?

Signs that taper mill parameters need adjustment include sudden changes in torque, fluctuations in the rate of penetration, excessive vibration, or unusual noises. If you notice any of these signs, it's important to reassess and adjust the drilling parameters promptly to prevent tool damage and ensure efficient operation.

Contact WELONG for Expert Taper Mill Solutions

At WELONG, we specialize in providing high-quality taper mills and expert guidance on optimizing drilling parameters. Our team of experienced professionals understands the complexities of well maintenance and fishing operations. We offer customized solutions tailored to your specific needs, ensuring maximum efficiency and tool longevity. With our ISO 9001:2015 and API 7-1 certifications, you can trust in the quality and reliability of our products. Don't let suboptimal drilling parameters hinder your operations. Contact WELONG today for superior taper mill solutions and unparalleled customer support. Reach out to us at oiltools15@welongpost.com to discuss how we can enhance your drilling operations as your trusted Taper Mill supplier.
