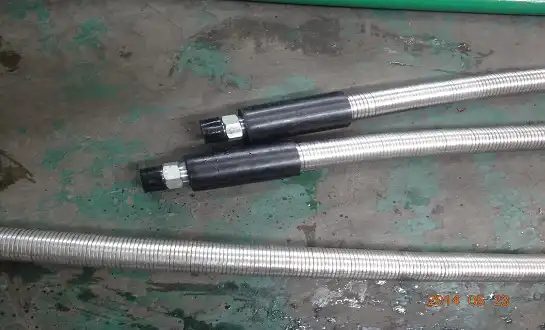

Common Uses of BOP Hoses in Drilling Rigs

BOP lines connect blowout preventers to hydraulic control systems, which is one of their most important jobs in drilling. During the digging process, these special lines allow for well control, emergency shutoffs, pressure checking, and the flow of hydraulic fluid. Knowing the different uses of BOP hose systems helps workers keep safety standards high while getting the best drilling results in a variety of operating situations.

Understanding the Role of BOP Systems in Modern Drilling

In oil and gas drilling, blowout preventers are the most important part of well control safety. For these huge steel buildings to work well during important times, they need solid hydraulic links. When sudden increases in pressure put drilling activities at risk, the hydraulic system has to move right away to turn on safety valves and emergency shutdown devices. Special high-pressure hose connectors are the only way for surface control systems and downhole blowout preventers to talk to each other. These joints have to be able to handle harsh circumstances and keep working properly during long digging efforts. These days, drilling needs hose systems that can work in temperatures ranging from -40°C to +121°C and pressures greater than 10,000 PSI. Different parts of the BOP stack are securely connected to each other using hydraulic joints and hose ties. The safety of drilling activities depends on how reliable these links are, which is why choosing the right hose is so important for drilling companies and equipment makers.

Primary Hydraulic Control Applications

Well Control Emergency Response

When there is an emergency, hydraulic systems must immediately activate leak preventers. Within seconds, hydraulic pressure from surface control panels is sent to ram preventers and circular preventers through BOP pipes. This ability to respond quickly stops methane leaks that get out of hand and could cause huge blowouts. Even if the features of the drilling fluid change or the wellbore conditions become unstable, the hydraulic system has to keep the pressure fixed. High-quality hose fittings make sure that the pressure is always transferred, even if outside factors change the drilling environment.

Routine BOP Function Testing

For blowout preventer systems to be tested regularly, they need to have effective hydraulic links to make sure that all of the safety parts are working properly. BOP lines allow procedures for pressure tests that make sure each ram and circular preventer works as it should. During digging, these tests are usually done every 14 to 21 days. As part of the testing process, preventers are cycled through full open and closed processes while pressure reactions are watched. The hydraulic hose system must keep working the same way through all of these testing rounds without losing its ability to transfer pressure.

Choke and Kill Line Operations

To keep wellbore pressure under control during tough drilling conditions, choke and kill operations need precise hydraulic control. BOP lines connect downhole safety systems to surface choke valves. This lets workers control the flow of drilling fluid and keep the right pressures in the well. During these procedures, high-pressure fluids are often pumped through special routes for long periods of time. The hose system has to be able to handle changing pressure all the time while keeping links that don't leak during the process.

Specialized Drilling Applications

Deep Water Drilling Operations

Offshore drilling sites are tough for hydraulic systems because they are exposed to the elements and have long hose runs. BOP lines must work effectively even when they are exposed to saltwater, when temperatures change, and when waves keep moving the platform. For subsea blowout preventers to work, hydraulic control lines must go from ships on the top to tools on the bottom. In these cases, special hose designs are needed that are more resistant to rust and flexible enough to allow for changing platform positions. Marine environments put extra stress on hose systems because they are constantly bent and exposed to harsh chemicals. Armor-type structures offer better safety while still allowing for the freedom needed for offshore activities.

High-Temperature Drilling Environments

Deep oil and gas research and geothermal digging put tools through high temperatures that can damage normal hydraulic systems. When it comes to high-temperature uses, BOP tubes use special polymer materials that keep their flexibility and resistance to pressure even in tough heat conditions. The high-molecular polymer structure makes it possible for reliable performance in situations where regular rubber materials would fail. These high-tech materials keep their qualities even at very different temperatures. They can also fight fire and keep heat in.

Sour Gas and Corrosive Environment Applications

Wells that have hydrogen sulfide and other toxic chemicals in them need special hydraulic systems that can handle chemical attack. In these situations, BOP hoses have better chemical protection to keep them from breaking down when they come into contact with drilling fluids and formation gases that are toxic. The materials used to make the inside of these tubes were chosen to be resistant to sulfur stress cracks and other types of chemical breakdown. This special design makes sure that it works reliably during the drilling operation, even when it's exposed to harsh chemicals.

Pressure Testing and Quality Assurance

System Pressure Verification

Testing hydraulic systems for pressure on a regular basis makes sure that all safety-critical parts work properly. BOP lines allow for thorough testing routines that check the stability of the whole system, from safety tools downhole to control panels on the surface. For these kinds of tests, the whole system is usually pumped up to working pressure, and the pressure is watched to see if it drops. For pressure tests to work, the hose systems must keep working the same way through multiple pressure rounds. The general safety system will be reliable for a long time if it can stand up to these testing methods without breaking down.

Leak Detection and Monitoring

By keeping an eye on the hydraulic system pressure all the time, leaks or system degradation can be found early on. BOP lines that can be monitored give workers real-time information on how the system is working, so they can fix problems before they become safety issues. Modern tracking systems can pick up on small changes in pressure that could mean that problems are starting to appear with hose joints or links. This early warning feature keeps systems from failing without notice during important activities.

Mud Pump and Circulation System Integration

High-Pressure Fluid Circulation

For drilling mud movement to work, the hydraulic lines must be strong enough to handle high-pressure drilling fluid for long periods of time. In circulation systems, BOP Hoses must be able to handle constant pressure from mud pumps while still being flexible enough to allow for equipment placement and repair access. To get the best drilling results, the circulation system integration needs to take pressure ratings and flow factors into careful account. The right choice of hoses allows drilling fluid to flow efficiently while keeping the safety system working.

Drilling Fluid Property Management

When the features of drilling fluid change, it affects how well hydraulic systems work and requires flexible hose systems. However, BOP lines must keep working the same way even if the density, thickness, or chemical makeup of the drilling fluid changes during the process. Being able to deal with different features of drilling fluids makes sure that the system stays reliable even as drilling conditions change during the well-building process.

Maintenance and Operational Considerations

Regular upkeep and checking of BOP lines ensures that they will keep working well during long drilling efforts. Visual checks find problems like broken covers, corroded fittings, or too much wear that could affect how well the system works. The right way to store and handle hoses will make them last longer and keep their performance. Controlling the temperature while storing rubber parts keeps them from going bad too quickly, and using the right support while installing them keeps them from getting damaged from being bent or twisted too much. Scheduling replacements based on operating hours and pressure cycles helps keep key processes from failing without warning. Regularly replacing hose sections cuts down on downtime and keeps the safety system working properly.

Benefits of Advanced BOP Technology

Modern BOP tubes have better performance features that make drilling safer and more efficient overall. Modern materials are better at resisting chemicals and staying flexible over a wide range of temperatures. These changes make it possible to drill in places that were hard to reach before. Buildings that are resistant to fire protect hydraulic systems in case of an emergency, keeping the system working even when other equipment fails. In critical situations, this improved safety feature gives people and tools even more protection. Better materials and more advanced manufacturing methods work together to make things that last longer and need less upkeep. These changes lower the costs of running the business and make the digging effort safer at the same time.

Conclusion

Because they are reliable and can be used in many situations, BOP Hoses are essential to modern drilling operations. These specialized parts make it possible to drill safely and efficiently in a wide range of operating settings, from controlling wells in an emergency to checking pressure regularly. As workers, knowing the different uses of hose systems helps them choose the right ones for their needs. Advanced hydraulic systems are becoming more and more important for keeping operations safe and efficient in tough settings as drilling technology keeps getting better.

FAQ

1. What pressure ratings are available for BOP hydraulic systems?

BOP hoses typically handle working pressures up to 10,000 PSI, with custom configurations available for higher pressure applications. The specific pressure rating depends on the drilling environment and safety system requirements.

2. How often should BOP hoses be replaced during drilling operations?

Replacement intervals depend on operating conditions, but most operators schedule replacement based on operational hours, pressure cycles, or visual inspection results. Typical replacement occurs every 6-12 months in normal drilling conditions.

3. What temperature ranges can modern BOP hoses handle?

Advanced BOP hoses operate reliably from -40°C to +121°C, with specialized constructions available for extreme temperature applications. High-molecular-weight polymer types offer enhanced temperature resistance compared to standard constructions.

Partner with WELONG for Reliable BOP Solutions

WELONG delivers premium BOP hose assemblies designed for demanding drilling applications worldwide. As a trusted BOP hose manufacturer with over 20 years of experience, we provide comprehensive quality control and timely delivery to support your operational requirements. Our ISO 9001:2015 and API 7-1 certifications demonstrate our commitment to excellence in oilfield equipment manufacturing. Contact our team at oiltools15@welongpost.com to discuss your specific hydraulic system needs.
