Die Collar Guide: Materials, Sizes & Applications

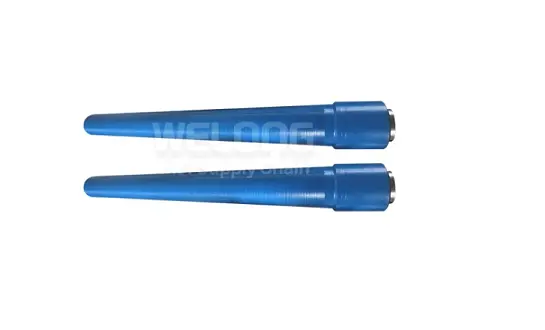

​​​​​​​​​​​​​​Die collar tools are important pieces of external fishing gear used in oil and gas operations. They are designed to grab the outside diameter of stuck tube objects like drill lines and casing. Specialized cutting threads made of high-strength metal materials are on these tools. They come in different sizes to fit different pipe sizes. Die collars can be used in a wide range of drilling situations, from retrieving dropped tools to clearing pipes that are stuck in difficult downhole conditions. Knowing the exact specs of the material, the right sizes, and how to use it correctly will help you get the best fishing results while reducing costs and downtime.

​​​​​​​

Understanding Die Collar Construction and Materials

Materials for Die Collar Construction

Modern designs for die collars focus on making them last and work reliably in tough downhole conditions. High-grade alloy steel is usually used by manufacturers for building because it has better tensile strength and wear resistance. The internal cutting threads have tips that have been sharpened so that they can bite into the outside of things.

Common Materials and Their Benefits

For normal uses, carbon steel is still the most common choice of material. It is very easy to work with this material, and it is still hard enough for thread-cutting tasks. Heat treatment methods make the cutting parts stronger, which greatly increases the tool's useful life.

Stainless Steel Options for Harsh Environments

Different types of stainless steel are better at resisting rust in places with hydrogen sulfide or carbon dioxide. The prices for these specific materials are higher, but they work better in harsh wellbore circumstances.

Manufacturing and Quality Control

Precision cutting is used in the production process to get close specs on the sizes of the parts. Quality control methods make sure that the cutting shape and thread pitch stay the same from one production run to the next. Surface processes like nitriding or chrome finishing make things even more resistant to wear and tear and make them last longer.

Die Collar Sizing Standards and Specifications

Specific measurements are needed to make die collars according to industry norms. API Specification 7-1 gives detailed instructions on how to measure and rate the performance of fishing tools. These standards make sure that tools made by different companies and drilling operators will work with each other.

Size and Thread Pitch Considerations

Sizes range from 2-3/8 inches to 13-3/8 inches in diameter, which is a good range for most tube goods found in drilling activities. The thread pitch changes based on the size of the pipe. Finer threads are better for holding things with a smaller width.

Wall Width and Strength Balance

The requirements for wall width find a balance between how well the tool cuts and how strong it is. Thinner walls make it easier to cut threads, but they may not be as strong when heavy loads are applied. Engineering formulas figure out the best width ratios for different uses.

Length and Handling Factors

The length is usually between 12 and 36 inches, but it depends on what it will be used for. Longer tools have a bigger touch area, but they need to be handled carefully when they are being used. Shorter models are easier to move around in wellbore situations where space is limited.

Impact of Weight on Tool Usage

How tools are used and handled is affected by their weight. Cutting force is higher when die collar systems are heavier, but they need better lifting tools. Lighter options make operations simpler while still performing well enough.

Primary Applications in Oilfield Operations

External Fishing for Stuck Items

The main place where die collar tools are used is in external fishing activities. These things happen when tube items get stuck or fall into the wellbore and stop the drilling from going further. When internal fishing methods don't work or aren't realistic, the external connection mechanism comes in very handy.

Drill Pipe Salvage and Recovery

Die collar technology is often used in drill pipe salvage activities. When drill strings are split into parts, the outside is often smooth, making it hard to fish with normal gear. When die collar threads are cut, they make safe contact points that allow for successful recovery.

Casing Repair in Wellbore

In another common use case, casing repair comes up. When broken or collapsed wall pieces block wellbore entry, fishing methods from outside the well are needed. Die collar tools can grab onto parts of the case that aren't destroyed so that they can be removed one by one.

Tube Operations and Workovers

Having a die collar during workovers is helpful for production tube operations. Tubing ropes that are stuck often don't want to be pulled with normal forces, so they need to be engaged from the outside. Because the collars are so flexible, they can be used with a wide range of tube types and circumstances.

Recovery of Completion Tools

Recovery of completion tools makes die collars useful for more than just tube goods. Some downhole tools, like packers, bridge plugs, and others, need to be fished from the outside. Different types of die collars are used to solve these specific recovery problems.

Material Selection Considerations for Different Environments

The environment has a big impact on the choice of material for die collar uses. Extreme temperatures, toxic fluids, and mechanical pressures all play a role in figuring out the best material specs for a job.

Materials for High-Temperature Environments

Places with high temperatures need materials that are more stable at high temperatures. It is possible for chromium-molybdenum steel alloys to keep their strength at high temperatures and not break down. In geothermal or deep well uses, these materials are very important.

Handling Corrosive Environments

Hydrogen sulfide-containing corrosive surroundings need special handling of materials. Standard carbon steel tools are in great danger from sulfide stress cracking. These problems can be solved with resistant metals or protective coatings that keep the system working well.

Surface Treatments for Erosion Resistance

Mechanical erosion speeds up tool wear in rough situations. Hardened surfaces don't get worn down by abrasions and keep their cutting edge sharpness. Surface treatments, such as tungsten polishing, make tools last longer in tough conditions.

Balancing Cost and Performance

Cost factors weigh the performance of a material against its ability to meet economic needs. Although premium materials work better, they require a bigger starting investment. Based on expected service life and operating needs, economic research figures out the best material to use.

Installation and Operational Best Practices

Tool Inspection and Preparation

Following the right steps for fitting guarantees a safe and effective die collar release. Before an action, the state of the tool and its ability to fit the target object's dimensions are checked. Transporting and putting together cutting threads doesn't hurt them if they are handled carefully.

Thread Checking and Structural Evaluation

Protocols for thread checking find damage or wear that could affect performance. Gauge checking makes sure that the goal tube goods fit correctly. Cracks or structural flaws that need to be fixed are found by looking at the tool.

Monitoring Operational Factors During Fishing

During fishing activities, operational factors need to be carefully watched. To keep tools from breaking, the amount of force that is applied must stay within the suggested ranges. Rotation speed affects how well the blade cuts, and too fast a rate can cause the blade to wear out too quickly.

Managing Weight and Circulation for Tool Longevity

The weight that is applied affects how well the tool cuts and how long it lasts. Not enough weight makes cutting less effective, and too much weight can cause a catastrophic failure. Best weight values vary on the size of the tool and the qualities of the material being used.

Fluid Circulation for Cutting Efficiency

Circulation methods help get rid of the cuts and other debris that are made during interaction. Keeping the fluid moving properly keeps the cutting sharp and stops the tool from getting clogged. Depending on the shape of the wellbore and the features of the fluid, circulation rates need to be changed.

Maintenance and Quality Control Protocols

Preventative Maintenance for Tool Longevity

Regular repair methods keep die collars working well and extend their useful life. Inspection plans find patterns of wear and possible breakdown modes before they cause problems with operations. It turns out that preventative repair is cheaper than replacing things when they break down.

Thread and Dimension Accuracy Checks

Thread checking looks at the state of the cutting edge and the accuracy of the dimensions. Threads that are worn or broken make cutting less effective and may even stop the machine from working. Throughout the life cycle of a tool, gauge measurements make sure that the dimensions are correct.

Surface Treatment Evaluation and Recoating

Evaluation of surface treatment checks the state of the layer and the quality of the bonding. When coats are damaged, they let the base materials wear out and rust faster. Recoating tools at the right time keeps them working and increases their useful life.

Tracking and Documentation for Performance

Documentation systems keep track of the past of tools and how well they're working. Service records show how often to replace things and how often they need to be maintained. Performance data helps designers choose better materials and make better designs in the future.

Third-Party Testing and Industry Standards

Independent third-party testing services check that tools are in good shape and meet industry standards. Quality assurance standards are improved by testing programs from companies like SGS and DNV.

Choosing the Right Die Collar Supplier for Your Operations

Key Considerations for Supplier Selection

To choose the right die collar provider, you need to carefully consider a number of things that affect business success. Quality of manufacturing, dependability of shipping, and expert help all have a big effect on how well a job turns out and how much it costs.

Certifications and Compliance with Standards

Certification requirements make sure that safety rules and business standards are followed. API 7-1 approval shows that you meet set performance standards. Having ISO 9001 recognition means that your quality management system is strong and your manufacturing processes are reliable.

Manufacturing Precision and Delivery Reliability

Product quality and shipping times are based on how well a company can make things. Precision measurements and smooth surfaces are made possible by high-tech cutting tools. Skilled production teams make sure that quality is always high while also meeting tight delivery dates.

Quality Control for Product Reliability

Quality control methods give people faith in the dependability and performance of products. Full inspections find problems before the goods are shipped. Statistical process control checks that the same things are made on each production run.

Technical Support and Customer Service

Technical support services help people choose the right products and figure out how to use them. Engineering teams with a lot of experience can help with difficult applications by giving useful advice. When customer service is responsive, they quickly handle organizational issues and technical problems.

conclusion

Choosing the right die collar for your oil and gas operations is very important for making sure that external fishing works well and reliably. You can cut down on downtime and improve running costs by learning about the different materials, size standards, and specific uses. A high-quality die collar made from the right materials will last and work well in tough downhole settings, whether you're working with stuck drill pipes, core salvage, or production tubes. If you work with a good die collar provider, you can be sure that the tools you get will meet performance and industry standards.

Partner with WELONG for Premium Die Collar Solutions

WELONG stands as your trusted die collar manufacturer, delivering over two decades of expertise in oilfield equipment solutions. Our ISO 9001:2015 and API 7-1 certifications guarantee superior quality control and industry compliance. Contact our specialists at oiltools15@welongpost.com to discuss your specific die collar requirements today.

References

1. American Petroleum Institute. "API Specification 7-1: Specification for Rotary Drill Stem Elements." 2019 Edition.

2. Mitchell, Bill. "Advanced Well Completion Engineering: Theory and Practice of Fishing Operations." Petroleum Engineering Publications, 2018.

3. Rahman, K. and Wilson, A. "Materials Selection for Downhole Fishing Tools in Corrosive Environments." Journal of Petroleum Technology, Vol. 74, No. 3, 2022.

4. Thompson, R.J. "External Fishing Tool Design and Application Guidelines." SPE Drilling & Completion, Vol. 36, No. 2, 2021.

5. Zhang, L. et al. "Heat Treatment Effects on Alloy Steel Performance in Oil and Gas Applications." Materials Science and Engineering Review, Vol. 145, 2020.

6. International Association of Drilling Contractors. "Fishing Operations Best Practices Manual." 3rd Edition, 2021.
