Ram BOP Guide: Types, Rams, and Sealing Methods

In oil and gas operations, the ram blowout preventer is one of the most important safety parts of the well control system. This complete guide talks about the main types of ram BOPs, the different ways that rams can be set up, and the latest closing technologies that make sure wellhead safety is reliable. Knowing about these processes helps people who work in drilling make smart choices about what tools to use, how to keep them in good shape, and how safe it is to do their jobs, both on land and at sea.

​​​​​​​

Understanding Ram Blowout Preventer Fundamentals

Hydraulic Operation and Sealing Mechanism

For rapid wellbore closing during drilling activities, the ram blowout preventer is a high-tech valve system that is run by hydraulics. Instead of flexible parts like circular preventers do, ram BOPs use mechanical close systems that make metal-to-metal touch better with the help of rubber sealing parts.

Structural Design and Functional Layout

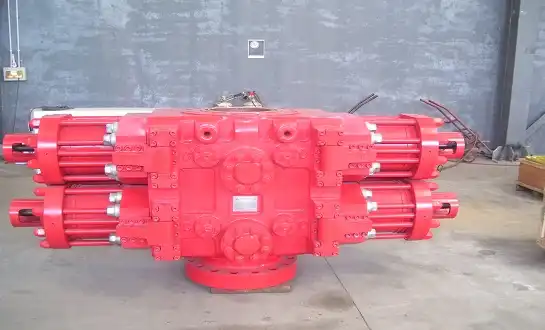

The bodies of these devices are a unique square shape, with a vertical hole for pipes and horizontal ram openings. Powerful cylinders are turned on by the hydraulic control system to move ram blocks horizontally toward the center of the wellbore. This way of designing puts mechanical reliability over versatility. This makes ram BOPs perfect for high-pressure situations where strong sealing is very important.

Material Strength and Pressure Resistance

Modern designs for ram blowout preventers use high-tech materials and engineering concepts to survive very high pressures downhole. The body is usually made of high-grade steel metals that can handle working pressures between 2,000 and 20,000 psi, based on the needs of the application.

Essential Types of Ram Blowout Preventers

Pipe Ram Configurations

Most ram blowout preventers are pipe rams, which are designed to seal around drill pipes, cases, or tube strings. The rams have half-circle holes that are lined with rubber closing elements that can be adjusted to fit different pipe sizes. Precision cutting makes sure that the parts make good contact with the pipe sides and that the pressure stays the same. With variable hole rams, you can use a wider range of pipe sizes, giving you more options. This flexibility cuts down on the need for supplies and makes operations easier. But sealing may not work as well when used with pipe sizes that are very close to or very far from their planned range.

For certain pipe sizes, fixed hole rams offer the most reliable closing. When processes regularly use standard pipe sizes, these rams give better performance. With the specialized design, there are no more trade-offs that come with changeable setups.

Blind Ram Systems

When there is no pipe in the well, blind rams are special ram blowout preventer parts that are meant to completely seal the wellbore. There are flat closing surfaces on these rams that meet in the middle of the wellbore to make a continuous barrier against formation forces. In well control situations where quick wellbore separation is needed, the blind ram design is very helpful. When other control measures fail, emergency action plans often list blind ram activation as the first way of containment.

Shear Ram Technology

Shear rams are a type of ram blowout preventer that can both cut and seal. With these high-tech methods, the wellbore can be sealed while drill pipes, casings, or other tubulars are cut. Usually, the cutting device uses steel blades that have been sharpened and can cut through a variety of materials that are encountered in drilling. The blades in modern shear rams have complex shapes that make them work best with certain pipe sizes and materials. In some designs, the cutting edges can be replaced so that the slicing works well for longer periods of time.

Ram Block Components and Engineering

Mechanical Design Principles

Every ram blowout preventer method is built around ram block building. The hydraulic pressure on these parts must be huge, and they must stay in the exact right place at all times. The body of the block is usually made of cast steel and has hydraulic connection points and holes for closing elements built right in. For effective force transfer, the mechanical contact between ram blocks and moving cylinders needs to be carefully designed. Connecting mechanisms usually use screw links, pin kits, or combined designs, based on what the maker wants and what the system needs to do.

Sealing Element Technology

When mechanical parts are put together with wellbore contents, elastomeric closing elements connected to ram blocks make the contact very important. These elements have to stay flexible over a wide range of temperatures and not break down chemically when they come in contact with drilling fluids and formation products. Advanced sealing materials have special ingredients added to them that make them more resistant to hydrogen sulfide, carbon dioxide, and other hydrocarbons. The compound choice has a direct effect on how well the ram blowout preventer works and how long it should last.

Advanced Sealing Methods and Technologies

Hydraulic Sealing Systems

Hydraulic pressure keeps the ram block in touch with the wellbore surfaces, which is what does the primary closing in ram blowout preventer systems. No matter how much the wellbore pressure changes, the hydraulic control system keeps the pressure on the ram sections constant. This makes sure that the closing force stays the same. If the main seal fails, the secondary closing devices protect the system again. Often, these systems have different hydraulic lines with their own pressure sources and control valves. When well control is at risk, having redundant closing capabilities increases operational safety gaps.

Metal-to-Metal Contact

Some types of ram blowout preventers use metal-to-metal touch surfaces as their main way of closing. In very high-pressure situations, this method gets rid of the need for flexible materials. Precise drilling makes sure that the surfaces touch properly, and special finishes stop wear and galling. Metal-to-metal contact methods may be used when rubber seals fail or are weakened by emergency sealing measures. When regular closing methods don't work in the worst-case situations, these backup systems are the only way to protect yourself.

Operational Considerations and Safety Protocols

Maintenance and Inspection Requirements

Regular upkeep plans make sure that ram blowout preventer systems keep working at their best for as long as they are used. Typical inspection procedures include checking the pressure, making sure the ram moves correctly, and checking the state of the closing elements. These steps find possible problems before they become dangerous for operations. Changing the sealing elements is an important repair task that needs special tools and methods. Many modern designs have quick-change features that keep equipment running while making sure it is installed correctly. The need for documentation to keep track of repair tasks and the service records of parts.

Testing and Certification Standards

Regular checking of the ram blowout preventer is required by industry guidelines to make sure it is ready for use. Pressure testing makes sure that the seal works properly across a range of pressures, and function testing makes sure that the ram moves and positions correctly. Testing paperwork shows that you are following the rules and gives you trust in your operations. The standards for certification depend on the operating setting and the legal authority. When it comes to testing, offshore applications usually need stricter rules than local ones. Third-party inspection services often check the testing methods and results on their own.

Selection Criteria for Industrial Applications

Pressure Rating Considerations

To choose a ram blowout preventer, you must first accurately determine the pressure grade based on the highest wellbore pressures that are expected. Because of safety concerns, machine rates usually need to be much higher than the expected working pressures. Conditions in the environment and changes in temperature also affect the needs for ratings. Specifications for working pressure must take into account changes in dynamic pressure that happen during drilling. Formation pressure changes, mud weight changes, and operating processes can all lead to pressure jumps that are higher than what can be calculated using steady estimates. Selecting conservative ratings makes sure that there are enough safety gaps.

Connection Compatibility

Different types of connections between ram blowout preventer units and other BOP stack parts need to be carefully checked to make sure they work well together. Connectors with flanges are flexible and easy to repair, while links with studding can handle more pressure. Hub links reduce the height of the stack while keeping the pressure stability. Standardization helps with more than just the original installation. It also helps with upkeep tasks and keeping an inventory of extra parts. API 16A guidelines make sure that parts made by different companies can be used with each other while keeping performance standards.

Cost-Effective Solutions for Drilling Contractors

Economic Performance Analysis

When choosing a ram blowout preventer, the starting costs must be weighed against the long-term costs of running the system. Higher-quality systems usually have better dependability and longer service lives, which lowers the total cost of ownership even though they cost more to buy. Maintenance needs, the supply of extra parts, and service support all have a big effect on total costs. When thinking about operational efficiency, you should think about things like setup time, upkeep times, and uptime measures. When digging equipment breaks down, it costs a lot more than just fixing it. Impacts on productivity and rig downtime often cost more than the cost of replacing the equipment.

Quality Assurance and Reliability

Quality of manufacturing has a direct effect on how well and how long a ram blowout preventer works. Comprehensive quality control methods are used during production to make sure that all kinds of tools work the same way. Performance tests, measurement checks, and material certifications all prove that production standards are met. During the supplier approval process, manufacturing skills, quality systems, and expert support resources are all looked at. When compared to younger companies, established makers usually offer more consistent products and better customer service.

Conclusion

As of now, the ram blowout preventer is still an important part of current well control systems. It provides important safety and security in a wide range of drilling settings. Knowing about the different types, ram setups, and closing methods lets you choose the right tools and get the best results from them. Regular maintenance, the right way to test them, and good production make sure that these systems will protect you when you need them most. Ultimately, spending money on high-quality tools and full-service support pays off by improving safety, dependability, and working efficiency.
