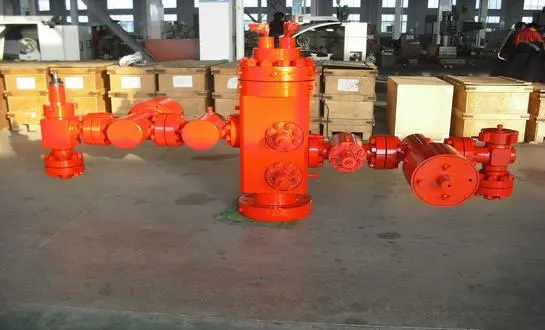

Main Uses of Oil Christmas Trees in Production

The Oil Christmas Tree controls the flow of fuels from deep reserves to processing plants on the surface. It is like the brain of well production. During the whole production process, this important wellhead equipment controls pressure, flow, well intervention access, and safety rules. Knowing what its main uses are helps drilling companies and equipment makers improve extraction processes while still meeting strict safety standards.

Understanding the Oil Christmas Tree System

Core Components and Structural Design

With over two decades of experience in the oil and gas industry, it is clear that Christmas tree valve systems have significantly transformed production practices. Comprising key components such as master valves, wing valves, choke valves, and pressure monitoring tools, these integrated systems are designed to manage complex operational demands efficiently. The wellhead equipment is directly connected to the casing head, creating a secure and controlled environment that prevents unintended leaks while enabling production managers to closely monitor and manage well performance.

Advanced Control and Safety Integration

Modern systems combine hydraulic control systems with valve technology that can be controlled from a distance. This new technology lets operators handle multiple wells from one central control room. This makes things run more smoothly and protects workers from dangerous situations. The blowout preventer technology built into these systems adds another layer of defense against catastrophic breakdowns.

Primary Production Flow Control

Regulating Hydrocarbon Flow and Pressure

Managing the flow rates of hydrocarbons from producing wells is the most basic use of Christmas tree arrangements. Through the wellhead tools and to the processing plants on the surface, the production tube brings oil and gas from downhole rocks. The choke valve settings are changed by operators to keep the best flow rates and storage pressure.

Adapting to Reservoir Changes Over Time

Flow control systems inside these units adapt to changing conditions in the pool as the well's life cycle goes on. Due to high rock pressures, wells often run freely during the early stages of production. As the pressure in the tank drops, workers change the layout of the valves to make room for fake lift systems, such as electric underwater pumps or gas lift valve installations.

Real-Time Monitoring and Performance Optimization

The Oil Christmas Tree valve design lets you watch several flow factors at the same time. Pressure gauges, temperature monitors, and flow measurement tools all give workers real-time information that helps them get the most out of their production rates while also keeping equipment from breaking down due to too high temperatures or pressures.

Well Intervention and Maintenance Access

Supporting Safe Entry for Repair Operations

Configurations that look like Christmas trees are important for getting to wells for well repair tasks. Some of these tasks are cable logging, treating wells with coiled tubing, and putting in or getting out downhole tools. The top master valve acts as a first line of defense, and special lubricator systems make it safe to enter wellbores that are under pressure.

Subsea Control and Remote Operation Capabilities

When it comes to repair operations, subsea Christmas tree systems are very difficult. Remote-operated valve technology lets people on the surface set up valve settings without having to go diving. Integrating a hydraulic control system lets you place valves precisely, even in deep water, where direct access is still not possible.

Enabling Efficient Well Completion Processes

Well-completion tasks depend a lot on how the Christmas tree works. These systems help keep the pressure in check while production tube, downhole safety valve systems, and other finishing tools are being put in place during the initial completion steps. The flexible design lets workers change the way things are set up as needs change over time.

Pressure Management and Safety Control

Maintaining Wellbore Pressure and Structural Integrity

Controlling the pressure is probably the most important part of putting together a Oil Christmas tree. These systems keep the pressure in the wellbore within safe limits and stop leaks that are out of control. Multiple valve barriers make multiple safety systems that keep the well intact, no matter what the working conditions are.

Automatic Shutdown and Downhole Safety Systems

When top control systems fail, the well can be shut down automatically by integrating a downhole safety valve. These devices below the ground respond to changes in hydraulic pressure and close themselves when the pressure in the control line drops below certain levels. This safety system keeps fatal blowouts from happening even when all the surface equipment breaks.

Enhanced Safety Measures for Offshore Operations

Because of the need to protect the environment, offshore drilling activities need better pressure control tools. Subsea wellhead systems have extra safety features like two sets of hydraulic control circuits and the ability to separate in an emergency. These methods make it possible to quickly shut down a well during bad weather or machine problems.

Enhanced Oil Recovery Operations

Supporting High-Pressure Injection Systems

In improved oil recovery projects, such as water injection, gas injection, and heat recovery operations, Christmas tree structures are very important. For high-pressure injection operations, water injection Christmas trees have valves that are set up in a certain way. These systems keep the injection pressures exact and stop crossflow between the injection zone and the output zone.

Optimizing Gas Lift and Flow Efficiency

For gas lift valve processes to work, Christmas trees that support gas injection systems need to be set up in a certain way. Through specialized injection lines, high-pressure gas is pumped into the wellbore. This lowers the density of the fluid in the production tubes and increases flow rates. Both the input gas and the created liquid can be controlled by the Christmas tree structure.

Handling Thermal Recovery and Temperature Stress

Thermal recovery Christmas trees can be used for activities like hot water filling and injecting steam. These specialized systems can handle big changes in temperature while keeping the structure strong. Thermal stress failures are avoided during cycle steam injection operations by using better materials and making valves in a certain way.

Testing and Monitoring Applications

Well Testing and Reservoir Evaluation

Oil Christmas tree systems are used in well tests to measure flow rates, look at pressure buildups, and take samples of fluid. Connecting temporary test equipment to Christmas tree valve ports lets a full well review happen without stopping regular production. These tests give managers of reservoirs important information they can use to make decisions.

Controlled Flow Testing and Data Collection

When the choke valve is adjusted during tests, controlled pressure drops happen, which lets the flow rate to be measured accurately. Testing can be done with chokes of different sizes, which lets you control the wellbore pressure while testing at different flow rates. Data collection tools keep an eye on pressure, temperature, and flow rates to give complete information about how wells are working.

Well Intervention and Production Profiling

For production cutting activities to work, Christmas trees need to be changed so that special tools can be used. Wireline units link through the top Christmas tree section, which lets you use tools downhole while keeping the pressure under control. These operations give thorough output profiles that show where the producing zones are and how well the finish went.

Subsea Production Systems

Deepwater Operations and Remote Control

Deepwater production activities are at the cutting edge of technology when it comes to subsea Christmas tree uses. These systems work in water deeper than 10,000 feet, which calls for high-tech parts and multiple control systems. Remote-operated valve technology lets all important functions be controlled from the surface without any help from a person.

Integrated Well Management and Manifold Systems

Multiple wells are connected to subsea wellhead systems using manifolds. This concentrates output lines before they are sent to facilities on the surface. At each wellhead, a Christmas tree assembly gives each well its own control while also feeding into larger systems for gathering. This setup maximizes output while reducing the need for underwater equipment.

Reliability, Redundancy, and Environmental Protection

All parts need to be more reliable because the underwater environment is so tough. Redundancy in the hydraulic control system makes sure that the system keeps working even if one part fails. When something goes wrong with the equipment, emergency shutdown systems quickly shut down the well to keep the environment from being contaminated.

Fracturing and Stimulation Support

High-Pressure Fracturing System Integration

For hydraulic fracturing to work, special Christmas tree shapes are needed to hold high-pressure pumping equipment. These systems can handle high pressures and have many entry points for injecting fluid for breaking and recovering flowback. When equipment fails during high-pressure treatments, reinforced valve designs keep it from happening.

Controlled Flowback and Equipment Protection

During flowback operations after fracture treatments, the flow control system's skills become very important. Operators slowly raise production rates while keeping an eye on how much sand is being made and how well the equipment is working. Christmas tree valve setups give precise control that lets flowback operations happen safely and without damaging any equipment.

Acid Treatment Compatibility and Material Protection

For acid fracture treatments, Christmas tree parts are used that are made to handle acidic fluids. Specialized coats and materials keep the structure from being damaged by acids while cleaning operations are going on. It is possible to use these devices for both matrix acidizing and acid fracturing.

Conclusion

Because Oil Christmas tree assemblies can be used in so many ways, they are essential to current oil and gas production. These systems are very important for safety and operations, from simple flow control to complicated improved recovery projects. Knowing their main uses helps workers choose the right combinations to get the most out of their production. As technology keeps getting better at making things work reliably and efficiently, Christmas tree devices will stay an important part of all petroleum mining processes around the world.

FAQ

1. What working pressures can Oil Christmas Trees handle?

Christmas tree assemblies accommodate working pressures ranging from 2,000 PSI to 20,000 PSI, depending on application requirements. High-pressure systems utilize enhanced materials and specialized valve designs, ensuring safe operation under extreme conditions. Pressure ratings must exceed maximum anticipated wellhead pressures with appropriate safety margins.

2. How do hydraulic control systems operate in Christmas tree assemblies?

Hydraulic control system integration enables remote valve operation through pressurized fluid circuits. Control panels at surface locations send hydraulic signals to actuators within the Christmas tree assembly. These systems provide precise valve positioning while maintaining fail-safe operation during power losses or control system failures.

3. What maintenance requirements apply to Christmas tree equipment?

Regular maintenance schedules include valve function testing, hydraulic system pressure checks, and safety device verification. Preventive maintenance programs extend equipment life while ensuring reliable operation. Most systems require annual inspections with detailed component evaluations every five years, depending on operating conditions.

Partner with WELONG for Reliable Oil Christmas Tree Solutions

China WELONG stands as a trusted Oil Christmas Tree manufacturer with over 20 years of experience serving global drilling contractors and equipment manufacturers. Our comprehensive quality control processes ensure every Christmas tree assembly meets stringent industry standards while providing reliable performance throughout demanding production operations. Contact our expert team at oiltools15@welongpost.com to discuss your specific wellhead equipment requirements and discover how our proven solutions optimize your production operations.
