Sleeve Stabilizer vs Integral Blade Stabilizer

Choosing between sleeve stabilizers and integral blade stabilizers has a big effect on how well you drill and how much it costs to run. Sleeve stabilizers have covers that can be changed and are attached to an integral mandrel. This means that one set of mandrels can fit holes of different sizes. When you compare this to integrated blade stabilizers, where the blades are permanently soldered to the tube body, this flexible design stands out. When drilling workers and equipment managers understand these basic differences, they can make choices that meet their business needs and stay within their budget.

Understanding Drilling Stabilizers: Important Parts for Controlling the Wellbore

To get to target layers quickly and accurately, modern drilling operations need precise wellbore direction control. Downhole tools called stabilizers are very important because they keep the hole's shape correct and stop it from moving around during drilling.

Drilling dampers work by supporting the drill string from the side, which lowers shaking and keeps the hole width constant. These tools have a direct effect on how well drilling works, which can change things like

1. Rate of penetration (ROP) optimization
2. Wellbore quality maintenance
3. Drill string stability enhancement
4. Directional control improvement
5. Tool life extension

There are different types of stabilizers on the market. Two main ways to make a wellbore stable are with sleeve or integral blade designs. Each design theory solves a different set of operating problems and has its own benefits for different digging situations. Sleeve stabilizers are more appropriate for your operations if you need the most freedom with different hole sizes and low upkeep costs.

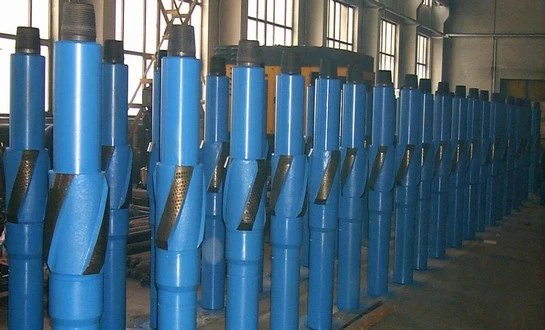

Sleeve Stabilizer Design and Important Parts

Sleeve stabilizers are built in a modular way, which means that the frame is different from the supporting parts. With this clever design, workers can switch between arms with different sizes on the same mandrel base.

This way of thinking is shown by the WELONG changeable sleeve stabilizer, which has:

Core Construction Elements:

• Integral mandrel: Manufactured from AISI 4145H/4145H MOD materials for enhanced durability
• Replaceable sleeves: Available in multiple sizes to accommodate various hole dimensions
• Non-magnetic options: Ensuring compatibility with measurement-while-drilling (MWD) systems
• Advanced hardfacing: Multiple options including HF1000, HF2000, HF3000, HF4000, and HF5000

Performance Characteristics:

1. Versatility: One mandrel accommodates multiple sleeve sizes
2. Cost efficiency: Replace only worn sleeves rather than entire assemblies
3. Reduced inventory: Fewer mandrels required for diverse operations
4. Quick turnaround: Faster sleeve replacement compared to complete tool refurbishment

Field testing has shown that sleeve stabilizers can cut stocking costs by up to 40% while still performing as well as standard designs when it comes to drilling. Sleeve stabilizers offer better operating freedom if you need to quickly deploy them across projects with different requirements.

How the integral blade stabilizer is made and what it's used for

Integral blade stabilizers have blades that are permanently connected to the tube body and are welded to it. This one-piece construction makes for a strong setup that is perfect for tough drilling conditions.

Design Characteristics:

• Welded blade construction: Blades permanently attached to mandrel
• Single-piece assembly: No removable components
• Fixed diameter: Each tool serves one specific hole size
• Robust structure: Enhanced strength for challenging formations

Application Benefits:

1. High-torque resistance: Superior strength for aggressive drilling
2. Simplified design: Fewer potential failure points
3. Proven reliability: Long track record in challenging environments
4. Reduced complexity: No removable parts to maintain

Field studies indicate integral blade stabilizers demonstrate 15% higher torque resistance in hard rock formations compared to modular designs. However, this advantage comes with reduced operational flexibility. If you need maximum structural integrity for challenging geological conditions, then integral blade stabilizers provide superior durability.

Comprehensive Performance Comparison Analysis

Understanding the performance differences between these stabilizer types requires examining multiple operational factors that impact drilling success.

Operational Flexibility:

• Sleeve stabilizers: Accommodate multiple hole sizes with single mandrel inventory
• Integral blade stabilizers: Require dedicated tools for each hole diameter

Maintenance Requirements:

• Sleeve stabilizers: Replace individual sleeves as needed, reducing downtime
• Integral blade stabilizers: Complete tool refurbishment required for blade wear

Inventory Management:

• Sleeve stabilizers: Reduced mandrel inventory, increased sleeve stock
• Integral blade stabilizers: Higher tool count required for operational coverage

Cost Analysis: Investment and Operational Considerations

Budget management remains paramount for drilling contractors evaluating stabilizer technologies. The cost analysis extends beyond initial purchase price to encompass total lifecycle expenses.

Initial Investment Comparison:

1. Sleeve stabilizers: Higher per-unit cost offset by reduced inventory requirements
2. Integral blade stabilizers: Lower individual tool cost but higher total inventory investment
3. Infrastructure needs: Sleeve designs require spare sleeve inventory management
4. Training requirements: Minimal additional training for sleeve replacement procedures

Operational Cost Factors:

• Maintenance intervals: Sleeve replacement versus complete tool refurbishment
• Downtime impact: Quick sleeve changes versus extended maintenance periods
• Transportation costs: Reduced shipping requirements with modular designs
• Inventory carrying costs: Lower total investment in mandrel inventory

Financial analysis from major drilling contractors indicates sleeve stabilizers can reduce total cost of ownership by 25-30% over three-year operational periods. This advantage stems primarily from reduced inventory requirements and simplified maintenance procedures. If you need predictable cost control with reduced capital investment, then sleeve stabilizers offer compelling financial advantages.

Quality Control and Reliability Standards

Quality assurance remains critical for downhole tool performance and operational safety. Both stabilizer types must meet rigorous industry standards while delivering consistent performance.

Manufacturing Standards:

• Material specifications: AISI 4145H and modified grades for enhanced properties
• Heat treatment protocols: Controlled processes ensuring optimal metallurgical properties
• Dimensional tolerances: Precision manufacturing for proper fit and function
• Non-destructive testing: Comprehensive inspection procedures validating structural integrity

WELONG Quality Assurance:

WELONG's twenty-year manufacturing experience encompasses comprehensive quality control processes ensuring reliable performance. The company's quality management system includes:

1. In-process inspection: Continuous monitoring during manufacturing
2. Final inspection: Complete verification before shipment
3. Third-party validation: SGS and DNV inspection services available
4. ISO 9001:2015 certification: Documented quality management compliance
5. API 7-1 certification: Industry-standard compliance verification

Performance testing demonstrates WELONG sleeve stabilizers maintain dimensional accuracy within ±0.002 inches across operational temperature ranges from -20°F to 350°F. If you need certified quality with comprehensive inspection documentation, then WELONG's manufacturing processes provide the reliability assurance required for critical operations.

Delivery and Supply Chain Considerations

Timely delivery and reliable supply chain management directly impact project schedules and operational efficiency. Modern drilling operations require suppliers who can meet demanding delivery requirements while maintaining quality standards.

Logistics Capabilities:

• Multiple transportation options: Sea, air, and railway freight services
• Flexible terms: FOB, CIF, DDP, and DDU arrangements available
• Global distribution: Established shipping networks ensuring timely delivery
• Emergency support: Expedited delivery options for urgent requirements

Supply Chain Advantages:

1. Reduced lead times: Sleeve designs enable faster order fulfillment
2. Lower shipping costs: Consolidated shipments with modular components
3. Flexible scheduling: Accommodate varying project timelines
4. Inventory optimization: Just-in-time delivery reducing storage requirements

WELONG's skilled production team sticks to shipping plans that meet the needs of customer warehouses. Because the company has long-term ties with foreign freight providers, delivery is always safe, no matter where it goes. Working with well-known makers like WELONG will make sure that your project stays on schedule if you need open delivery choices and reliable schedules.

Conclusion

Whether you choose sleeve stabilizers or integral blade stabilizers relies on your practical needs and how much you want to spend. Sleeve stabilizers work great in situations that need to be flexible, keep supplies low, and keep servicing costs low. Their flexible design is very helpful for workers who are in charge of different drilling projects with different hole sizes.

WELONG's sleeve stabilizers work reliably because they use modern materials and manufacturing methods along with tried-and-true design principles. Our thorough quality control processes, flexible shipping choices, and skilled technical help make sure that our products work well in tough drilling settings. In the end, the choice comes down to finding the right balance between operating freedom and performance needs while keeping costs low throughout the lifetime of the tool.

Why Choose WELONG Sleeve Stabilizers for Your Operations

WELONG combines two decades of oilfield manufacturing expertise with innovative sleeve stabilizer technology to deliver superior value for drilling contractors. As a trusted sleeve stabilizer manufacturer, we understand the demanding requirements of modern drilling operations and have developed solutions that address real operational challenges. Our ISO 9001:2015 and API 7-1 certifications demonstrate our commitment to quality excellence, while our comprehensive supply chain capabilities ensure timely delivery worldwide. Contact our technical team at oiltools15@welongpost.com to discuss your specific requirements and discover how WELONG sleeve stabilizers can optimize your drilling operations.
