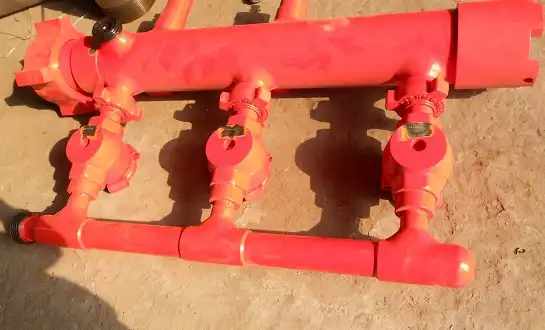

During oilfield cementing activities, the most important part of the wellhead is the "cement head," which controls both the mixing of the cement slurry and the pressure. This important tool links to the top of the casing string and helps control how the cement is placed. It also makes sure that the well stays intact during the whole process. Understanding how the cement head works is very important for procurement managers, drilling engineers, and equipment sellers who need to do bonding safely and reliably.
This all-inclusive guide goes into great depth about cement head functions, types, and technical details that affect people's choices when they buy something. We will look at the product selection factors, installation rules, upkeep habits, and new industry trends that affect today's cementing operations. When professionals know these important things, they can make good buying decisions that speed up the work on projects and make sure that well finishing methods are always reliable.
Understanding the Cement Head: Definition, Function, and Types
Core Functions and Operational Principles
During well finishing activities, the cement head controls the flow of cement mix. It does this as an advanced pressure control device. This tool safely connects to the top part of the case string and gives several places for sealing lines, tools to check pressure, and safety systems to join. During the process of sealing, the tool keeps the pressure steady and lets the cement slurry be injected in a controlled way into the space between the cap and the wall of the well.
Today's sealing heads have new features that make them safer and more efficient. The lever-type signaling system gives instant information about the rubber plug's moving through the device. This lets users keep an eye on how the bonding process is going with precision. This sight helps avoid common problems in bonding, such as setting too early or incomplete displacement, which could damage the structure of the well.
Material Construction and Safety Standards
Quality grouting heads are made of AISI 4145H alloy steel, which holds up well in very tough conditions deep in the hole and in high-pressure settings. This choice of material makes sure that it stays strong during long periods of use and under forces up to 10,000 PSI. The strong build meets the standards of API 5CT and is able to hold different types of steel, like J55, L80, N80, and P110, to meet unique needs for housing.
The device is simply designed with multiple seals that keep fluids from moving and maintain pressure. These design features make a solid barrier system that saves people and tools and makes sure that cement placement operations are successful.
Available Configurations and Size Options
Cementing heads are made in different ways to work with different well conditions and operating needs. Standard models take care of normal heavy mud types, and thick fluid systems handle difficult drilling settings. When a project has specific needs, such as requiring special features or different sizes, custom designs are the solution.
To fit different wellbore shapes and sealing plans, sizes from 5½ inches to 13⅜ inches are offered. This wide range of sizes makes sure that most drilling uses can use them. It also makes sure that well designs that aren't normal and unique finishing needs can be met.
Comparing Cement Heads: Selecting the Best Option for Your Oilfield Needs
Technical Specifications and Performance Criteria
Choosing the right sealing head needs a close look at how the technical specs line up with the needs of the job. The most important thing is the pressure number because the device has to stand up to the highest pressures expected during sealing operations. The pressure working powers of up to 10,000 PSI can handle most normal and abnormal drilling tasks while still being safe.
Casing compatibility makes sure that the gluing head and casing string fit and close correctly with each other. The link mechanism has to match the case thread specs and make sure that it can lock even when the pressure changes. Also, the device's flow capacity needs to be in line with the planned pumping rates and amounts of cement so that nothing gets stuck during the process.
Double Plug vs Single Plug Systems
In complicated cementing jobs, the double plug cement head setup works a lot better than single plug ones. With this design, you can use both upper and lower rubber plugs at the same time. This allows for more accurate cement placement and better control of the movement. The extra body length gives more room to store and use plugs during operations.
These better skills lead to more efficient bonding and less overall complexity in operations. Operators can get better regional separation and more uniform cement quality while keeping better control over the whole bonding process. The dual plug method is especially helpful for multi-stage filling operations and difficult well conditions that need exact fluid placement.
Cost-Effective Procurement Strategies
Good buying methods find a balance between the cost of tools up front and its worth and dependability over time. Deals for buying in bulk often save a lot of money and make sure that the equipment is always available for several tasks. But to avoid costly operating fails and safety issues, buying choices should focus on quality and dependability instead of the lowest upfront cost.
Long-term relationships with qualified makers make it possible to get technical help, insurance coverage, and customization services that make the total project more valuable. These relationships also make it easier to quickly meet pressing equipment needs and learn about new technologies that could be useful for future operations.
Installation and Maintenance of Cement Heads: Best Practices for Longevity and Safety
Pre-Installation Requirements and Safety Protocols
Before placement, a full check should be done to make sure the equipment is in good shape and will work with the rest of the system. Before fitting, technicians need to make sure that all closing surfaces are not damaged, that the threads are okay, and that the pressure testing approval is valid. These early checks make sure that the equipment can be installed correctly and will work well.
During installation, safety rules say that the right lifting tools and trained people are needed. You need to be very careful when using the gluing head because of its weight and pressure grade. If you aren't, you could hurt yourself or damage the equipment. Installation teams need to follow the rules and keep the lines of communication open at all times in order to be safe and effective.
Routine Maintenance and Inspection Procedures
Regular repair plans help sealing heads last longer and keep them working well. Inspection methods center on how well the closing element works, how much the threads have worn down, and how well the signaling system works. These regular checks find possible problems before they affect activities or make the workplace unsafe.
Maintenance activities include pressure checking to make sure parts are still working properly, replacing parts that are worn out, and adding lubricant to parts that move. Keeping good records of repair work helps you keep track of equipment and see trends that might show the need for better designs or changes in how the equipment is used.
Troubleshooting Common Issues
Sealing fails, signal errors, and pressure control problems are some of the common issues with bonding heads. If these signs are noticed early, quick action can be taken to keep things running smoothly and safely. Often, experienced techs can fix small problems by changing parts or making adjustments instead of replacing the whole machine.
Correct handling, storing, and operating processes are preventive steps that help people avoid a lot of common problems. Training programs make sure that employees know how to properly use equipment and are aware of its limits. This helps keep everyone safe and extends the life of the equipment.
Procurement Insights: How to Purchase Cement Heads for Oilfield Applications
Supplier Evaluation and Certification Requirements
Suppliers you can trust use quality control systems and industry certifications that show they are dedicated to making great products. ISO 9001:2015 certification shows that you follow global standards for quality, and API licenses show that you follow rules in the oil industry. These accolades give buyers confidence that the Cement Heads meet strict safety and performance standards.
When you evaluate a supplier, you should look at their ability to make products, quality control methods, and expert support services. Suppliers with a lot of experience provide a lot of product information, help with application building, and quick customer service that makes it easier for people to finish their projects.
Market Pricing and Lead Time Considerations
Current market factors affect the prices and supply of sealing heads in different areas and for different uses. Standard setups usually have faster lead times and good prices, but unique designs need longer manufacturing plans and more money. Planning buying tasks ahead of time helps get the best prices and makes sure that stuff is available when it's needed.
Delivery plans and price trends are affected by economic factors like the cost of materials and the ability to make goods in the United States and around the world. Keeping an eye on these things helps procurement workers predict changes in the market so they can change their buying strategies.
Warranty and Technical Support Services
Comprehensive guarantee coverage guards against flaws in the factory and fails that happen too soon. It also gives you a way to deal with quality problems. Long-term risk is lowered and project economics are better by extended guarantee choices, which may make higher upfront costs reasonable. Technical support services help people with questions about apps and problems that come up when using tools.
Support after a sale includes getting extra parts, repair services, and expert advice that keeps the equipment working during its lifetime. These services are especially useful for activities that are far away, where there may not be a lot of professional knowledge available nearby.
Industry Trends and Future Outlook for Cement Heads in Oilfield Cementing
Technological Advancements and Smart Monitoring
These days, modern sealing heads are using more and more computerized tracking devices that give real-time information about pressure, temperature, and flow conditions. These smart technologies make it possible to watch and handle systems from afar, which improves safety and efficiency. When digital oilfield tools are used, they make detailed data records that help with efficiency and following the rules.
New materials and ways of making things are still improving the performance and trustworthiness of bonding heads. Better steel gives you more service life and resistance to rust, and accurate production makes sure that the quality is always the same and the closing performance is better.
Regulatory Compliance and Safety Standards
As safety rules change, it becomes necessary to continuously raise the standards for how sealing heads are designed and how well they must work. Better material specs, tougher pressure test standards, and tighter quality control make sure that the equipment is reliable and the workers are safe. Following these rules is necessary for the tools to be accepted and the job to be approved.
Environmental concerns also play a role in the development of new products, as people look for tools that are better for the earth and help keep businesses sustainable. These things make it possible for new designs to be made that meet both efficiency standards and environmental concerns.
Conclusion
Cement heads are very important for oilfield cementing operations because they allow for controlled cement input and pressure management during the whole well finishing process. When procurement experts understand the technical specs, practical requirements, and selection criteria, they can make choices that help projects succeed and keep operations safe. The double plug design offers better performance while keeping the ease of use and dependability that users want.
When you buy something, you can get the best prices, reliable suppliers, and long-term help. Successful buying plans take technical needs into account and find a balance between these factors. New technologies are always coming out in the industry. By keeping up with new trends and rules, you can be sure that you always choose the right tools. Working with skilled makers like WELONG gives you access to good products, technical knowledge, and all-around support services that help bonding activities around the world go well.
Frequently Asked Questions
Q1: What is the difference between a cement head and a cement retainer?
A: A cement head is a part of the well that works at the surface and controls how cement is injected and how pressure is managed. At the same time, a cement retainer works downhole as a short-term barrier that separates certain areas during cementing operations. The cement head makes it easier to pump the cement, and the stopper stops the cement from flowing into parts of the wellbore where it isn't needed.
Q2: How do I determine which cement head size is suitable for my casing program?
A: The casing's outer diameter and thread specs will tell you what size cement head you need. Check your casing program to find out the size of the surface casing, then choose a cement head with connections that will work and a pressure grade that will work. Think about expected bonding pressures, flow rates, and how you'll need to use it when you make your choice.
Q3: What maintenance procedures ensure the longest service life for cementing heads?
A: As part of regular upkeep, sealing surfaces are checked for wear or damage, thread condition is verified, pressure stability is tested, and moving parts are lubricated. Follow the manufacturer's advice on when to replace worn-out parts. Clean your equipment well after every use, and store it where you can control the temperature and humidity. Record all repair work so you can keep an eye on how well things are working and plan ahead for routine checks.
WELONG: Your Trusted Cement Head Manufacturer and Supplier
WELONG's specialty is making high-quality sealing heads that meet the needs of drilling activities around the world. We offer basic setups, versions for heavy mud, and fully personalized options made to meet the needs of particular projects. Having made oilfield equipment for more than twenty years, we know how important it is for cementing equipment to work properly so that well integrity and safety are maintained.
Our gluing heads are made of strong AISI 4145H alloy steel and can handle working pressure levels of up to 10,000 PSI. Our goods come in sizes from 5-1/2" to 13-3/8," so they can be used for a wide range of casing projects and operating needs. Each unit has a proven double plug design with lever-type signs that show clearly when sealing operations are working.
Quality security is a very important part of our manufacturing process. The ISO 9001:2015 and API 7-1 certificates show that we are committed to meeting quality standards around the world. Our thorough quality checks make sure that all products, no matter the production batch, work well and can be counted on. Before a product leaves the warehouse, we make sure it can handle pressure, lock properly, and work with strict tests that have to pass.
As your dedicated cement head supplier, we provide comprehensive technical support, competitive pricing, and flexible delivery schedules that accommodate urgent project requirements. Our experienced engineering team offers application consultation and customization services that ensure optimal equipment selection for specific operational conditions. Contact us at oiltools15@welongpost.com to discuss your cementing head requirements and discover how our solutions can enhance your oilfield operations.
