What Is the Difference Between Drill Pipe and Drill Collar?

In oil and gas drilling, drill tubes and drill caps are used for different things. The main change is what they do and where they go in the drill string. Most of the drill string is made up of drill pipe, which moves drilling mud and transfers spinning force from tools on the surface to the assembly at the bottom of the hole. On the other hand, drill collars are heavy tube parts that are placed directly above the drill bit and are meant to add the weight on bit (WOB) that is needed for effective entry. While drill pipe focuses on being flexible and improving blood flow, drill collars focus on concentrating weight and controlling direction in the wellbore.

Understanding Drill Pipe: The Backbone of Drilling Operations

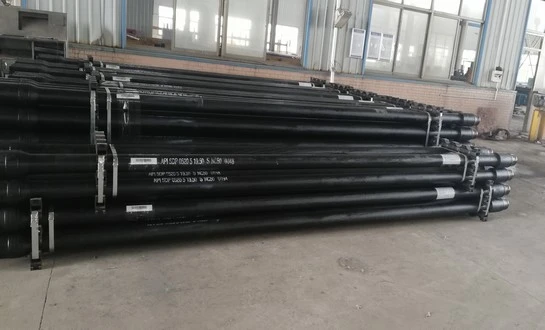

Drill pipe, which makes up 80–90% of the total length of the drill string, is the workhorse of any drilling activity. When you connect these tube-like pieces end to end, you get a straight line from the rotating table to the bottom hole assembly. Each joint is usually 30 feet long and has threaded links called tool joints that make it easy to put together and take apart.

The inside width of the drill pipe lets drilling mud flow down, lifting rock chips to the top while keeping the wellbore stable. Modern designs for drill pipes use advanced metals and manufacturing methods to make them strong enough to survive the tough conditions found in underwater and extended-reach drilling.

Key drill pipe specifications include:

1. Wall thickness ranging from 0.280 to 0.500 inches
2. Tensile strength ratings from 100,000 to 150,000 psi
3. Internal pressure ratings up to 20,000 psi
4. Temperature resistance up to 350°F

If you need maximum circulation efficiency and extended reach capabilities, high-grade drill pipe with premium connections becomes essential for your drilling program.

Drill Collar Fundamentals: Weight and Stability Providers

Drill collars are tube parts with thick walls that make up the middle part of the drill string. They go between the drill pipe and the drill bit. These heavyweight pieces are usually 30 feet long and have walls that are much thicker than drill pipe. This makes each joint weigh between 1,500 and 3,000 pounds. The main job of drill collars is to keep the drill string balanced while adding weight to the bit. This weight concentration keeps the upper parts of the drill string from breaking and makes sure that the drilling works the same way in all rocks.

Essential drill collar characteristics:

1. Outer diameter ranging from 4.75 to 11 inches
2. Weight per foot from 147 to 274 pounds
3. Internal diameter optimized for mud flow
4. Enhanced wear resistance through specialized coatings

If you need precise weight control and directional drilling capabilities, spiral drill collars with optimal hydraulic design deliver superior performance in challenging drilling environments.

Core Differences: Function and Design Comparison

The fundamental distinctions between drill pipe and drill collars extend beyond simple weight variations. These differences impact drilling efficiency, operational costs, and overall project success.

Three core differences:

1. Weight Distribution: Drill pipe maintains neutral buoyancy in drilling mud, while drill collars provide concentrated weight for effective bit penetration
2. Wall Thickness: Drill pipe features thin walls optimizing internal flow area, whereas drill collars employ thick walls maximizing weight per foot
3. Positioning Strategy: Drill pipe occupies the upper drill string sections, while drill collars concentrate in the bottom hole assembly

Laboratory testing reveals that standard 5-inch drill pipe weighs approximately 19.5 pounds per foot, while comparable 6.5-inch drill collars weigh 147 pounds per foot - a seven-fold difference that significantly impacts drilling dynamics.

The material composition also varies substantially. Drill pipe typically utilizes Grade E75 or X95 steel for optimal strength-to-weight ratios, while drill collars employ specialized alloys designed for maximum density and wear resistance.

If you need cost-effective drilling solutions for shallow wells, conventional drill pipe configurations provide adequate performance. However, challenging formations requiring enhanced weight on bit demand premium drill collar assemblies.

Material and Manufacturing: Engineering Excellence

To meet API guidelines and industry standards, both drill pipe and drill collars are made using strict methods. During the material selection process, things like the qualities of the rock, the drilling fluid, and the needs of the operation are taken into account.

Achieving the best mix between strength, flexibility, and weight is very important when making drill pipes. Newer methods of heat treatment make things more resistant to wear while keeping the right rotational qualities. Some quality control methods are laser screening, magnetic particle tests, and checking the size of the product.

When making drill collars, the goal is to get the highest density while also making sure there is enough internal width for mud to flow. Using specialized cutting methods, exact specs are made that are needed for the correct building of the drill string. A lot of manufacturers use tungsten carbide plugs or hardbanding materials to make their products last longer.

Manufacturing quality indicators:

1. Dimensional accuracy within ±0.005 inches
2. Surface finish meeting Ra 125 specifications
3. Thread compound compatibility verification
4. Non-destructive testing certification

If you need reliable performance in corrosive environments, premium drill pipe with specialized coatings provides enhanced protection against hydrogen sulfide and carbon dioxide exposure.

Operational Considerations: Performance in Practice

Real-world drilling operations demand careful consideration of drill pipe and drill collar selection based on specific well requirements. Field data demonstrates that proper component selection directly impacts drilling efficiency and operational costs.

Recent industry studies indicate that optimized drill collar placement can reduce drilling time by 15-20% while maintaining wellbore quality. Conversely, inadequate drill pipe selection may result in fatigue failures, costly fishing operations, and extended non-productive time.

The drill string design process involves complex calculations considering factors such as:

• Formation hardness and abrasiveness
• Well trajectory and directional requirements
• Mud weight and circulation parameters
• Surface equipment limitations

Drill pipe inspection programs play a crucial role in maintaining operational safety. Regular electromagnetic inspection identifies potential fatigue cracks before catastrophic failure occurs. Industry statistics show that proactive inspection reduces drill pipe failures by approximately 60%.

If you need extended drilling campaigns in harsh environments, implementing comprehensive inspection protocols ensures maximum equipment reliability and operational continuity.

Cost Analysis: Economic Impact on Drilling Projects

The economic implications of drill pipe and drill collar selection extend far beyond initial purchase prices. Total cost of ownership calculations must consider factors including service life, maintenance requirements, and operational efficiency impacts.

Drill pipe typically represents 40-50% of drill string investment costs but requires more frequent replacement due to fatigue and wear. Premium grades command higher initial prices but deliver extended service life in demanding applications.

Drill collars involve higher per-foot costs but demonstrate exceptional durability. Quality drill collars may operate for multiple drilling campaigns with minimal maintenance, providing superior long-term value.

Cost comparison factors:

1. Initial procurement costs
2. Transportation and handling expenses
3. Inspection and maintenance requirements
4. Service life expectancy
5. Disposal and recycling value

Field data indicates that premium drill pipe with advanced connections reduces total drilling costs by 8-12% compared to standard alternatives. This improvement results from reduced connection failures, enhanced drilling performance, and extended service intervals.

If you need budget optimization for multiple drilling projects, establishing long-term supplier relationships enables volume pricing advantages and improved service support.

WELONG Drill Pipe Advantages: Quality and Reliability Excellence

China WELONG is a well-known company that makes drill pipes. They have been making drilling tools for over 20 years. Diverse drilling needs can be met by our wide range of products, which are all priced affordably and meet the highest quality standards.

The best things about WELONG Drill Pipe are:

• API SPEC 5DP Compliance: Full approval makes sure that the equipment works with international drilling rules and standards.
• Size All Together Range: Available in sizes ranging from 2 3/8" to 6 5/8", to fit a range of drilling needs and rig requirements.
• Choices of Multiple Grades: The best strengths for different types of formations can be found in grades E75, X95, G105, and S135.
• Advanced Coating Systems: TK34 and TK34P coats offer better protection to rust and longer service life in tough conditions.
• Premium Hardbanding: The Arnco 100XT and 300XT products protect against wear and tear while keeping the purity of the weld.
• Tough Quality Control: Private checking methods make sure that performance and dependability stay the same throughout a product's lifecycle.
• On-time delivery Commitment: Skilled production teams stick to strict production plans to make sure that products get to customer stores on time.

Conclusion

Knowing the differences between drill pipe and drill collars helps you make smart choices about drilling operations. While drill pipe provides a way for fluids to flow and for force to be transferred, drill collars put the necessary weight on the bit to make entry work. Both parts need to be carefully chosen based on the properties of the rock, the design of the well, and the operating goals. Manufacturers of high quality, like WELONG, offer complete product lines that meet a wide range of drilling needs at reasonable prices and with excellent customer service. When you choose the right parts and keep up with your repair, you can be sure that your drills will work well and cost-effectively in a wide range of situations.

Choose WELONG as Your Trusted Drill Pipe Supplier

WELONG delivers exceptional drill pipe solutions combining advanced manufacturing capabilities with comprehensive customer support. Our ISO 9001-2015 and API 7-1 certifications demonstrate unwavering commitment to quality excellence and industry leadership. Experience the WELONG advantage through our customized services, rigorous quality control processes, and reliable delivery performance. Contact our technical team at oiltools15@welongpost.com to discuss your specific drilling requirements and discover how our premium drill pipes for sale enhance operational efficiency while controlling costs.

References

1. American Petroleum Institute. "Specification for Drill Pipe - API SPEC 5DP." 2020 Edition, Washington, DC.
2. Mitchell, R.F. and Miska, S.Z. "Fundamentals of Drilling Engineering." Society of Petroleum Engineers Textbook Series, 2011.
3. Bourgoyne Jr., A.T., Millheim, K.K., Chenevert, M.E., and Young Jr., F.S. "Applied Drilling Engineering." Society of Petroleum Engineers, 1991.
4. International Association of Drilling Contractors. "Drill String Design and Operations Manual." 2019 Revision, Houston, Texas.
5. Wilson, A.J. "Drill Pipe and Drill Collar Failure Analysis in Extended Reach Drilling Operations." Journal of Petroleum Technology, Vol. 73, No. 8, 2021.
6. Rahman, S.S. and Chilingarian, G.V. "Drilling and Completion Engineering: Drilling String Components and Performance Analysis." Developments in Petroleum Science Series, 2018.
